ControlLogix w/1769-ADN DeviceNet Example Ladder Program

8-9

3. Click Next > to display the EDS Wizard Task screen (

Figure 8.12

).

Select Register an EDS file(s) and click Next >.

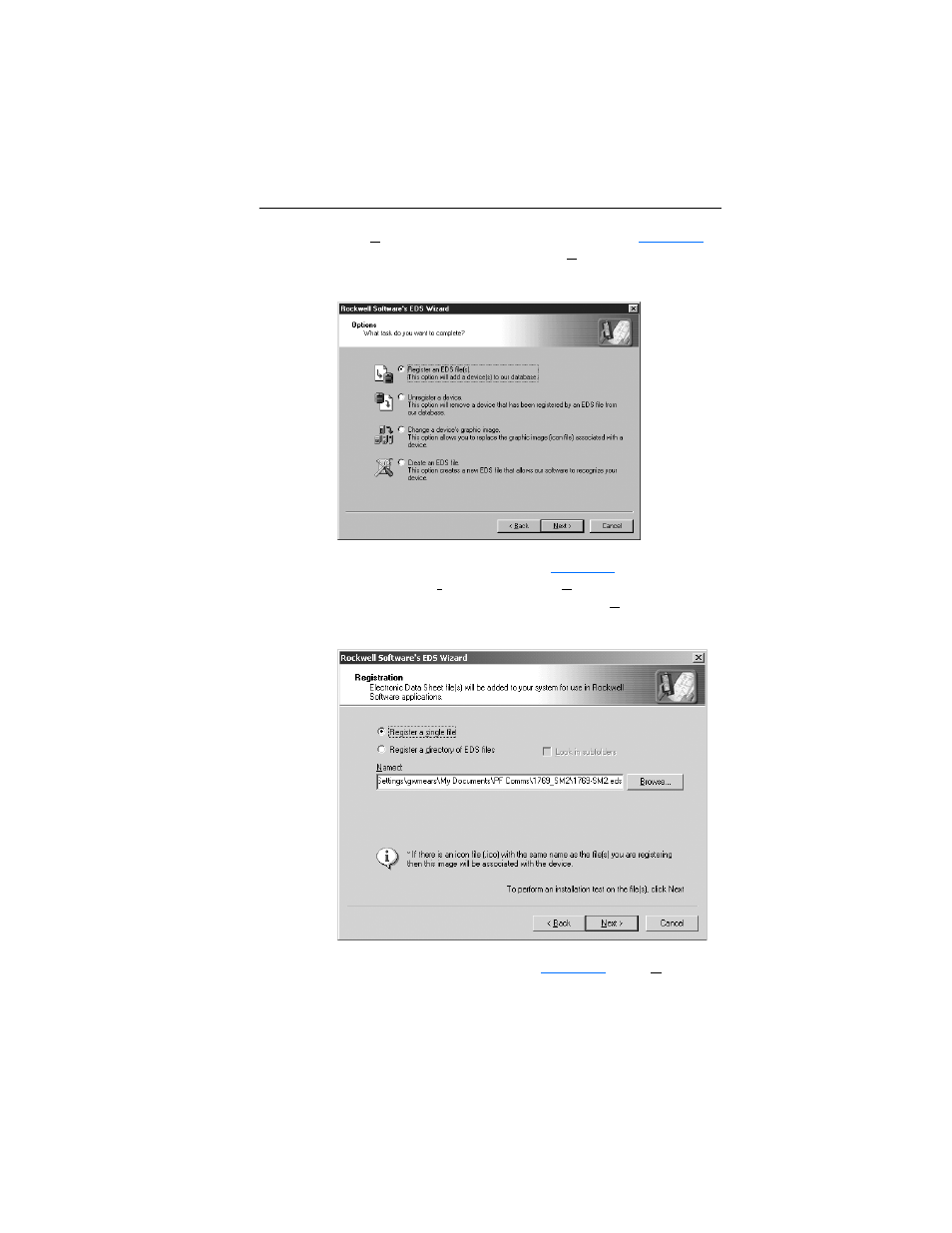

Figure 8.12 EDS Wizard Task Screen

4. The EDS Wizard Registration screen (

Figure 8.13

) will appear.

Select Register a single file and use the Browse command button to
browse to the EDS file on your hard drive. Click Next >.

Figure 8.13 EDS Wizard Registration Screen

5. The EDS file is installed and tested (

Figure 8.14

). Click Next >.
