Rockwell Automation 1769-SM2 Compact I/O DSI/Modbus Communication Module User Manual
Page 137
ControlLogix w/1769-ADN DeviceNet Example Ladder Program
8-7
Parameters can be adjusted by double-clicking on the desired
parameter. Default settings are used for this ladder example. Click
OK to complete the 1769-SM2 configuration.
6. Select the I/O Summary tab (
). The 1769-ADN uses 4
Input bytes and the 1769-SM2 module has been configured for 14
bytes (7 words) of Input and Output data. The I/O Summary below is
required for the example ladder program.

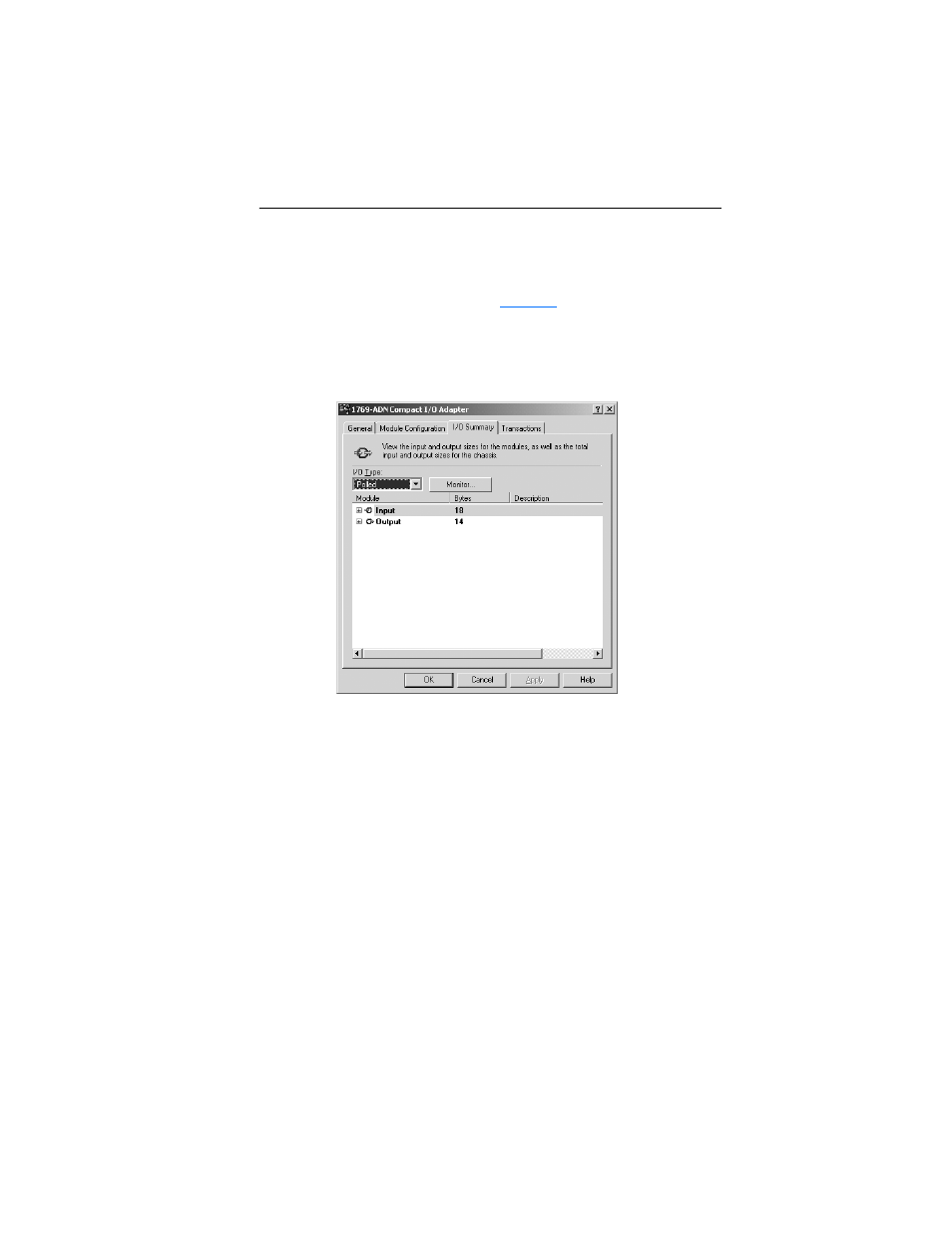

Figure 8.9 1769-ADN Adapter I/O Summary Tab Screen
Click OK to complete the configuration.
