ControlLogix w/1769-ADN DeviceNet Example Ladder Program

8-5

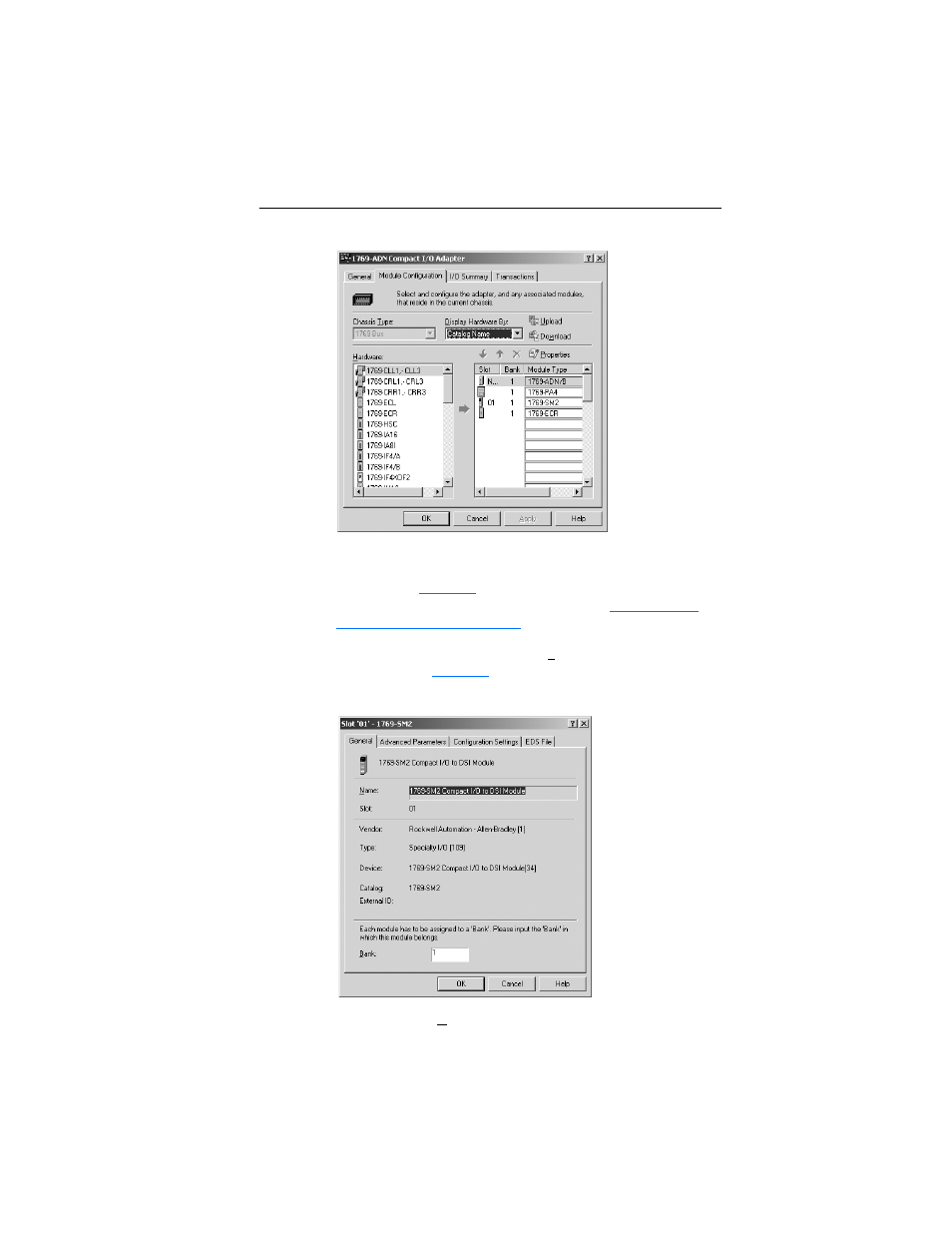

Figure 8.5 1769-ADN Adapter Module Configuration Tab Screen

The EDS file for the 1769-SM2 module is needed to configure the
remote 1769-ADN DeviceNet system. If the 1769-SM2 is not listed
as a selection (

Figure 8.5

), the EDS file will need to be downloaded

from the Internet. For more information, refer to

Registering the

1769-SM2 EDS File on page 8-8

.

3. Select the 1769-SM2 and click on the Properties command button. A

screen similar to

Figure 8.6

will appear.

Figure 8.6 1769-SM2 Module Properties Screen

Enter a “1” in the Bank field, and click OK.
