Publication 1762-UM001G-EN-P - March 2011
Communication Connections 4-19
DeviceNet Communications
You can connect a MicroLogix 1200 to a DeviceNet network using the
DeviceNet Interface (DNI), catalog number 1761-NET-DNI. For additional
information on using the DNI, refer to the DeviceNet Interface User Manual,

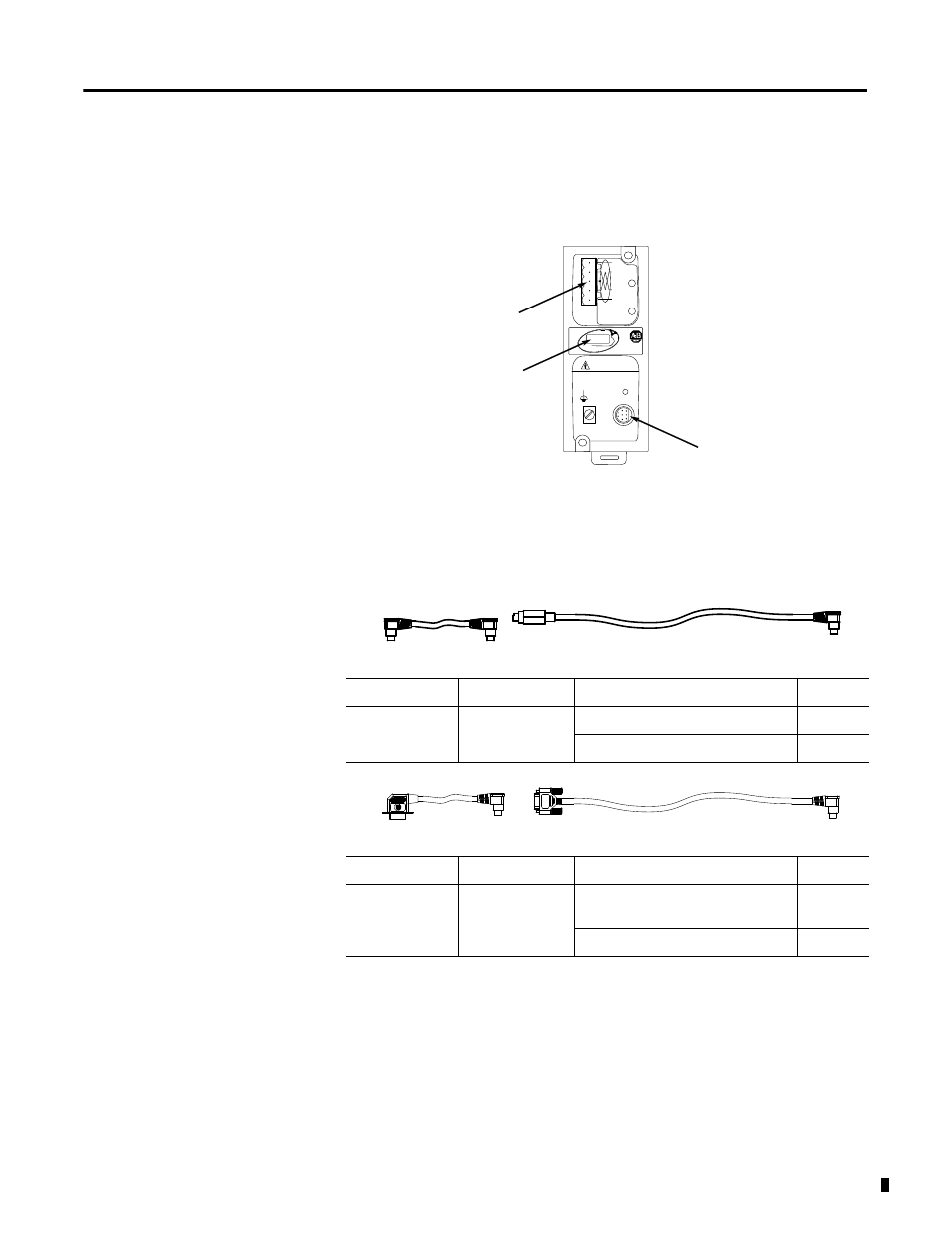

publication 1761-6.5. The following figure shows the external wiring
connections of the DNI.
Cable Selection Guide
(1)
(1) Series C (or higher) cables are required.
V–
CAN_L
SHIELD
CAN_H
V+
NET
MOD
NODE
DANGER
GND
TX/RX
DeviceNet Node (Port 1)
(Replacement connector
part no. 1761-RPL-RT00)
Use this write-on
area to mark the
DeviceNet node
address.
RS-232 (Port 2)
1761-CBL-AM00
1761-CBL-HM02
Cable
Length
Connections from
to DNI
1761-CBL-AM00
1761-CBL-HM02
45 cm (17.7 in)
2m (6.5 ft)
MicroLogix 1000
port 2
MicroLogix 1200
port 2
1761-CBL-AP00
1761-CBL-PM02
(2)
Cable
Length
Connections from
to DNI
1761-CBL-AP00
1761-CBL-PM02
45 cm (17.7 in)
2m (6.5 ft)
SLC 5/03 or SLC 5/04 processors,
channel 0
port 2
PC COM port
port 2
