1 Publication 1762-UM001G-EN-P - March 2011
Chapter
1
Hardware Overview
Hardware Features The Bulletin 1762, MicroLogix 1200 programmable controller contains a
power supply, input and output circuits, and a processor. The controller is
available in 24 I/O and 40 I/O configurations.

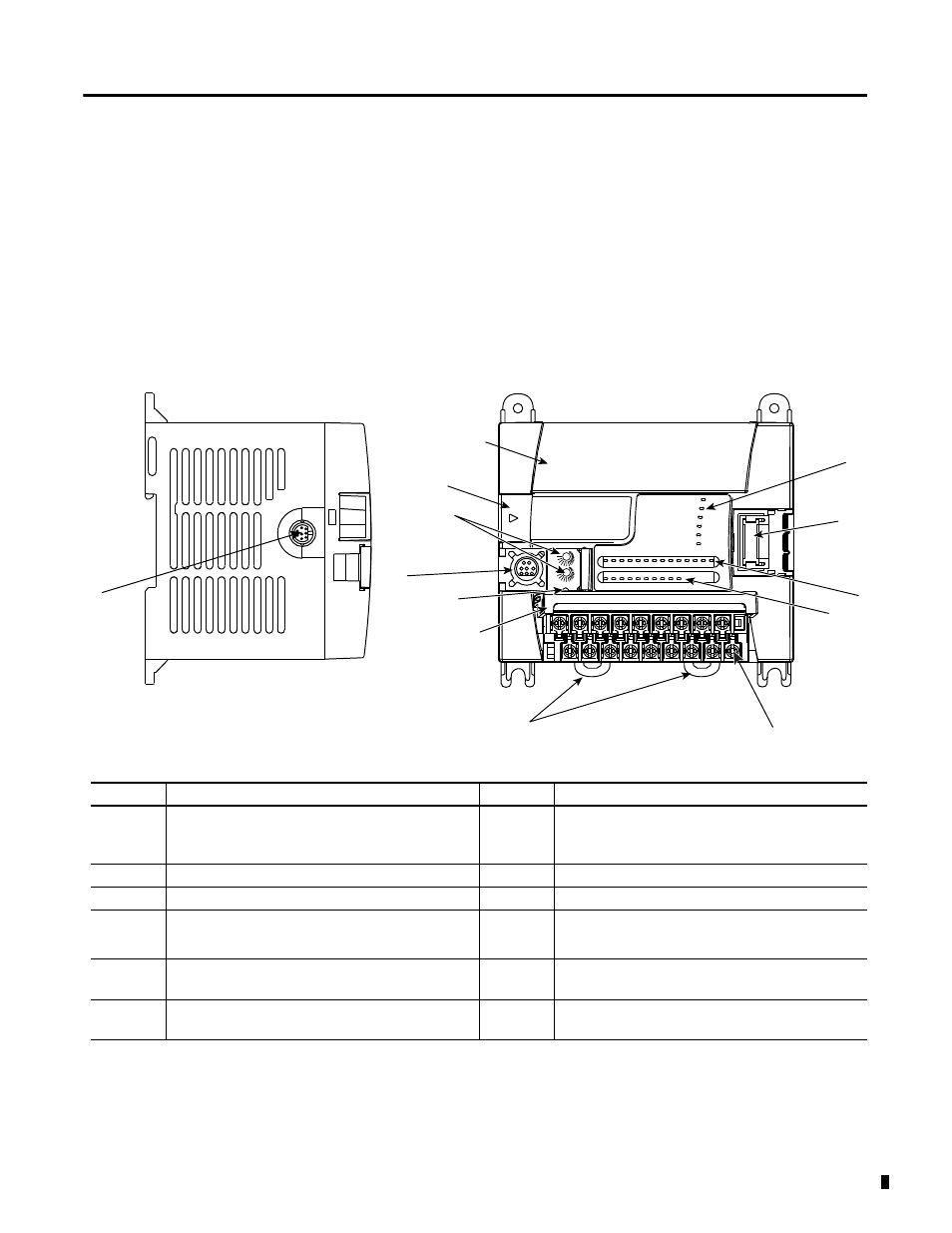

Figure 1.1 Hardware Features of the Controller
Table 1.1 Hardware Features
Feature Description Feature Description
1 Terminal Blocks
(Removable Terminal Blocks on 40-point controllers
only.) 7 Terminal Doors and Labels
2 Bus Connector Interface to Expansion I/O 8 Trim Pots
3 Input LEDs 9 Communications Toggle Push Button
4 Output LEDs 10
Memory Module Port Cover
(1)
-or-
Memory Module and/or Real-Time Clock
(2)
5 Communication Port/
Channel 0 11 DIN Rail Latches
6 Status LEDs 12 Programmer/HMI Port
(Equipped with 1762-LxxxxxR controllers only)
(1) Shipped with controller.
(2) Optional equipment.
12
1
2
3
4
5
6
7
7
9
8
10
11
COM
0
1
Side View Top View
