Rockwell Automation 1762-Lxxxx MicroLogix 1200 Programmable Controllers User Manual
Page 80
Publication 1762-UM001G-EN-P - March 2011

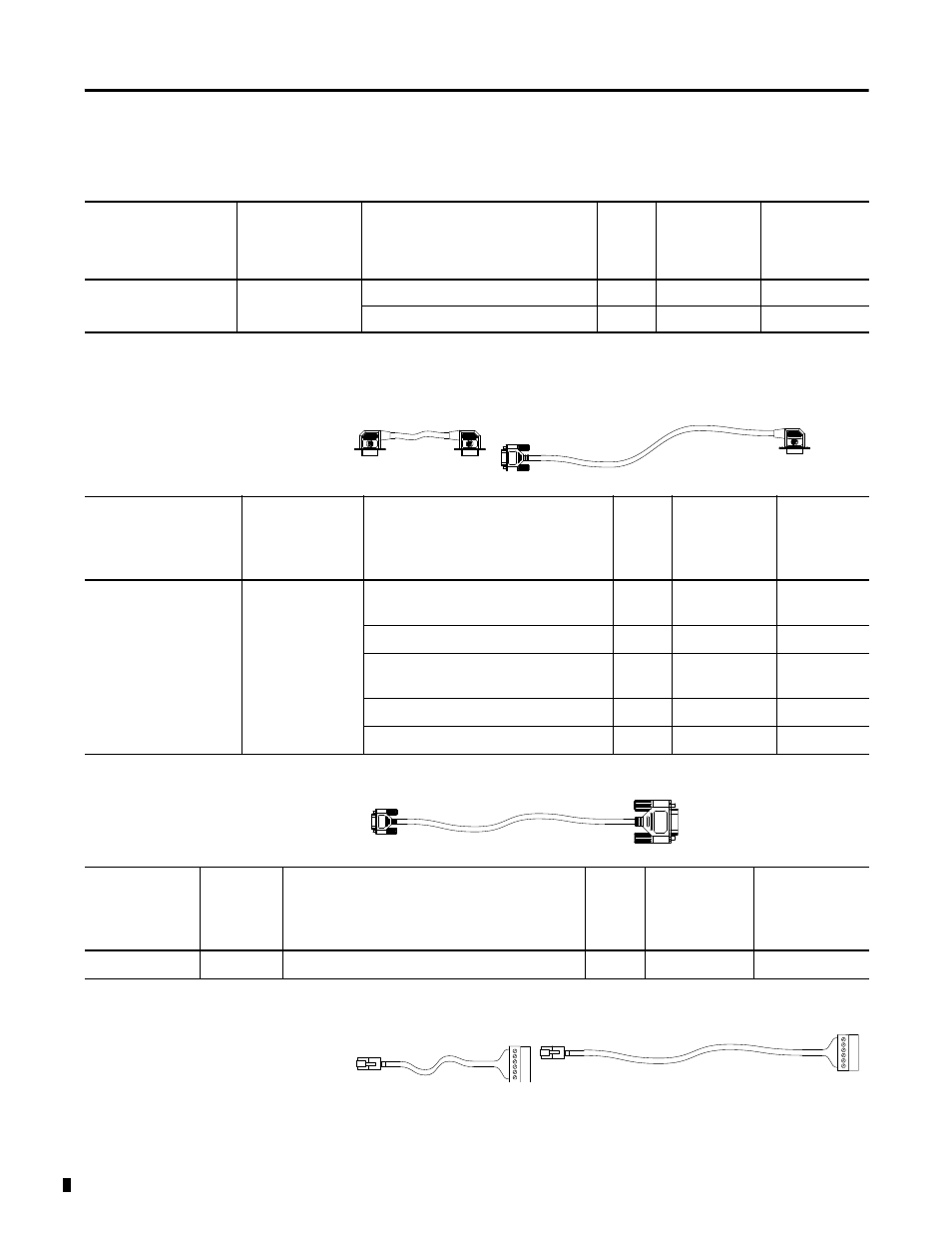

4-14 Communication Connections
Table 4.6
Cable
Length
Connections from
to AIC+ External
Power Supply
Required
(2)
Power
Selection
Switch
Settings
1761-CBL-AM00
(1)
1761-CBL-HM02
45 cm (17.7 in)
2m (6.5 ft)
MicroLogix 1000, 1200, or 1500
port 2
no
cable
to port 2 on another AIC+
port 2
yes
external
(1) Series C or higher cables are required.
(2) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
1761-CBL-AC00
1747-CP3
Cable
Length
Connections from
to AIC+ External
Power Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1747-CP3
1761-CBL-AC00
(1)
3m (9.8 ft)
45 cm (17.7 in)
SLC 5/03 or SLC 5/04 processor, channel
0
port 1
yes
external
PC COM port
port 1
yes
external
PanelView 550 through NULL modem
adapter
port 1
yes
external
DTAM Plus / DTAM Micro
port 1
yes
external
Port 1 on another AIC+
port 1
yes
external
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
user-supplied cable
Cable
Length
Connections from
to AIC+ External
Power Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
straight 9-25 pin
—
modem or other communication device
port 1
yes
external
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
1761-CBL-AS03
1761-CBL-AS09
