Page 31: Din rail mounting -17

Publication 1762-UM001G-EN-P - March 2011
Install Your Controller 2-17

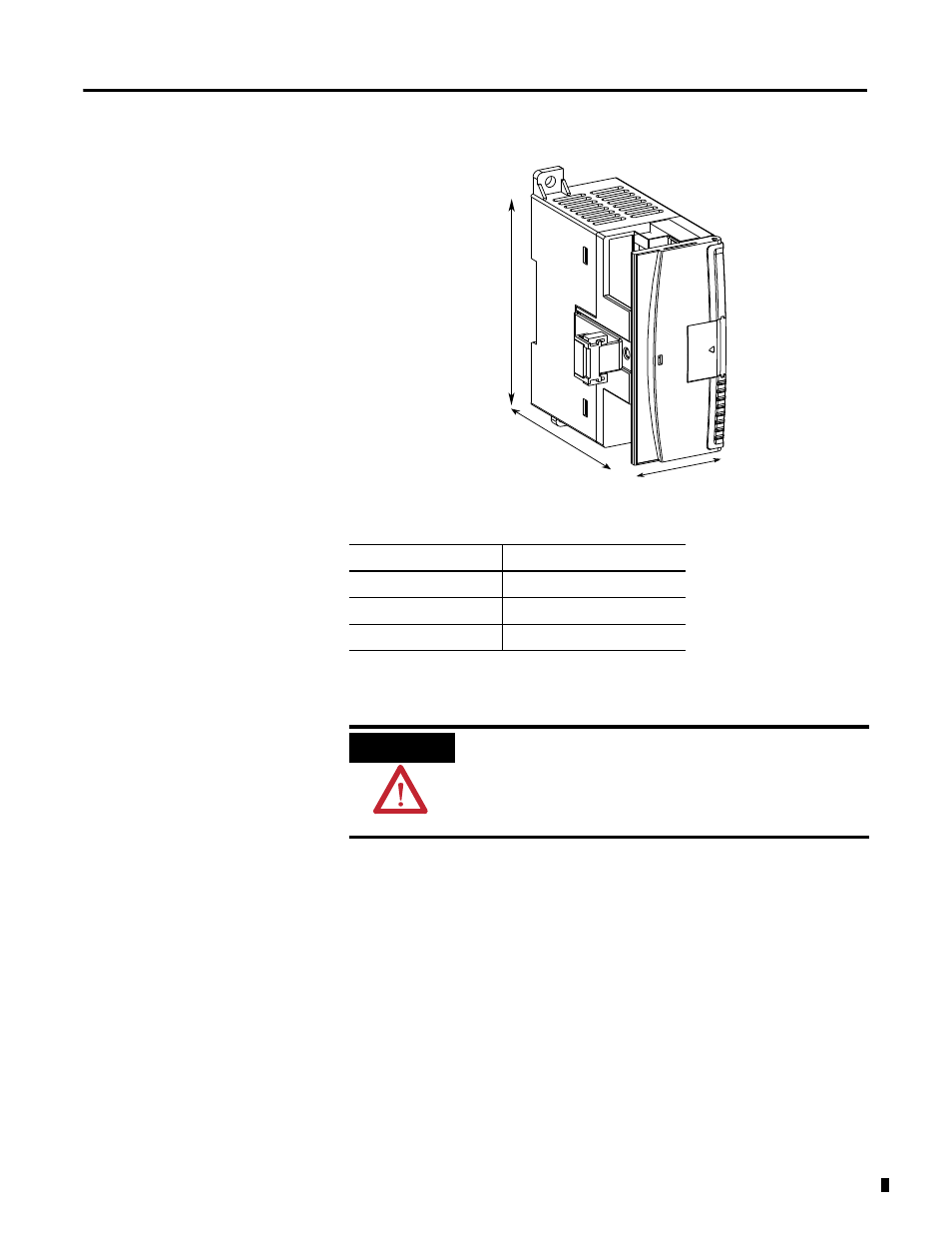

1762 Expansion I/O
Dimensions
Mount 1762
Expansion I/O
DIN Rail Mounting
The module can be mounted using the following DIN rails:
•
35 x 7.5 mm (EN 50 022 - 35 x 7.5), or
•
35 x 15 mm (EN 50 022 - 35 x 15).
Before mounting the module on a DIN rail, close the DIN rail latch. Press the
DIN rail mounting area of the module against the DIN rail. The latch
momentarily opens and locks into place.
Dimension
Expansion I/O Module
A
90 mm (3.5 in.)
B
40 mm (1.57 in.)
C
87 mm (3.43 in.)
A
B
C
ATTENTION
During panel or DIN rail mounting of all devices, be
sure that all debris (metal chips, wire stands) is kept
from falling into the module. Debris that falls into the
module could cause damage when the module is
under power.
