7–2 Troubleshooting
Publication 1336 FORCE–5.18 ––March, 1999
AP Status –– D1
AP Status –– D2
Fault Out –– D4
Ext Fault –– D5
Norm Stop –– D7
Motor Thermo –– D9
Drive Enable –– D11
DP Status –– D3
DP Status –– D6
Primary Status –– D8
Primary Status –– D10
Primary Status –– D12
Redundant Status –– D13
Redundant Status –– D14
Redundant Status –– D15
D3 – Red
Solid = Soft Fault
Blinking = Hard Fault
D6 – Green
Solid = No Fault
Blinking = Warning
D8 – Red
Mimics Primary Plug Channel LED
D10 – Yellow
Blinking 1Hz = Operational
D12 – Green
Mimics Primary Plug Channel LED
D13 – Red
Mimics Redundant Channel LED
D14 – Yellow
Blinking 1 Hz = Operational
D15 – Green
Mimics Redundant Channel LED
J11
J10
J9
J8
Port 1
Port 2

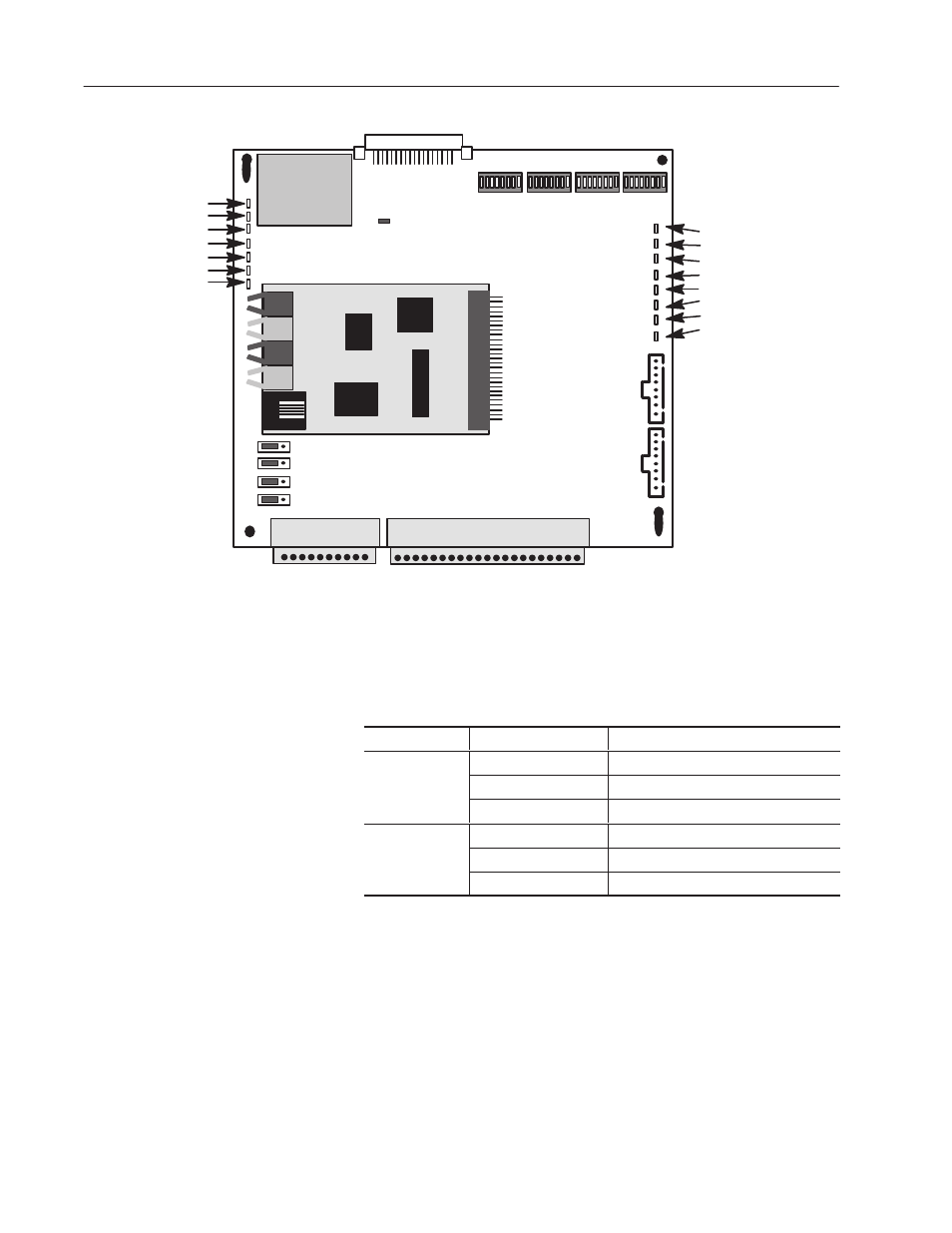

Application Processor (AP) Status D1 and D2
These LEDs reflect the operational status of the application
processor.
LED: State: Function:
D1 (Red) LED on AP hard fault
LED off D6 on or hardware malfunction
LED blinking AP soft fault
D2 (Green) LED on Normal AP operation
LED off D3 on or hardware malfunction
LED blinking AP warning
