Product Overview 1-21
Status Indication Four programmable hard contact outputs are provided as standard. All
auxiliary contacts are programmable for the following states:
• Normal (N.O./N.C.)
• Up-to-Speed (N.O./N.C.)
• Alarm (N.O./N.C.)
• Fault (N.O./N.C.)
• Network Control (N.O./N.C.)
• External Bypass (N.O.)

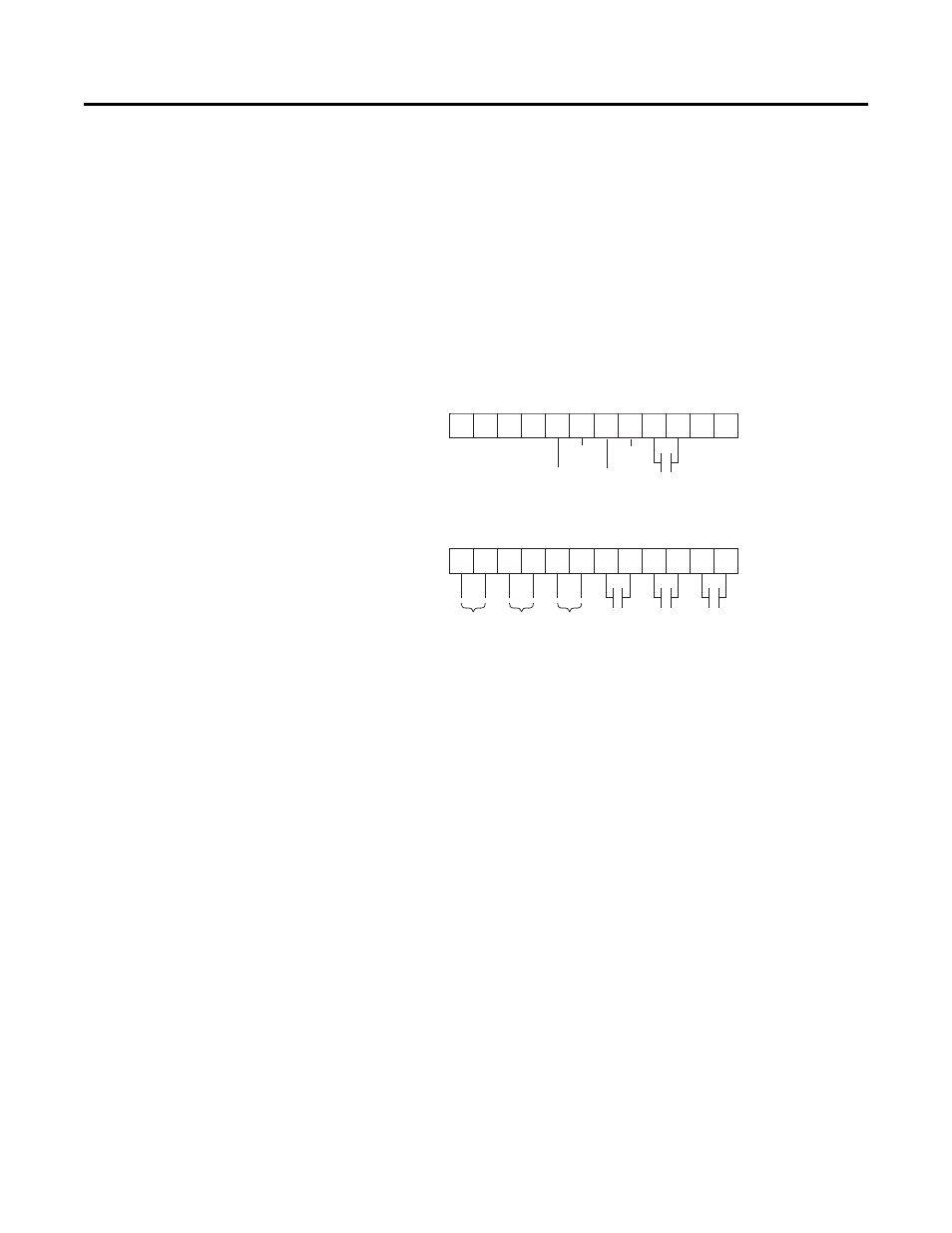

Figure 1.21 Control Terminals
Network inputs can be obtained through proper programming of
Option Input #1 and Option Input #2.
11 12 13 14 15 16 17 18 19 20 21
23 24 25 26 27 28 29 30 31 32 33
22
34
Aux #3 Aux #2 Aux #4
Aux #1
SMC-Flex
Control Terminals
PTC
Input
TACH
Input
Ground
Fault
Stop
Input
Start
Input Opt
Input #2
Opt
Input #1
