Soft Stop
This option can be used in applications that require an extended stop
time. The voltage ramp down time is user-adjustable from
0…120 seconds and is adjusted independently from the starting time.
The load will stop when the output voltage drops to a point where the
load torque is greater than the developed motor torque.

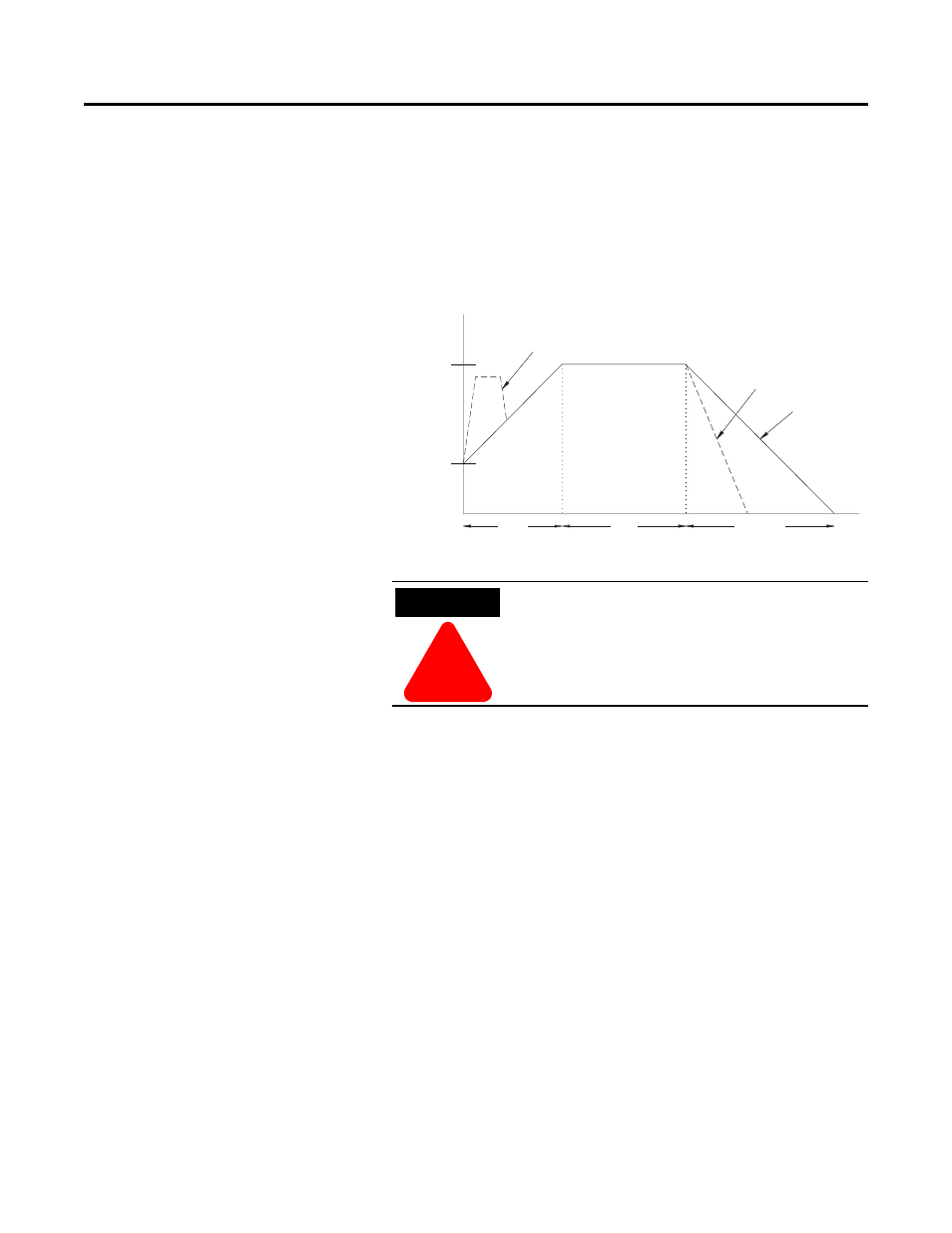

Figure 1.8 Soft Stop
Start
Run
100%
Initial
Torque
Percent
Voltage
Time (seconds)
Selectable Kickstart
Soft Stop
Coast-to-rest
Soft Stop
ATTENTION
!
Soft Stop is not intended to be used as an emergency
stop. Refer to the applicable standards for
emergency stop requirements.
