Chapter
5
Metering
Overview While the SMC-Flex controller operates your motor, it also monitors
several different parameters, providing a full function metering
①
package.

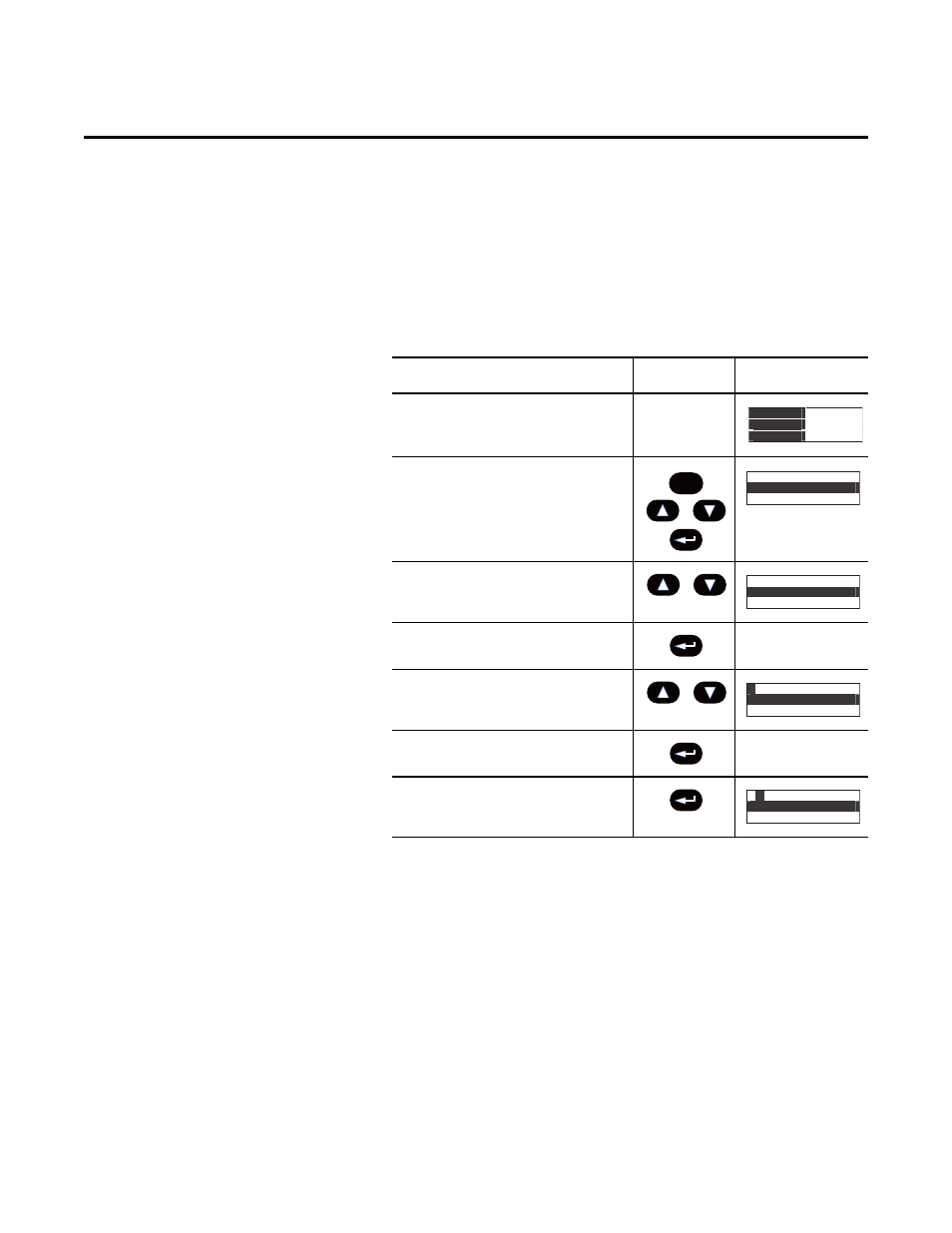

Viewing Metering Data To access the metering information, follow the procedure below.
➀ Refer to Metering on page 1-19 or Figure 4.2 on page 4-3 for details on the metering functions.
Description Action Display
— —
1. Press any of the following keys to
access the Main Menu.
2. Scroll with the Up/Down keys until
the Parameter option is shown.
3. Press the Enter key to select the
Parameter option. —
4. Scroll with the Up/Down keys until
the Monitoring option is displayed.
5. Press the Enter key to access the
Monitoring group. —
6. Press the Enter key to access the
Metering group.
##.# Amps
### Volt
## %MTU
Esc Main Menu
Parameter
Memory Storage
Main Menu
Parameter
Memory Storage
G P : File
Monitoring
Set Up
F
F P : Group
Metering
G
