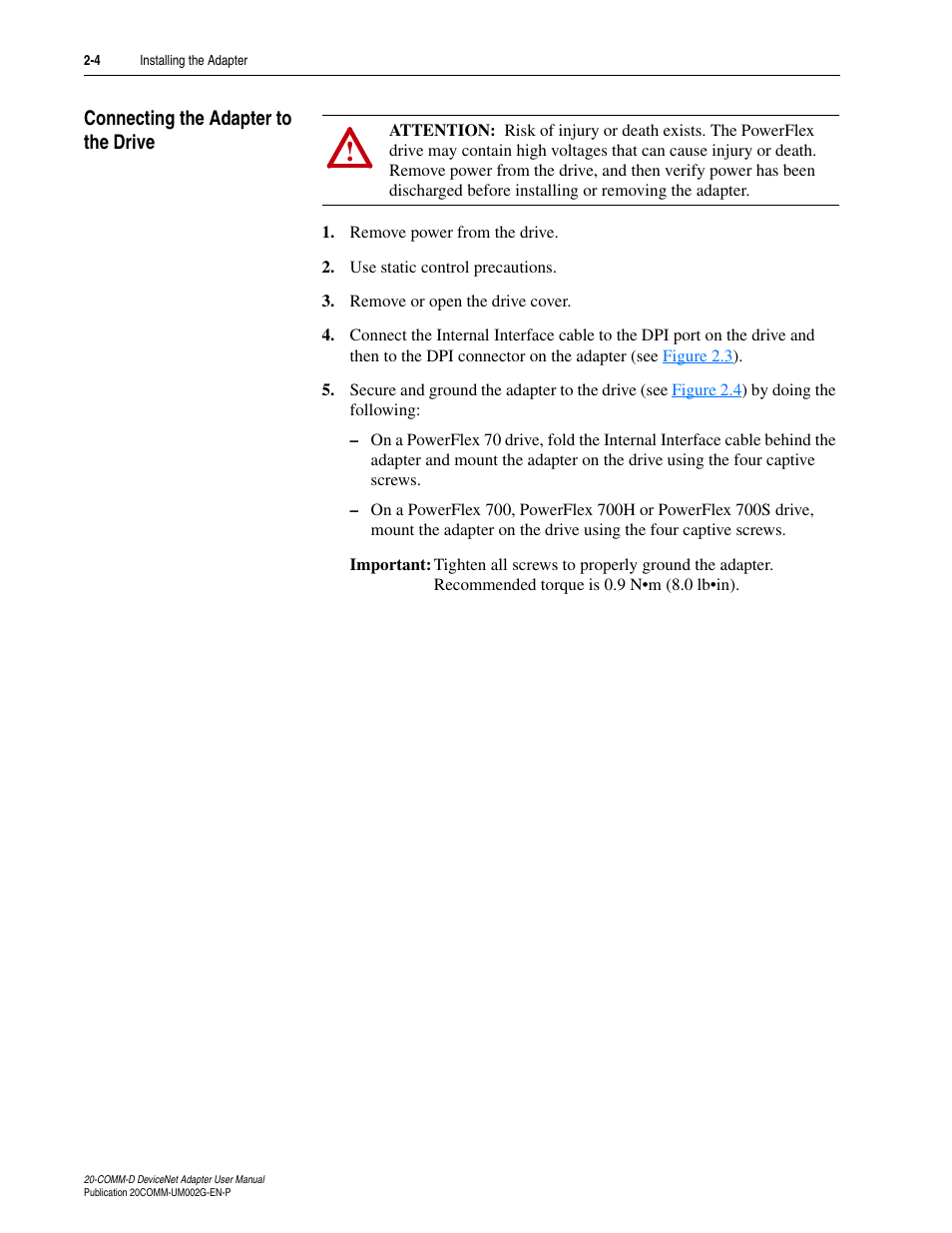

Connecting the adapter to the drive, Connecting the adapter to the drive -4 – Rockwell Automation 20-COMM-D DeviceNet Adapter Series B FRN 2.xxx User Manual
Page 22
