3-18 Placing and Configuring Local I/O

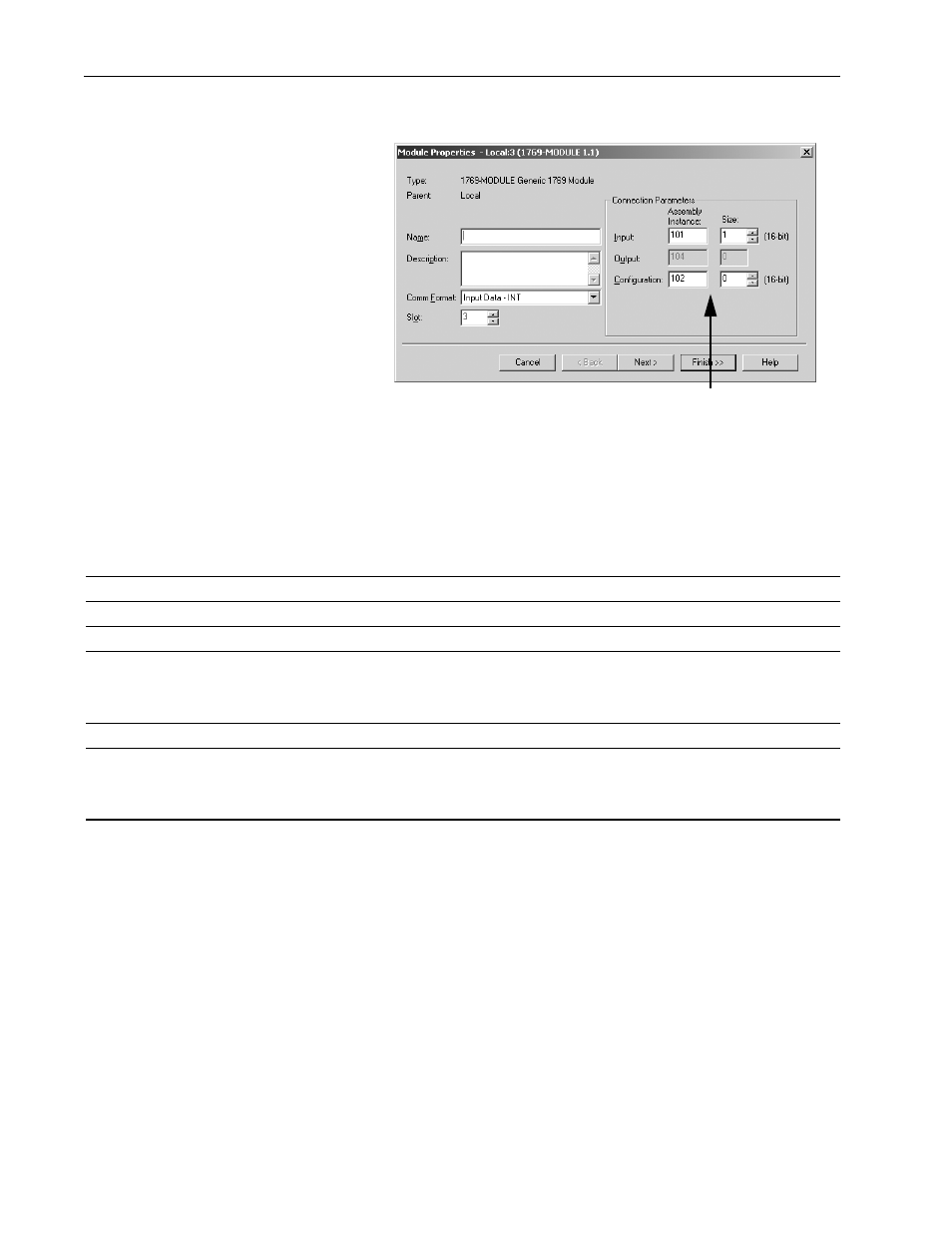

On the generic module screen, you define the parameters of the module.
3.Configure the module, using the module wizard to specify characteristics. Click Next to advance the wizard. Click Finish
when you are done.
The completed module will appear in the
Controller Organizer.
The generic module requires
you to specify more
parameters of the module.
Important: The values you enter for these parameters are device specific.
See the documentation for the device to determine which values
to enter.
ahw0821.ti
f
In this field: Specify:
Name name of the module
Description (optional) provide more details about the module
Comm Format communication format
1769 analog output modules, digital output modules, analog combination modules, and digital
combination modules, use Data – INT.
1769 analog input modules and digital input modules use Input Data – INT.
Slot slot placement of the module on the CompactBus
Connection Parameters
Input
Output
Configuration connection information unique to the module
The documentation for module should list the assembly instance and size numbers for the input,
output, and configuration parameters.
