8-2 Communicating with Devices on a DeviceNet Link
For the DriveLogix controller to operate on a DeviceNet link, you need:
• a workstation with an appropriate DeviceNet interface card
• RSLinx software to configure the DeviceNet communication driver
• RSLogix 5000 programming software (Version 13 or later) to configure
the DeviceNet communication daughtercard or local 1769-SDN
DeviceNet scanner module as part of the DriveLogix system
• a NetLinx DeviceNet communication daughtercard installed on the
DriveLogix controller (refer to Installing the Communications
Daughtercard on page B-9 )
or
• 1769-SDN DeviceNet scanner module installed on the a bank of local
Compact I/O controlled by the DriveLogix controller

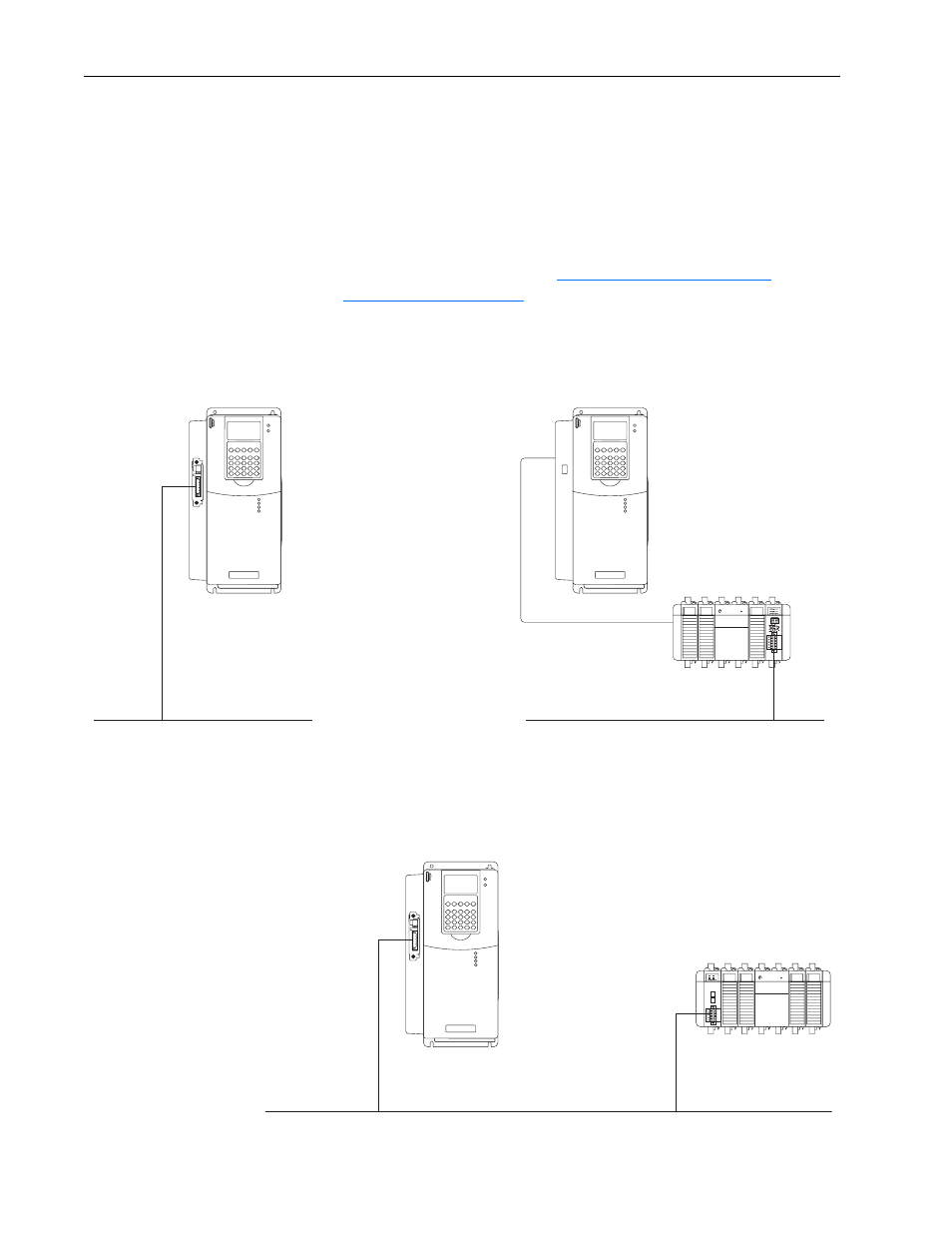

Example: Controlling I/O
Over DeviceNet This example uses a NetLinx DeviceNet communication daughtercard
installed on the DriveLogix controller to control a bank of I/O attached to a
1769-ADN adapter module.
DeviceNet DeviceNet
DriveLogix controller
with 1788-DNBO
Communications
Daughtercard
or
DriveLogix controller with
1769-SDN Scanner Module
installed in a bank of
Compact I/O ahw0939.eps
MS IO NS DIAG
DeviceNet
DriveLogix controller
with 1788-DNBO
Communications
Daughtercard
1769-ADN Scanner
Module
installed in a bank of
Compact I/O
ahw09
53.ep
s
