Placing and Configuring the Drive 2-3
Placing and Configuring the
Drive When you create a project for the DriveLogix controller in RSLogix 5000,
the Controller Organizer automatically displays the local DIN rail for
Compact I/O. You must add the PowerFlex 700S drive to the configuration,
in a manner similar to adding an I/O module. The Controller Organizer
automatically places the drive in slot two.
Important: You must select the correct voltage rating for the drive, when
adding the drive. You can find this on the drive data nameplate.

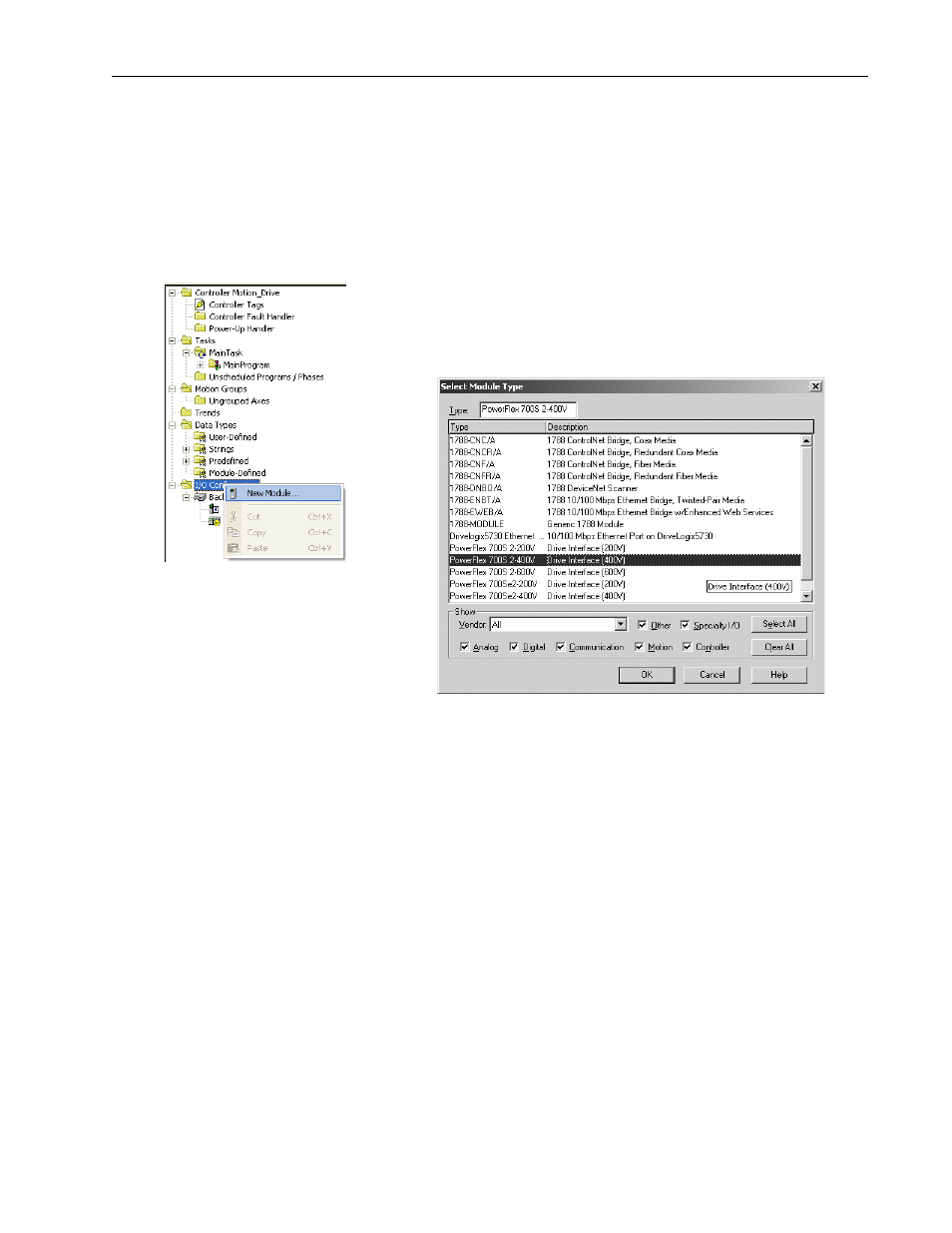

1. In the Controller Organizer, select the I/O Configuration folder. Right-click
the selected folder and select New Module.
2. Select the drive (PowerFlex 700S 2-400V in this example).
