7-2 Communicating with Devices on a ControlNet Link
sure it’s properly installed in the DriveLogix controller. Refer to Installing
the Communications Daughtercard on page B-9 .
You’ll need to configure the communication daughtercard slot number to 1
in the RSLogix 5000 programming software. The DriveLogix controller
uses slot 0 for the Communication Format with the local drive.
For more information about configuring a 1788-CNx communication
daughtercard, see:
Configuring the Communication Driver
Use RSLinx software to configure the ControlNet communication driver.
Select the appropriate communication driver for the communication
daughtercard in your workstation.
For this card: See this document:
1788-CNC, -CNCR 1788-IN002
1788-CNF, -CNFR 1788-IN005

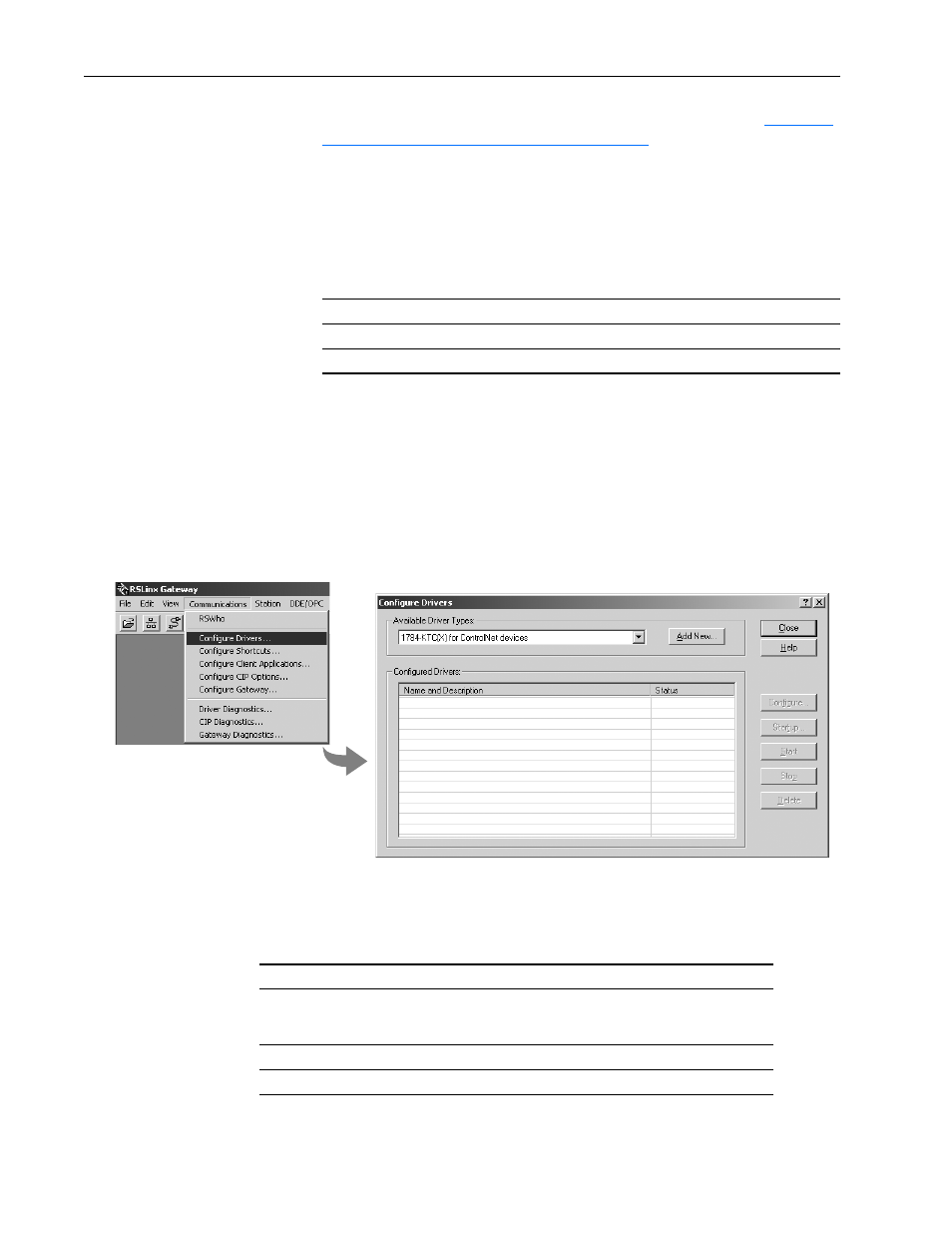

1. In RSLinx software, select Configure Driver. Select the appropriate driver.
The installation instructions for the communications daughtercard should identify
which communication driver to install.
ahw04
33.tif
ahw0434.ti
f
2. Specify the appropriate settings. For example.
If you are using this device: Specify this information:
1784-KTCx card memory address, which must match the switch setting on the card
I/O base address, which must match the switch setting on the card
ControlNet node address
1784-PCC card ControlNet node address (MAC ID)
1784-PCIC card ControlNet node address (MAC ID)
