PowerFlex 700L Frame 1X Drive Installation Instructions – Publication 20L-IN013A-EN-P – June 2009
11
This drive is intended to be installed in an enclosure by sliding it in on the
white Teflon
®
sliders. These sliders should slide into rails inside the
enclosure so that the drive cannot move from side to side.
Operating Temperatures
PowerFlex 700L Frame 1X drives are designed to operate at -10…60 °C
(14…140 °F) ambient.
Minimum Mounting Clearances and Heat Dissipation
There is no minimum mounting clearance required for the drive to dissipate
heat. However, ensure that there is sufficient space in the front for routing
cables and in the rear for connecting the coolant lines. Multiple drives can
be mounted in an enclosure with no minimum side-to-side clearance
between the drives and the enclosure walls.

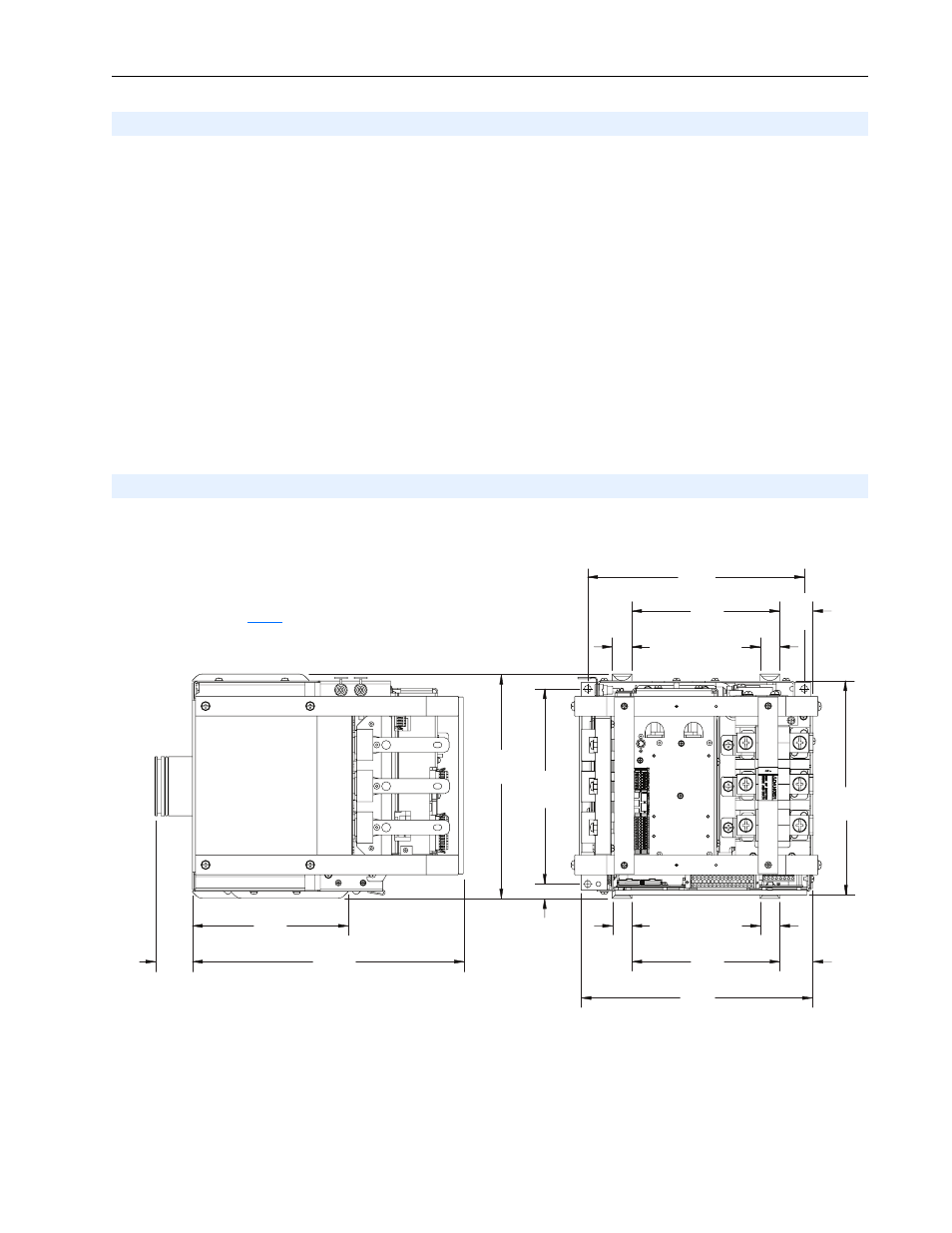

Figure 4 Frame 1X Drive Dimensions
Mounting Considerations
Dimensions
278.4
(10.96)
250.8
(9.87)
288.1
(11.34)
275.3
(10.83)
25.0
(1.0)
25.0
(1.0)
18.4
(0.73)
190.0
(7.5)
40.2
(1.6)
150.0
(5.9)
25.0
(1.0)
25.0
(1.0)
190.0
(7.5)
40.2
(1.6)
297.3
(11.7)
FRONT VIEW
47.5
(1.87)
349.2
(13.75)
OUTPUT
U T1
V T2
W T3
WV
U
R
S
T
BR1
Dimensions are in millimeters and (inches).
See
page 9 for weight.
