Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

59

Using the HIM

Chapter 4

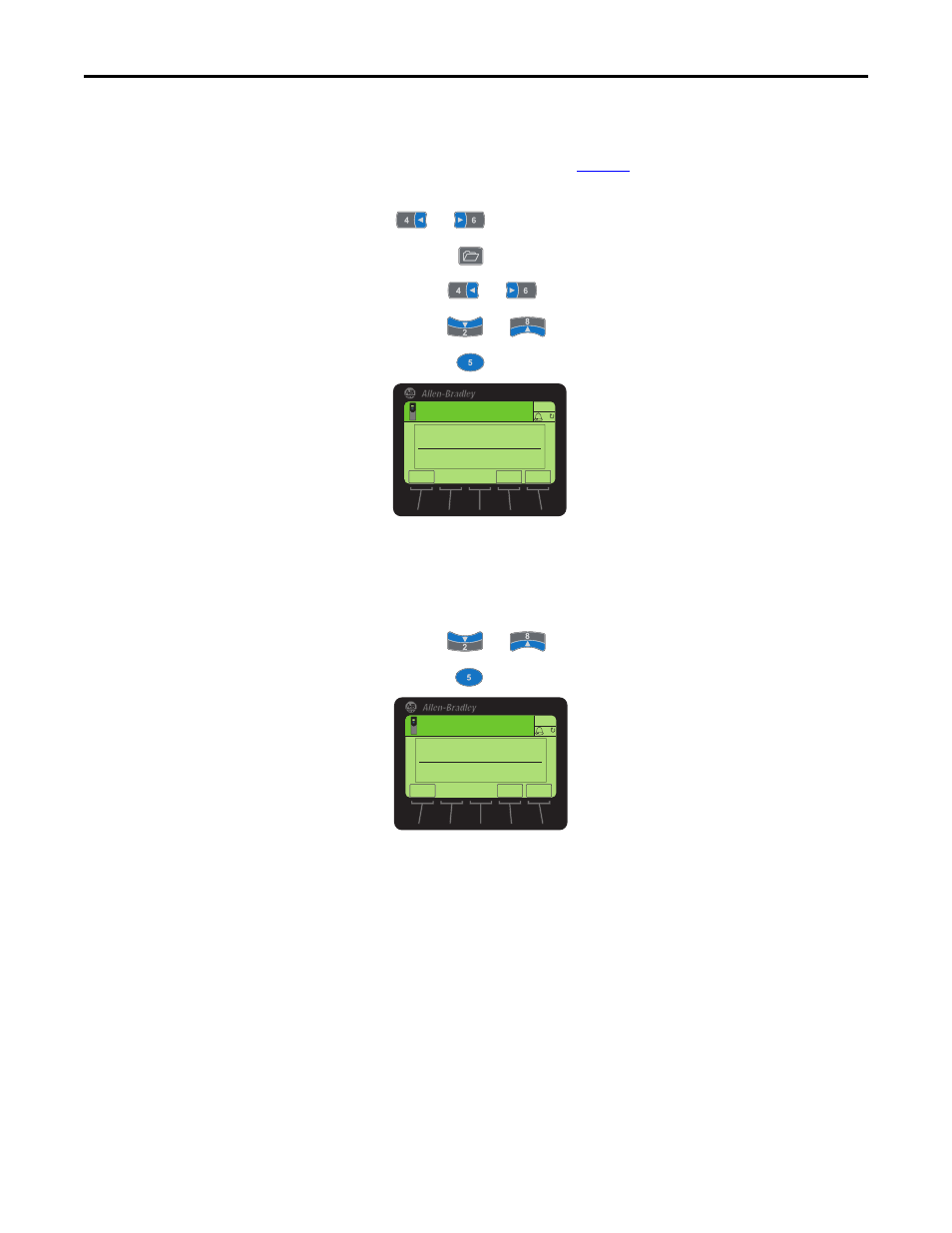

Disabling Password Protection

1.

Access the Status screen (see

Figure 6

).

2.

If Port 00 (host drive) is not shown above the ESC

soft key, use the

or

key to scroll to Port 00.

3.

Press the

key to display its last-viewed folder.

4.

Use the

or

key to scroll to the PROPERTIES folder.

5.

Use the

or

key to select Log In.

6.

Press the

(Enter) key to display the Enter Password pop-up box.

7.

Use the numeric keys to enter the existing password value.

Use the

soft key to delete an erroneous entry.

8.

Press the ENTER

soft key to enter the existing password.

9.

Use the

or

key to select Change Password.

10.

Press the

(Enter) key to display the Enter New Password pop-up box.

11.

Use the numeric keys and the

soft key to enter ‘0’, the default value to

disable the password protection feature.

12.

Press the ENTER

soft key to enter the ‘0’ (disable) default value.

13.

After the password protection verification pop-up box appears, confirm
the new password by re-entering ‘0’.

14.

Press the ENTER soft key to disable password protection.

ESC

ENTER

Stopped

0.00 Hz

AUTO

F

Enter Password

0

0 << 65535

ESC

ENTER

Stopped

0.00 Hz

AUTO

F

Enter New Password

0

0 << 65535
