22

Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

Chapter 3

HIM Components

Navigation and Number Keys

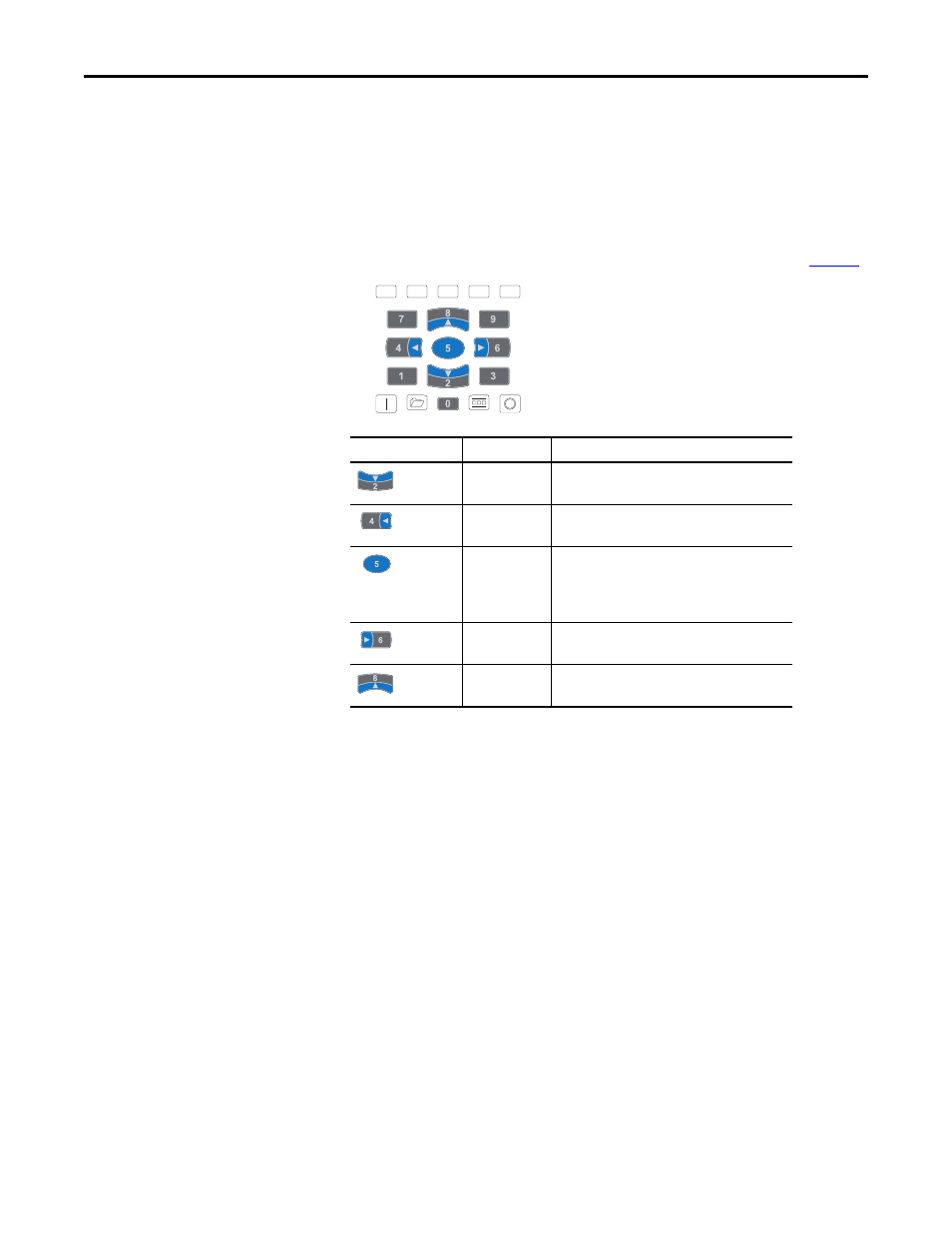

The five blue multi-function keys (2, 4, 5, 6, and 8) shown below are used to do the
following:

Enter their respective numeric value

Scroll menus/screens

Perform corresponding functions displayed in the Data Area (see

page 24

)

The five gray number keys (0, 1, 3, 7, and 9) are used only to enter their respective
numeric value.

Multi-function Key

Name

Function

2/Down Arrow

Enters the numeric value ‘2’.
Scrolls down to select an item.

4/Left Arrow

Enters the numeric value ‘4’.
Scrolls left to select an item.

5/Enter

Enters the numeric value ‘5’.
Displays the next level of a selected menu item.
Enters new values.
Performs intended actions.

6/Right Arrow

Enters the numeric value ‘6’.
Scrolls right to select an item.

8/Up Arrow

Enters the numeric value ‘8’.
Scrolls up to select an item.
