Rockwell Automation 20-HIM-C6S PowerFlex (Human Interface Module) User Manual
Page 19
Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
19
Installing the HIM
Chapter 2

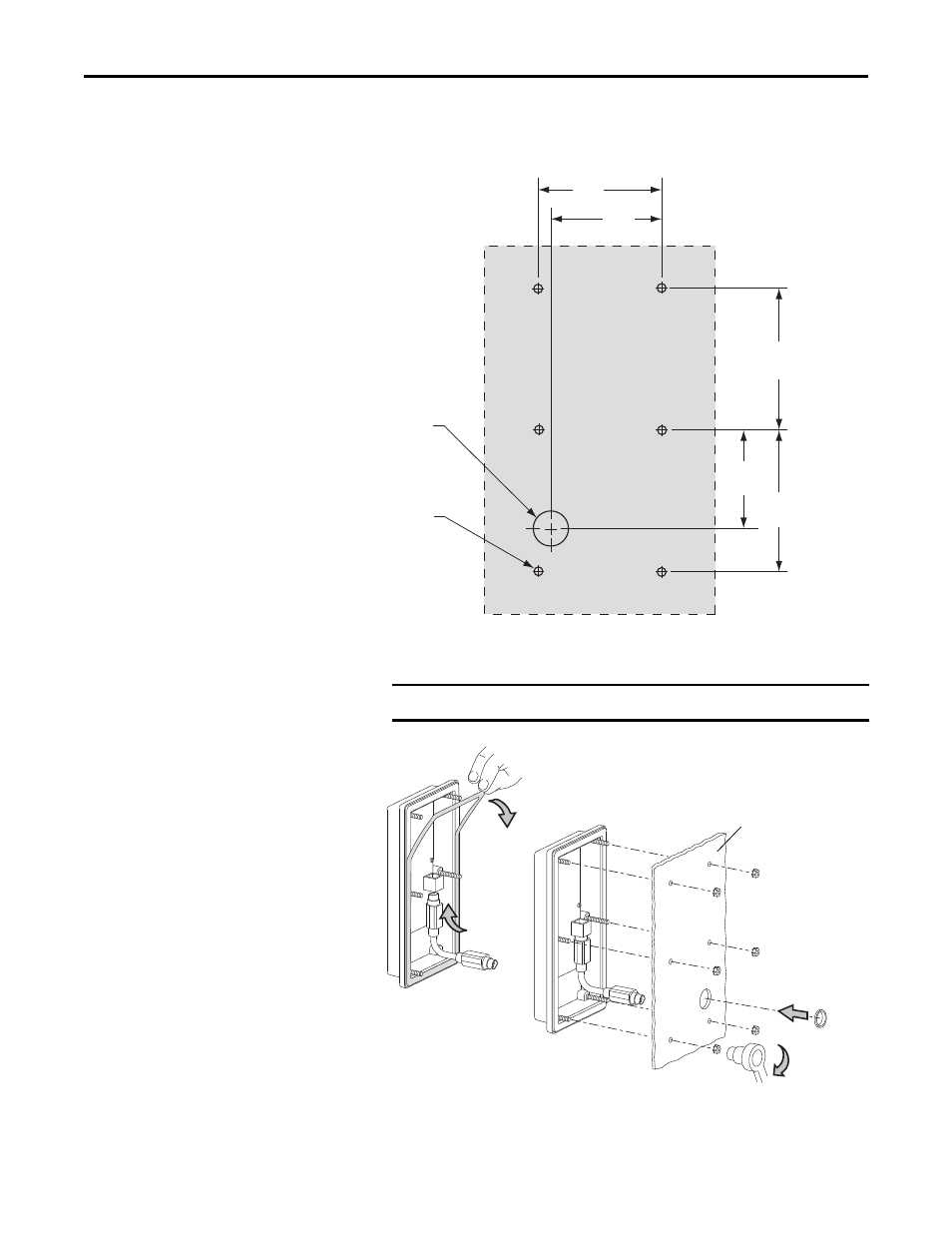

Figure 2 - Hole Pattern to Mount the 20-HIM-C6S HIM
2.
Peel the protective film from the gasketed surface on the back of the HIM.
IMPORTANT
Adhesive coated gasket is designed for one-time only installation.
67.0
(2.63)
60.0
(2.36)
77.0
(3.03)
77.0
(3.03)
59
(2.32)
Ш 19.1
(0.75)
Ш 4.8
(0.19)
Dimensions are in millimeters and (inches).
Front View
➌
➋
➍
➏
➎
➐
0.68 N•m
(6.0 lb•in)
Mounting Panel
