28 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 3 HIM Components
Process Screen Navigation/Number Keys

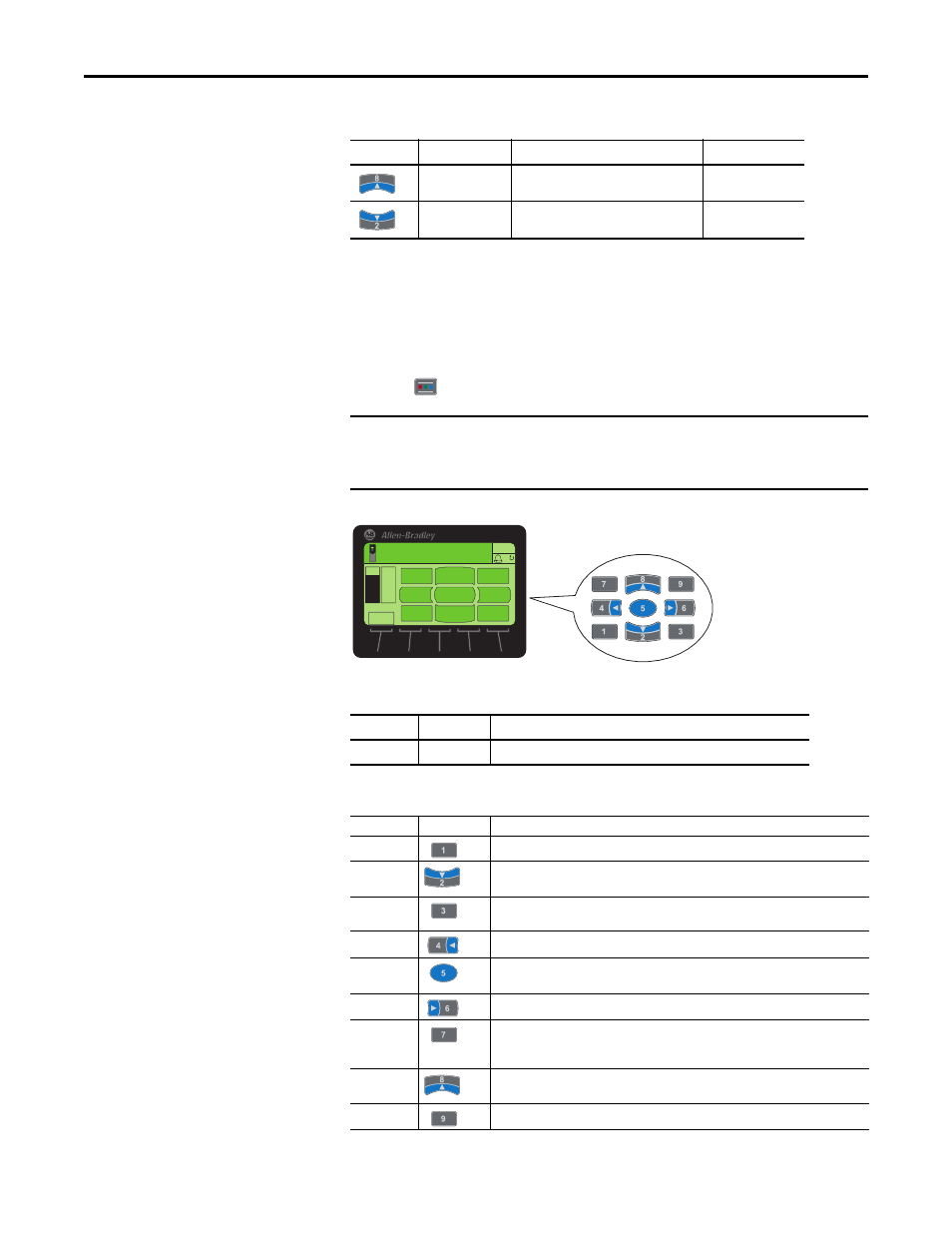

Control Screen
The Control screen (shown below) is used to directly control the drive. It displays
vertical bar graphs of the drive’s speed Reference and Feedback values, and a Key
Function Map that corresponds to the navigation/number keys for drive control.
Press the
(Controls) key to display the Control screen.
Control Screen Soft Key
Control Screen Navigation/Number Keys
Key Name Function Screen Element
8/Up Arrow Scrolls up through the display lines.
2/Down Arrow Scrolls down through the display lines.
IMPORTANT To navigate from the Control screen to another HIM menu screen, you must
always press the ESC soft key to deactivate the Control screen and display the
previous screen.
Label Name Function
ESC
Escape Deactivates the Control Screen and reverts back to the previous screen.
Label Key Function
JOG
Jogs the host drive.
REF
Decreases the speed reference for the host drive.
HELP Displays Rockwell Automation Drives Technical Support direct phone number, website
address, and email address.
REV
Sets the direction to reverse for the host drive.
EDIT
REF
Allows direct data entry of the speed reference for the host drive.
FWD Sets the direction to forward for the host drive.
REMOVE
HIM
Allows HIM removal without causing a fault if the HIM is not the last controlling device.
(The REMOVE HIM label is not available when the HIM has manual control of the host
drive. In this case, a fault will occur if the HIM is removed.)
REF
Increases the speed reference for the host drive.
MANUAL
Switches between Auto and Manual modes.
ESC
REF
MANUAL
FBK REF
REMOVE
HIM
EDIT
REF
FWD REV
REF
JOG HELP
Control Screen Key Function Map
corresponds to Navigation/Number Keys
See table below
for key functions
Stopped
0.00 Hz
AUTO
F
