Rockwell Automation 20-HIM-C6S PowerFlex (Human Interface Module) User Manual

Page 33

Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

Using the HIM

Chapter 4

Setting the Date/Time for
PowerFlex 750-Series Drives

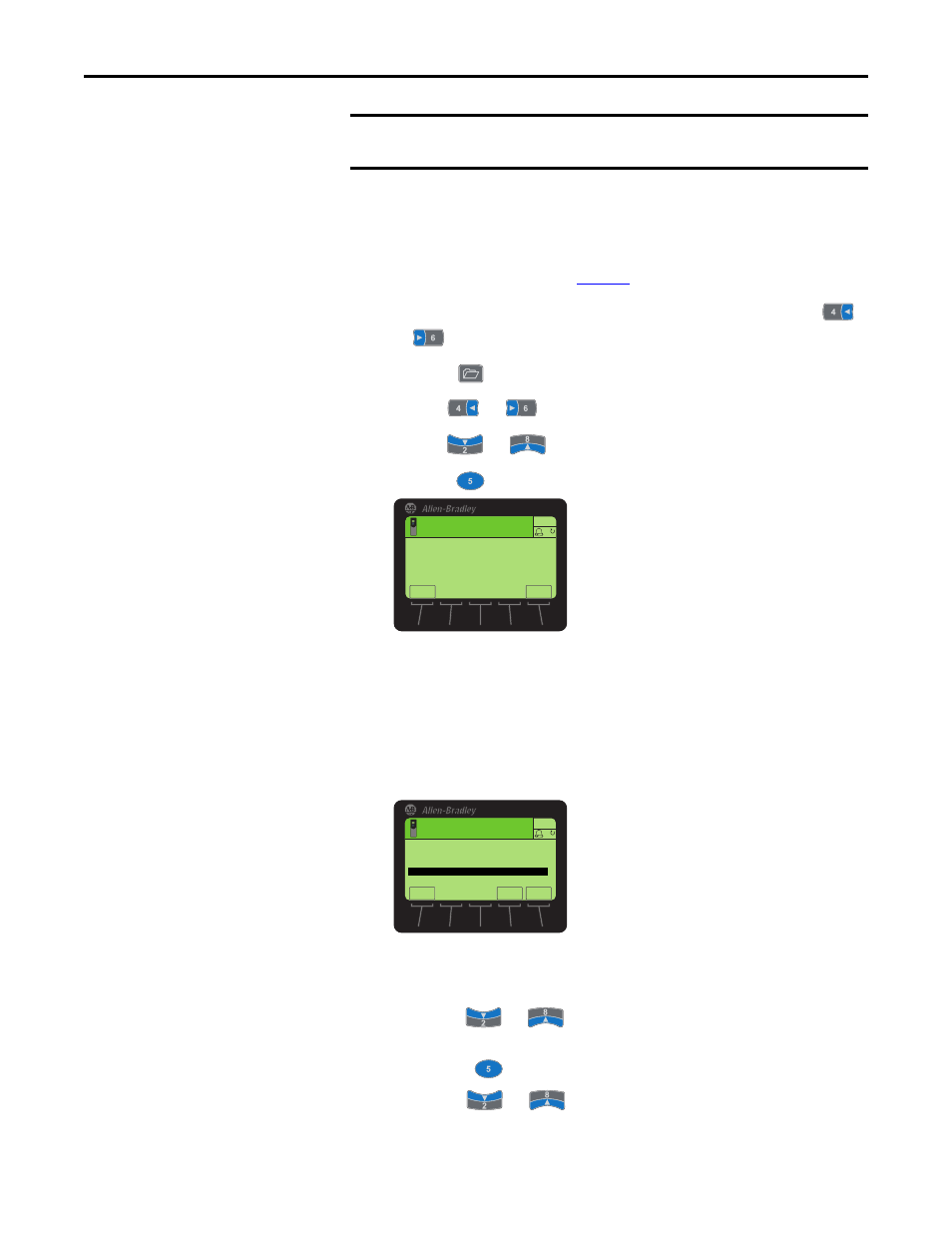

The PowerFlex 750-Series drive has a real-time clock which supports its time
stamp feature for faults and alarms. This clock must be accurately set to provide
meaningful time stamp data. Follow these steps to set the date and time.

Access the Status screen (see

Figure 6

If Port 00 (host drive) is not shown above the ESC

soft key, use the

key to scroll to Port 00.

Press the

key to display its last-viewed folder.

Use the

key to scroll to the PROPERTIES folder.

Use the

key to select Set Date and Time.

Press the

(Enter) key to display the Date/Time Set screen.

The top line shows the present date and time in this format:

yyyy/mm/dd hh:mm:ss

Note that the time is always displayed in a 24-hour format. For example,
6:00 pm is shown as 18:00:00.

Press the EDIT

soft key to access the Date/Time Set Edit Mode screen,

which highlights the present time zone line.

To select the time zone:
a. Press the ZONES

soft key to display the Select Time Zone screen.

b. Use the

key to select your time zone region (for

example, Americas).

c. Press the

(Enter) key to enter your selection.

d. Use the

key to select your specific time zone (for

example, Chicago).

IMPORTANT

The information in this section does not apply to PowerFlex 7-
Class drives.

AUTO

ESC

EDIT

Port 00 Date / Time Set

Monday

2008/05/12 10:38:47

(GMT-06:00)

Chicago

Stopped

0.00 Hz
