Page 54

54
Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 4
Using the HIM
association is now changed and the indirect selector or reference
parameter screen re-appears with the associated parameter information
shown.

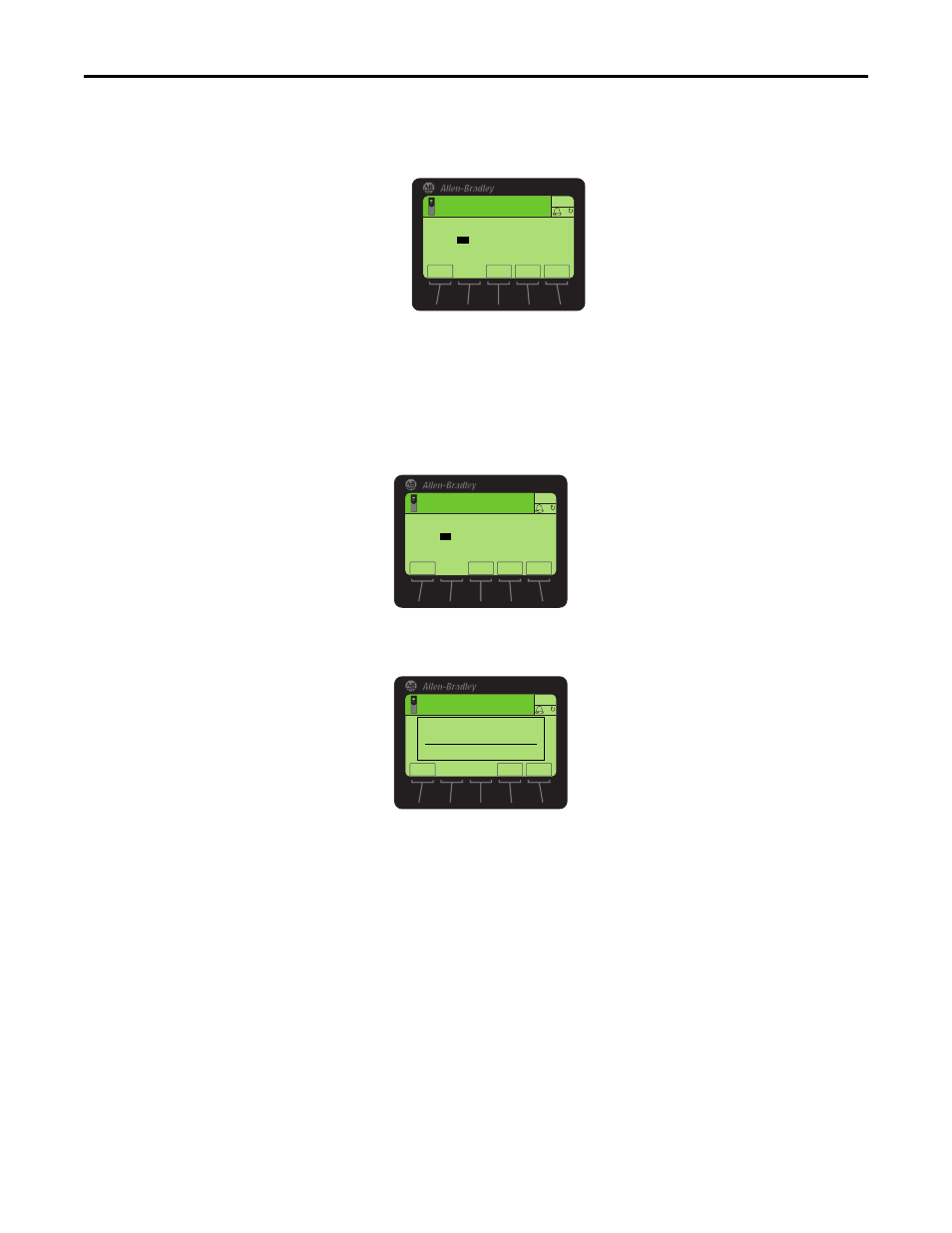

Using Direct Numeric Entry Method
1.
Access the indirect selector or reference parameter whose association you
want to change (for this example, drive Parameter 545 - [Spd Ref A Sel] as
shown below).
2.
With any field (port, parameter, or bit) selected, press the #
soft key to
display the Direct Numeric Entry pop-up box.
3.
Use the numeric keys to enter a number string that represents the target
parameter’s device port number, parameter number and, only when the
target parameter is a bit parameter, its bit number.
The number string format is PPpppp.bb, where:
PP = device port number
pppp = target parameter number
bb = bit number (only used when target parameter is a bit parameter)
4.
Press the ENTER
soft key to enter the number string and complete the
parameter association.
The indirect selector or reference parameter screen re-appears with the
associated parameter information.
ESC
EDIT
Stopped
0.00 Hz
AUTO
F
#
Port 00 Dev Param 545
Spd Ref A Sel
P
00
P0871
Port
PowerFlex 755
PAR#
ESC
EDIT
Stopped
0.00 Hz
AUTO
F
#
Port 00 Dev Param 545
Spd Ref A Sel
P
00
P0871
Port
PowerFlex 755
PAR#
Stopped
0.00 Hz
AUTO
F
Edit Spd Ref A Sel
871
0 << 159999
ESC
ENTER
