58 Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013
Chapter 4 Using the HIM
Changing Password-protected Drive/Peripheral Parameters
When the host drive is password protected, parameter settings for the drive and
its connected peripherals can be viewed—but not changed until after the correct
password value is entered.
When attempting to edit a parameter value while logged out, the HIM will
prompt you for the password before allowing access.
Password protection also applies to:
• Drive start-up procedure
• Factory defaults
• User sets
• CopyCat function

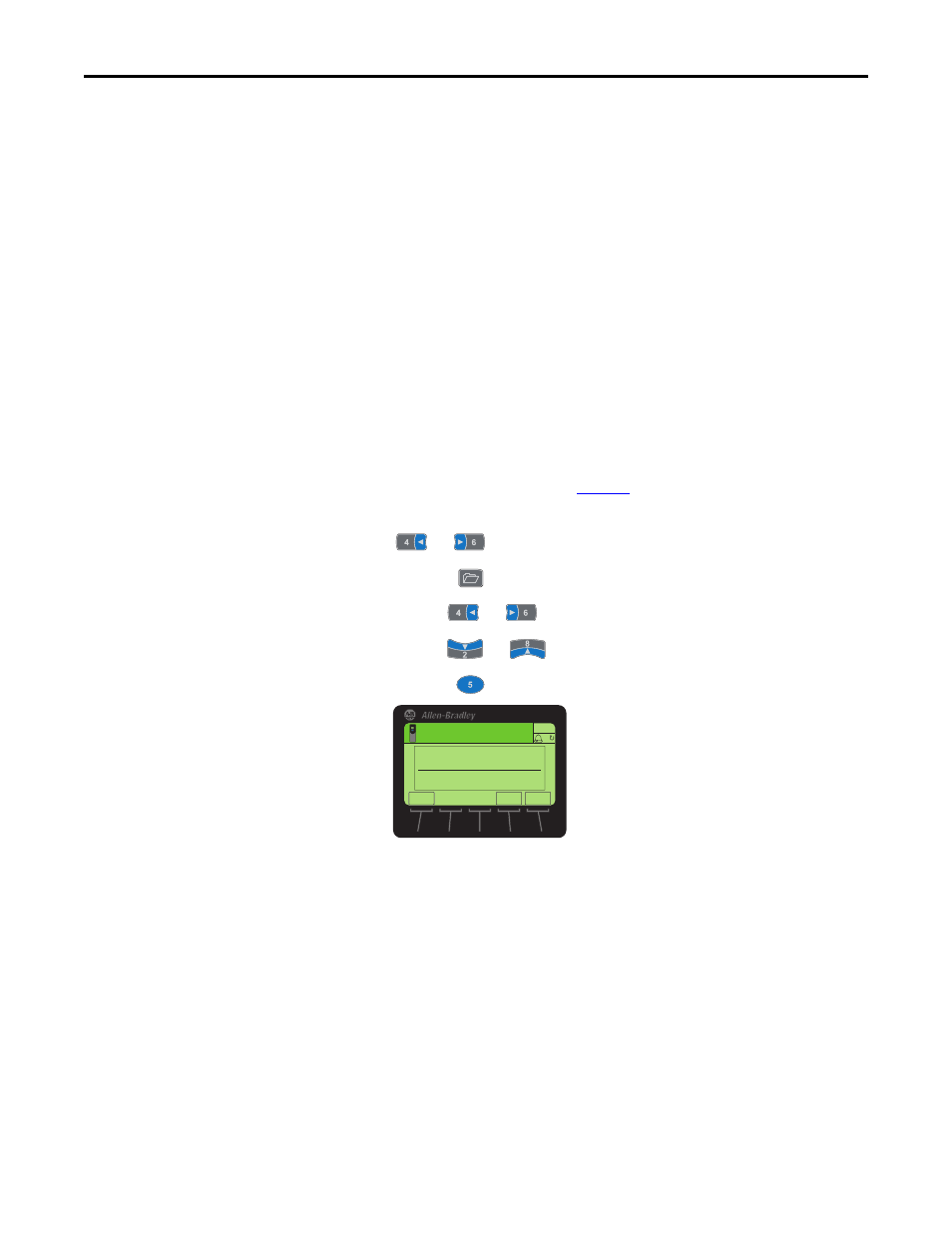

Follow these steps to edit password-protected parameters.
1. Access the Status screen (see Figure 6 ).
2. If Port 00 (host drive) is not shown above the ESC
soft key, use the
or key to scroll to Port 00.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the PROPERTIES folder.
5. Use the or key to select Log In.
6. Press the (Enter) key to display the Enter Password pop-up box.
7. Use the numeric keys to enter the existing password value.
Use the
soft key to delete an erroneous entry.
8. Press the ENTER
soft key to enter the existing password.
Thereafter, any parameter setting can be changed.
ESC ENTER
Stopped
0.00 Hz
AUTO
F
Enter Password
0
0 << 65535
