26

Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

Chapter 3

HIM Components

Main Screens

The HIM main screens include the Status screen, Process screen, Control screen,
Folder screens, and Fault Display screens, which are described in their respective
subsections that follow.

Status Screen

On power up, the Status screen (

Figure 4

) is shown by default. Depending on the

type of host drive, the Status screen displays the following information.

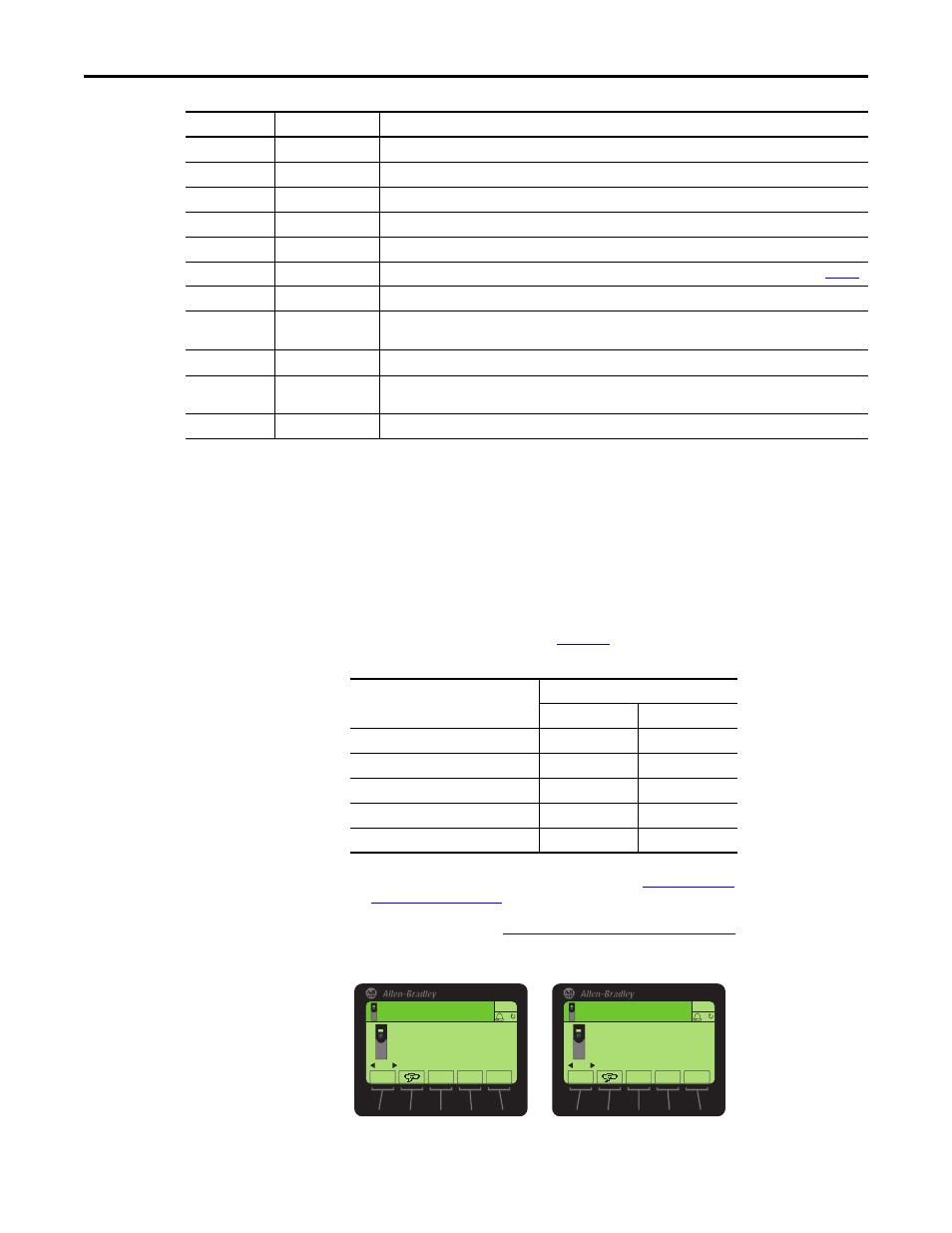

Figure 4 - Example Status Screens

MOST

Most

Restores most Host or Port device parameters to factory defaults.

PAR#

Parameter Number

Navigates directly to a parameter.

PGDN

Page Down

Scrolls down to the next page of data lines on the Device Version information screen.

PGUP

Page Up

Scrolls up to the previous page of data lines on the Device Version information screen.

REF

Reference

Enters the speed reference for the Host Drive.

RESET

Reset

Resets the Process screen’s displayed monitoring items to the factory default monitoring items listed on

page 36

.

TEXT

Text

Edits user-definable text for the device selected.

TOP

Top

Displays the top (most recent) fault, alarm or event in a queue.
Scrolls to the top line of data on the Device Version information screen.

UPPER

Upper

Displays the upper 16 bits (bits 16…31) of a 32-bit Bit-type parameter.

VIEW

View

Toggles between select screens and views.
Displays the time stamp screen from a fault, alarm or event queue screen.

ZONES

Zones

Displays the Select Time Zone screen.

Soft Key Label

Name

Function

Displayed Information

Host PowerFlex Drive

750-Series

7-Class

Selected device icon and port number

Device name

(1)

(1) The displayed default device name is dependent on the host drive. The device name can be

changed, for example, to Host Drive as shown in the screens below. See

Creating a User-Defined

Drive/Peripheral Name on page 35

for details.

Rating text (volts, amps)

Drive catalog text

not applicable

Firmware version and hardware series

(2)

(2) The firmware version and hardware series for a PowerFlex 750-Series drive can be shown using

HIM menu screens. For details, see

Checking Drive and Peripheral Firmware Revisions on page 47

.

For PowerFlex 750-Series Drive

For PowerFlex 7-Class Drive

00

Stopped

0.00 Hz

AUTO

Host Drive

240V

4.2A

20G...D014

ESC

REF

TEXT

F

PAR#

00

Stopped

0.00 Hz

AUTO

Host Drive

240V

4.2A

Rev 3.002 Ser. A

ESC

REF

TEXT

F

PAR#
