Chapter 3

HIM Components

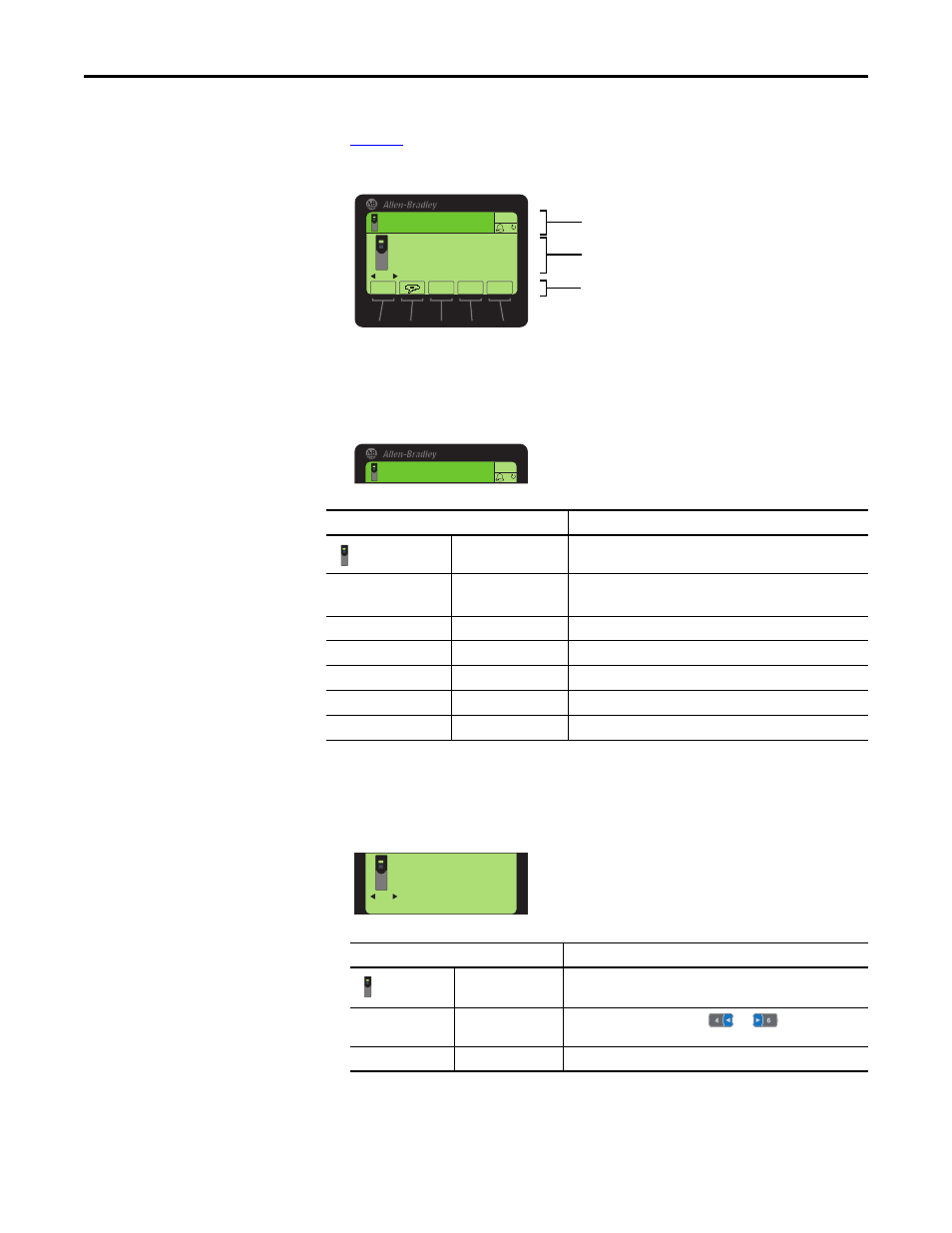

LCD Display Elements

The basic HIM screen is divided into three display zones, which are shown in

Figure 3

and described in their respective subsections that follow.

Figure 3 - HIM Display Zones

Status Bar

The Status Bar provides operating status information for the host drive.

Data Area

The Data Area displays the data or function presently being acted upon.

Status Bar

Data Area

Soft Key Labels

00

Stopped

0.00 Hz

AUTO

Host Drive

240V

4.2A

20G...D014

ESC

REF

TEXT

F

PAR#

Stopped

0.00 Hz

AUTO

F

Status Bar Element

Meaning

Host Icon

A small image of the connected host drive.

Stopped

Status Text

Indicates present host drive operating status.
Text flashes when a fault is present.

0.00 Hz

Feedback

Indicates drive output feedback (for example, Hz, RPM, amps, etc.)

AUTO/MAN

Mode Indication

Indicates Auto or Manual HIM status.

Alarm Indication

Bell icon indicates that an alarm is present.

F or R (not shown) Rotation Indication

Indicates Forward or Reverse direction of host drive operation.

DLX (not shown)

DeviceLogix Indication

Indicates when the host drive DeviceLogix feature is enabled.

Data Area Element

Meaning

Host or Device Icon

Image of the host drive or image of the device connected to the port
selected.

00

Port Selection

Indicates selected port. Use the

or

navigation keys to

select a port.

Host Drive

User-Definable Text

Top line of text in the Data Area can be edited by the user.

00

Host Drive

240V

4.2A

20G...D014
