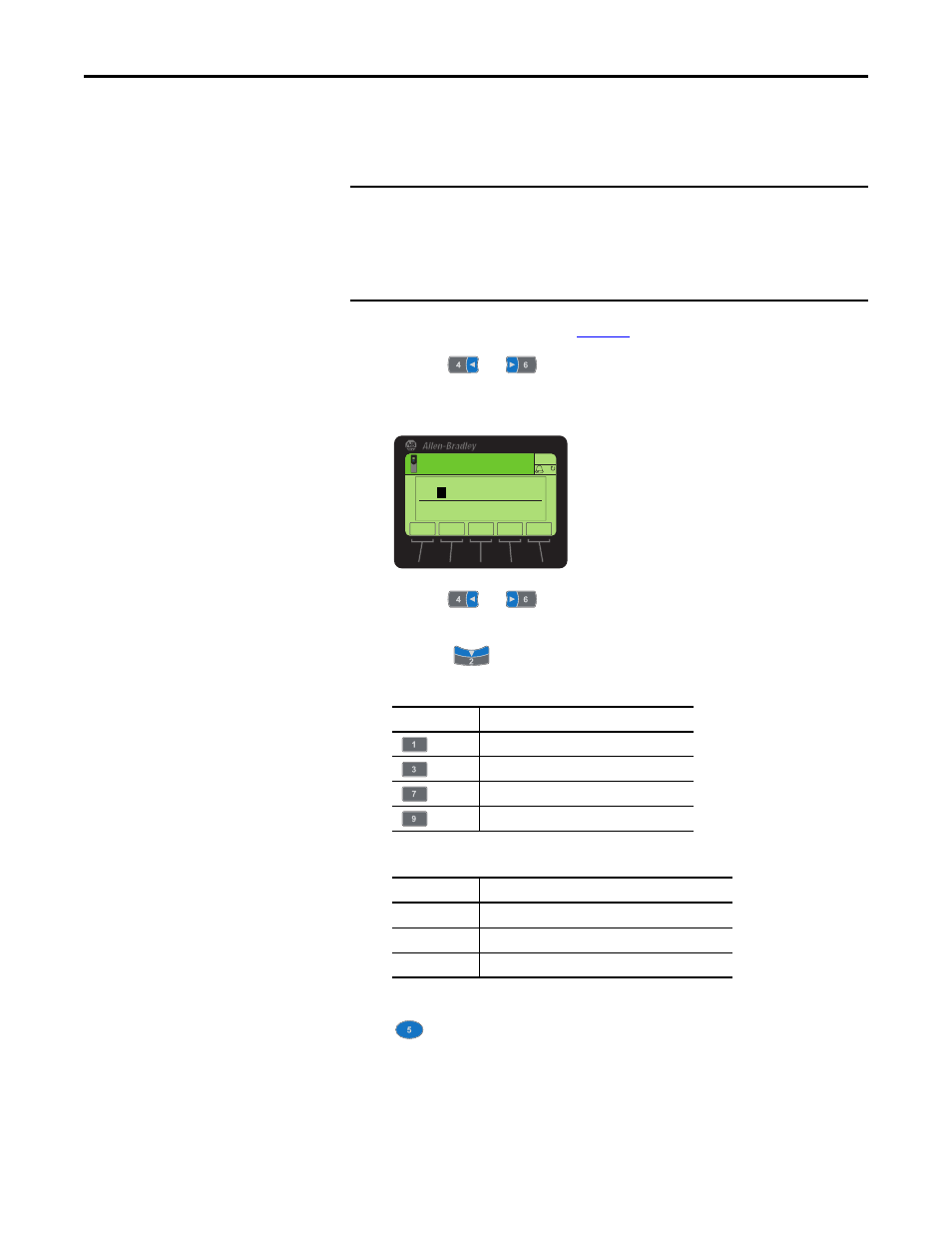

Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013

35

Using the HIM

Chapter 4

Creating a User-Defined
Drive/Peripheral Name

The host drive and each of its connected peripherals has a default name. You can
change any of these default names, but each new user-defined name cannot
exceed 16 characters in length. Follow these steps to change a default name.

1.

Access the Status screen (see

Figure 6

).

2.

Use the

or

key to scroll to the Port of the device whose name

you want to change (for example, Port 00 for the host drive).

3.

Press the TEXT

soft key to display the Edit User Defined Text pop-up box.

4.

Use the

or

key to move the cursor to the desired character

position in the displayed name.

5.

Press the

key to access the last-viewed character set.

6.

Press the appropriate numeric key to access the desired character set.

Also, use the appropriate

soft keys to help create the new name.

7.

With the desired character selected in that character position, press the

key to select and enter the character.

8.

Repeat steps 4 through 7 for each character position.

9.

When the desired name is displayed on the edit pop-up box, press the
ENTER

soft key to enter and save the new name.

IMPORTANT

Text editing is not supported when using Asian language characters. Only
characters in the ISO 8859-1 Latin 1 Character Set, which is supported by U.S.
and European personal computers, are available. If a software tool is used for
text editing Asian characters, the HIM will replace all unsupported characters
with a [] (narrow rectangle) mark.

Numeric Key

Function

Selects the numeric character set.

Selects the symbols character set.

Selects the upper case letter character set.

Selects the lower case letter character set.

Soft Key

Function

DEL

Deletes a highlighted character.

INS

Inserts a space to the left of a highlighted character.

CLR

Deletes an entire text string.

ESC

ENTER

Stopped

0.00 Hz

AUTO

F

INS

DEL

, =Move Cursor =Char Set

CLR

Edit User Defined Text

P

owerFlex 755
