Using the HIM
Chapter 4

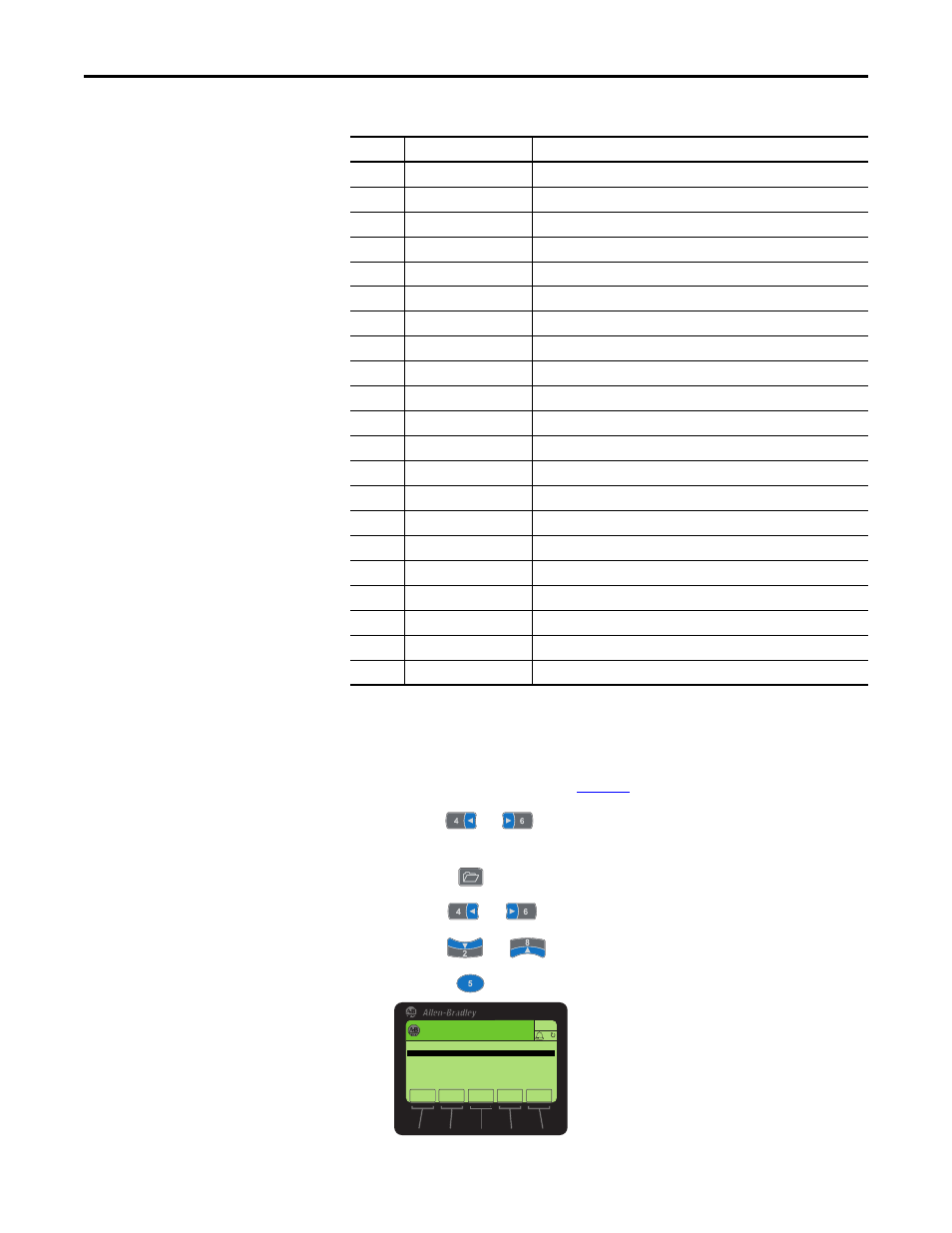

Table 2 - 20-HIM-A6 and 20-HIM-C6S HIM Events
Checking Drive and
Peripheral Firmware
Revisions
Follow these steps to check the firmware revision of the drive or its peripherals.
1.
Access the Status screen (see
Figure 6
).
2.
Use the
or
key to scroll to the Port of the device whose firmware
version you want to view (for example, Port 00 for the host drive).
3.
Press the
key to display its last-viewed folder.
4.
Use the
or
key to scroll to the DIAGNOSTIC folder.
5.
Use the
or
key to select Device Version.
6.
Press the
(Enter) key to display device version information.
Code
Event
Description
1
Reserved
—
2
Device Power Up
A normal power up.
3
Device Reset
The HIM was reset due to a manual reset command or program crash.
4
EEPROM CRC Error
The HIM EEPROM Data Storage Device is corrupt.
5
App Updated
The HIM application firmware has been updated.
6
Boot Updated
The HIM boot firmware has been updated.
7
Watchdog Timeout
A program crash has occurred.
8
DPI Bus Off
A DPI Bus Off fault was detected.
9
DPI Ping Timeout
A DPI Ping Timeout fault was detected.
10
DPI Port Invalid
A DPI Port ID fault was detected.
11
DPI Port Changed
A DPI Port Changed fault was detected.
12
DPI Host Reset
The host has sent a reset message.
13
DPI Baud 125K
The DPI data rate is detected at 125K bits/second.
14
DPI Baud 500K
The DPI data rate is detected at 500K bits/second.
15
DPI Host Invalid
The HIM will not connect to this type of host.
16
DPI Dup Port
Another DPI device is already connected to this port.
17
DPI Type 0 Logon
The DPI log on was completed successfully.
18
DPI Type 0 Time
A DPI Type 0 Command has timed out.
19-23
Reserved
—
24
DPI Msg Timeout
A message to a DPI device has timed out.
25
DPI Manual Reset
A reset command was sent through a fault object.
Stopped
0.00 Hz
AUTO
ESC
F
PowerFlex 755
Product Revision 1.007
Product Ser Num 00000000
Product Series A
–Main Control Board
FW Revision 1.007
TOP
END PGUP PGDN
