HIM Components
Chapter 3
Status Screen Soft Keys
Status Screen Navigation/Number Keys
If you would rather see the Process screen (shown below) as the initial power-up
screen, change the HIM Parameter 03 - [Initial Screen] value to ‘1’ (Process
Scrn). By default, when the HIM keys are not used for the time period set in
Parameter 07 - [User Dspy Time]
, the screen being displayed at that time will
revert back to the initial screen. You can disable this feature by setting Parameter
06 - [User Dspy Enable]
to ‘1’ (Disable).

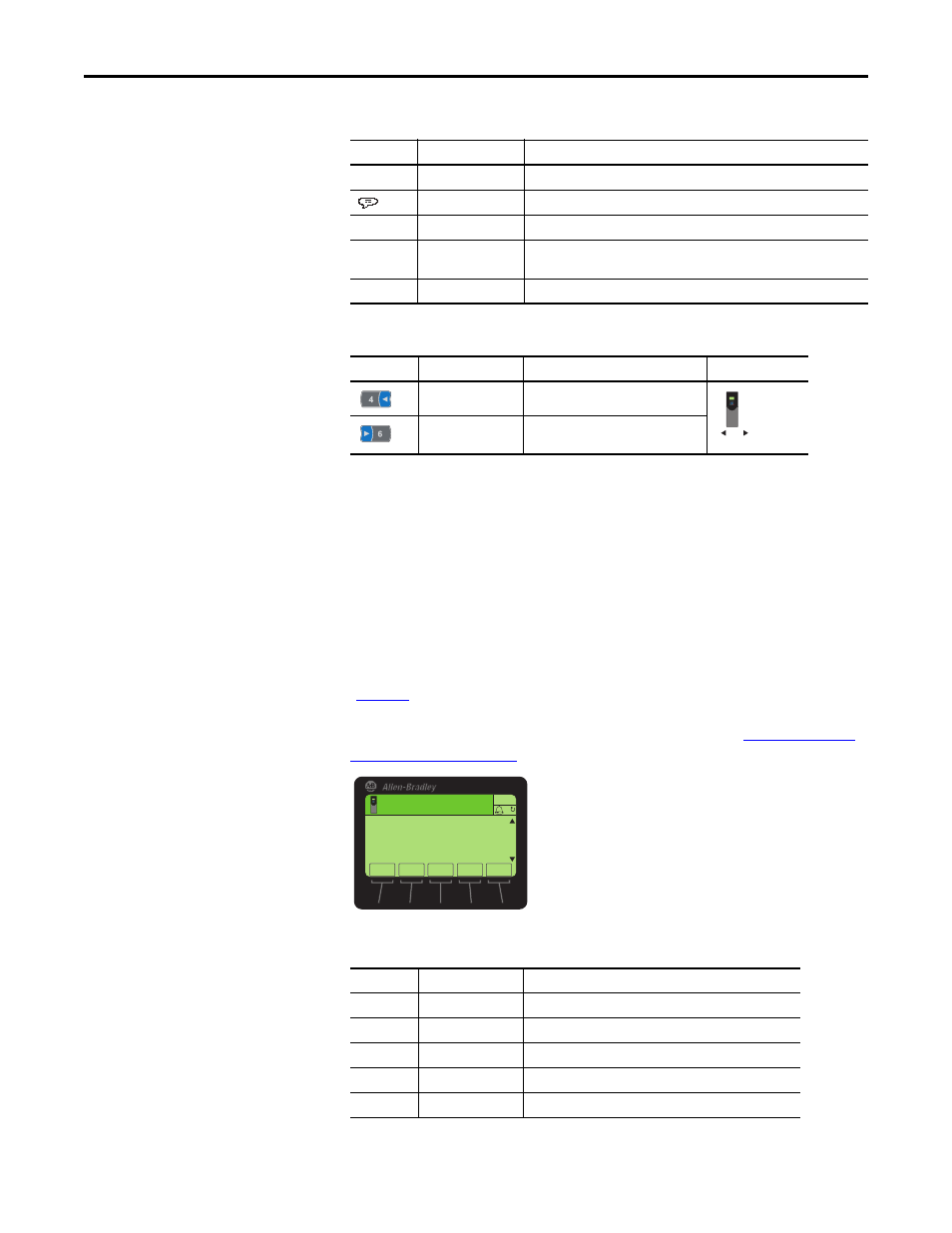

Process Screen
To display the Process screen, press the ESC
soft key on the Status screen
(
Figure 4
). The Process screen shows various drive monitoring parameters. Multi-
line and Single-line views can be selected by pressing the VIEW
soft key. The
displayed default monitoring parameters can be changed. See
for details.
Process Screen Soft Keys
Label
Name
Function
ESC
Escape
Toggles between the Status and Process Display screens.
Language Icon
Directly accesses the Select Language To Use screen.
REF
Reference
Enters the speed reference for the Host Drive.
PAR#
Parameter Number
Directly accesses a parameter for the device on selected port. (This soft key is
not available if the device has no parameters.)
TEXT
Text
Edits user-definable text for the device on selected port.
Key
Name
Function
Screen Element
4/Left Arrow
Selects the device on previous port.
6/Right Arrow
Selects the device on next port.
Label
Name
Function
ESC
Escape
Toggles between the Process Display and Status screens.
VIEW
View
Toggles between the multi-line and single-line views.
REF
Reference
Enters the speed reference for the Host Drive.
PAR#
Parameter Number
Directly accesses a parameter for the selected port device.
EDIT
Edit
Directly accesses the Edit Process Display screen.
00
Stopped
0.00 Hz
AUTO
0.00
0.000
0.00
VIEW
F
REF PAR#
Amps
Bus VDC
Out Vlts
EDIT
ESC
