7 Technology applications
7.3 TA "Switch-off positioning"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.3.1 Basic signal flow

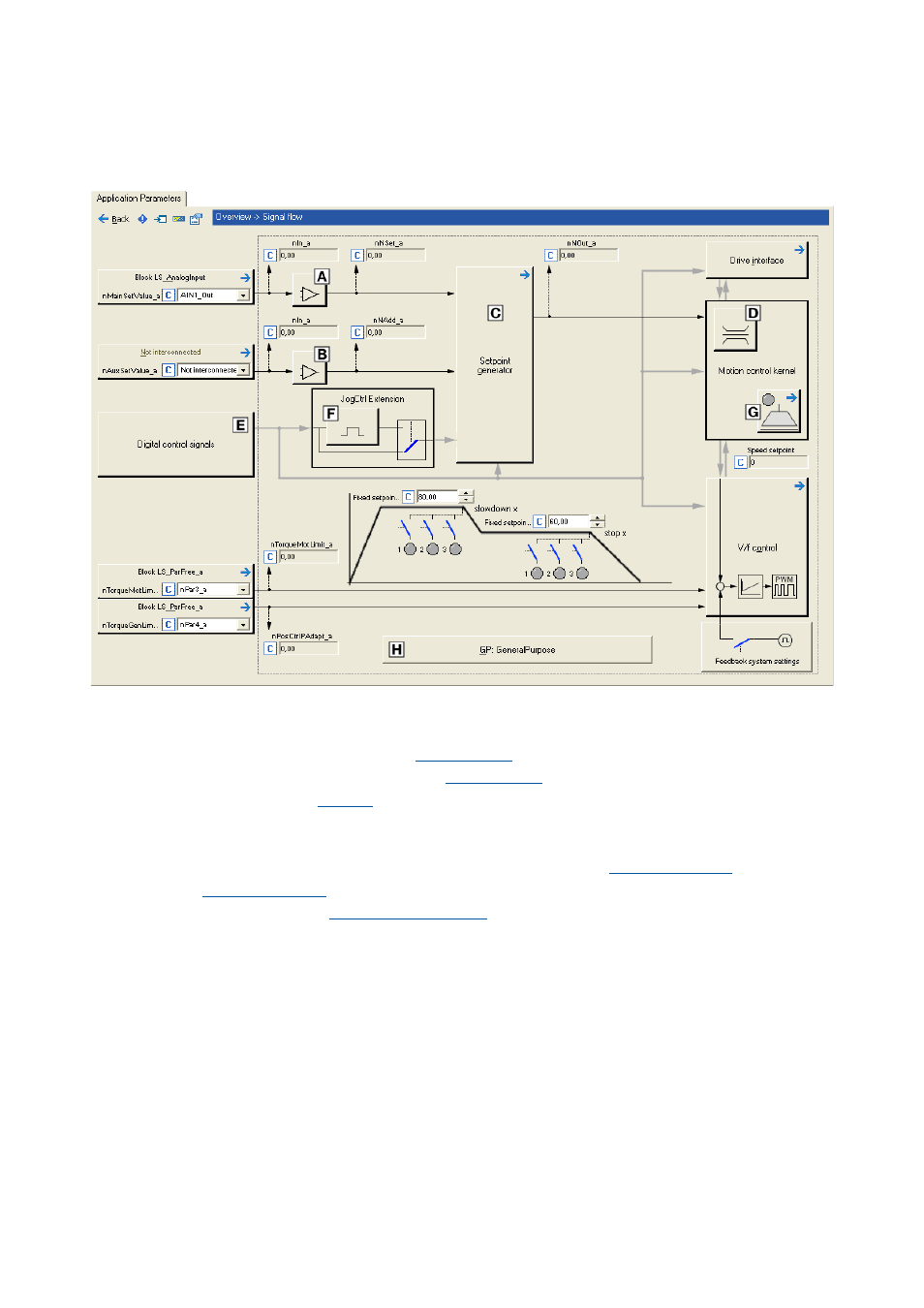

[7-6] Signal flow of the switch-off positioning
 Main speed setpoint offset and gain ( L_OffsetGainP_1 )
 Additional speed setpoint offset and gain ( L_OffsetGainP_2 )
 Setpoint generator ( L_NSet_1 )
 Speed setpoint input limitation
 Terminal assignment & display of digital control signals
 Selection of edge/level for tripping the ramp down and stop functions (
L_JogCtrlExtension_1 )
 Holding brake control
 Integrated disposable "GeneralPurpose" functions : Analog switch, arithmetic, multiplication/division, binary
delay element, binary logic, analog comparison, D-flipflop
