2 Introduction: Parameterising the controller
2.2 Selection of the appropriate commissioning tool
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
2.2 Selection of the appropriate commissioning tool
There are several possibilities for commissioning the 8400 protec StateLine controller:

Tip!
The engineering tools »EASY Starter« and »Engineer StateLevel« are provided free of charge
in the internet:
http://www.Lenze.com  Download  Software downloads
For communication between PC and controller, the USB diagnostic adapter can be used for
instance (see the following subchapter).

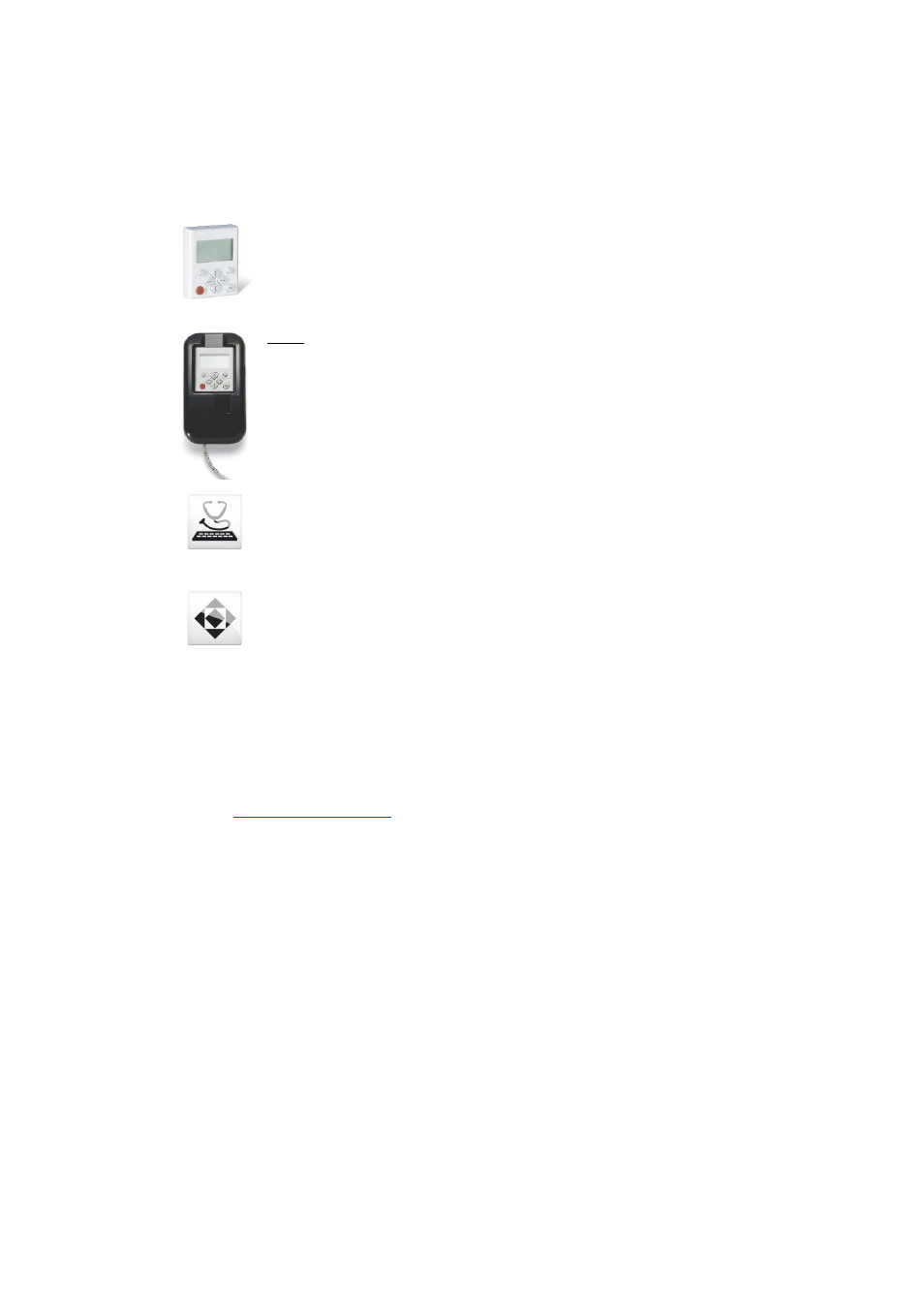

Commissioning via keypad X400 (or diagnosis terminal X400)
The keypad is an alternative to the PC for the local operation, parameterisation, and
diagnostics in a simple manner. The keypad is especially suited for test and
demonstration purposes and for the case that only few parameters have to be
adapted.
Note:
• Use the diagnosis terminal for the 8400 protec StateLine controller. The
diagnosis terminal combines the keypad with a housing and a connecting cable.
• The description how to make the settings with the keypad also applies to the
diagnosis terminal.
Commissioning using PC and »EASY Starter«
The »EASY Starter« is a Lenze tool for simple online diagnostics, parameterisation and
commissioning of the controller.
Commissioning using PC and »Engineer«
The »Engineer« is a Lenze engineering software for parameter setting across all
devices, configuring and diagnosing individual components (as for instance
controllers, industrial PCs, motors, I/O systems) and machine control systems.
