5 Motor control (MCTRL)
5.6 Sensorless vector control (SLVC)
144
Lenze · 8400 protec StateLine · Reference manual · DMS 4.2 EN · 03/2013 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Speed controller reset time Ti
Apart from setting the P component,
C00071/1 provides the possibility to take influence on the I
component of the PI controller.

Tip!
Value range recommended by Lenze for the setting of the reset time:
Ti = 20 ms … 150 ms
5.6.4.3 Optimising dynamic performance and field weakening behaviour
In the Lenze setting, the torque controller has been preset in such a way that robust and stable
operation with a moderate dynamic response is enabled over the entire speed range. Retrospective
optimisation of the controller parameters is not necessary.
A greater dynamic performance of the sensorless vector control can be achieved by reducing time
constant Ti of the speed controller ( C00074/2 ).
A greater dynamic performance of the field weakening function can be achieved by setting a time
constant ≤ 15 ms. This means for actual speeds above rated speed a better torque-speed-
characteristic in the field weakening range:

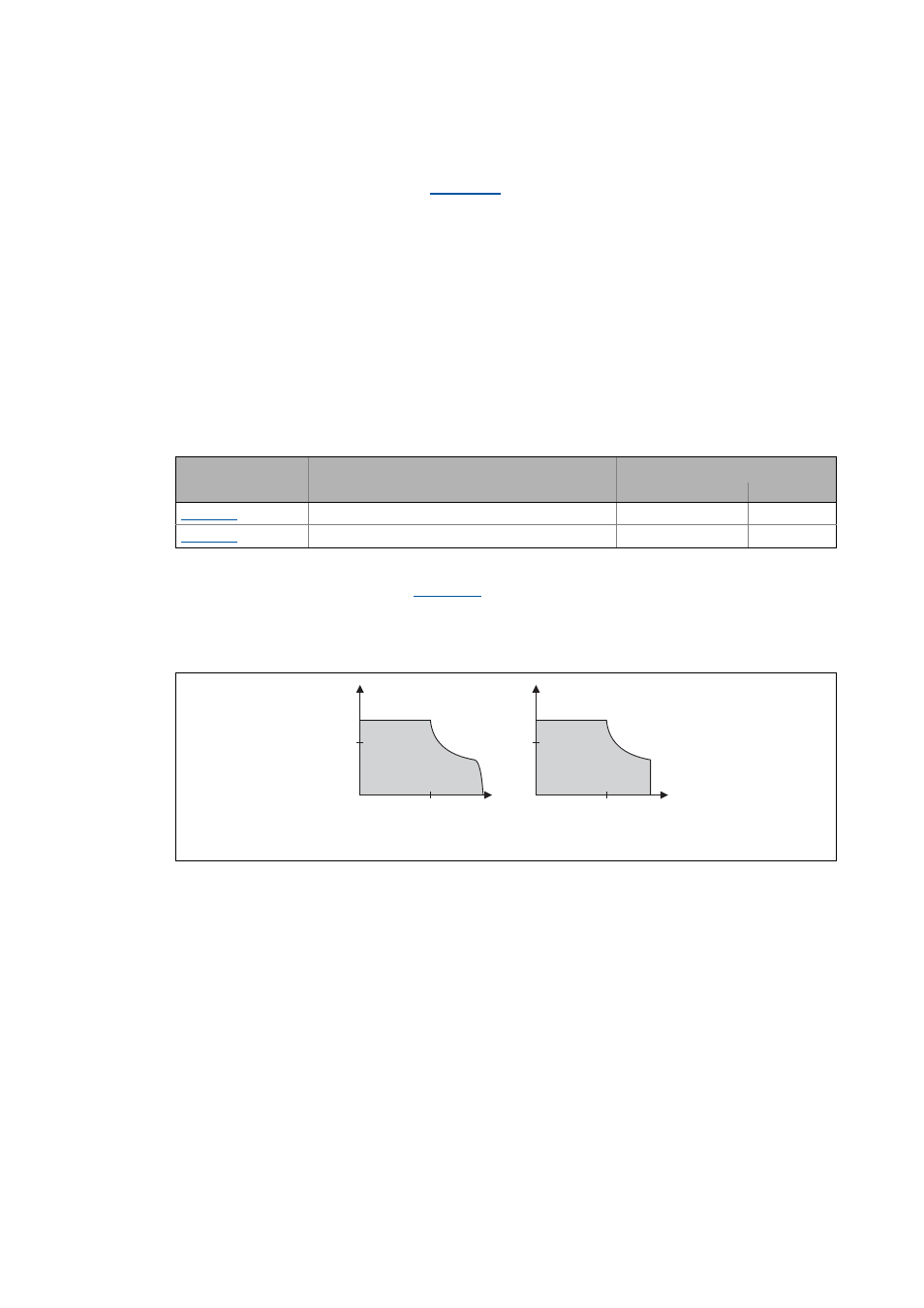

[5-10] Speed / torque characteristic diagram in the field weakening range
• For Ti > 15 ms (see ), the actual speed value slightly drops in the field weakening range if the
load torque increases in the motor mode.
• For Ti ≤ 15 ms (see ), the speed remains stable in the field weakening range if the torque is
within the M/n characteristic field highlighted in grey.
Parameter Info Lenze setting
Value Unit
C00073/2 SLVC: Vp torque controller 1.25
C00074/2 SLVC: Ti torque controller 30 ms
 Torque controller time constant Ti > 15 ms
 Torque controller time constant Ti ≤ 15 ms
1 0
n
N
n
N
M
N
M
N
M M
n n
