DRRD-12 ... 63
24 Festo – DRRD-12 ... 63-Z6 – 1310b English

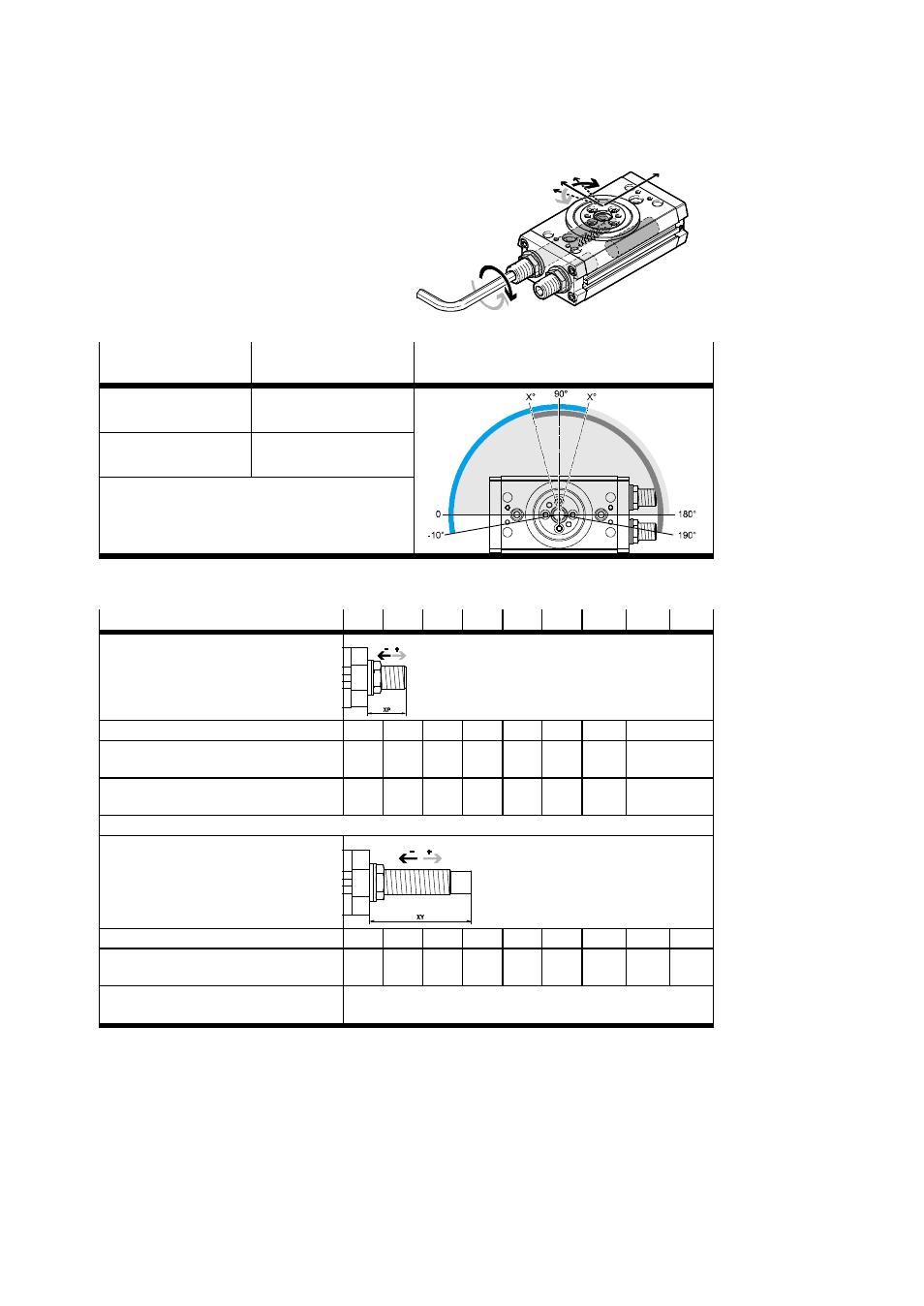

5. Turn the corresponding shock absorber until
the desired end position adjustment has been
reached.
Fig. 9
Angle adjustment Reaction Setting range related to the basic factory
setting (example DRRD-...-180)
Turn the shock
absorber clockwise Reduce the swivel angle
Turn the shock
absorber anti-clockwise Increase the swivel angle
Tab. 3
The following settings are possible:
Size 12 16 20 25 32 35 40 50 63
Elastic shock absorber on the
DRRD-...-P
Angle adjustment per rotation [°] 9.6 8.7 9.0 6.6 8.2 8.2 5.4 –
Max. shock absorber setting
XPmax [mm] 18.8 19 19.4 26.1 31.8 43.2 44.7 –
Min. shock absorber setting
XPmin [mm] 6 6 6.7 9 11 13.5 13.5 –
Hydraulic shock absorber on the
DRRD-...-Y9/Y10
Angle adjustment per rotation [°] 9.6 8.7 9.0 6.6 8.2 8.2 5.4 3.8 2.9
Max. shock absorber setting
XYmax [mm] 29.9 38.5 43.3 64.9 80.7 99.9 101.4 130.4 126.9
Min. shock absorber setting
XYmin up to the minimum swivel angle
(
12 Technical data)
Tab. 4
