Stacking stand installation
Galaxy
® 170 R/170 S CO
2
Incubators
English (EN)
96

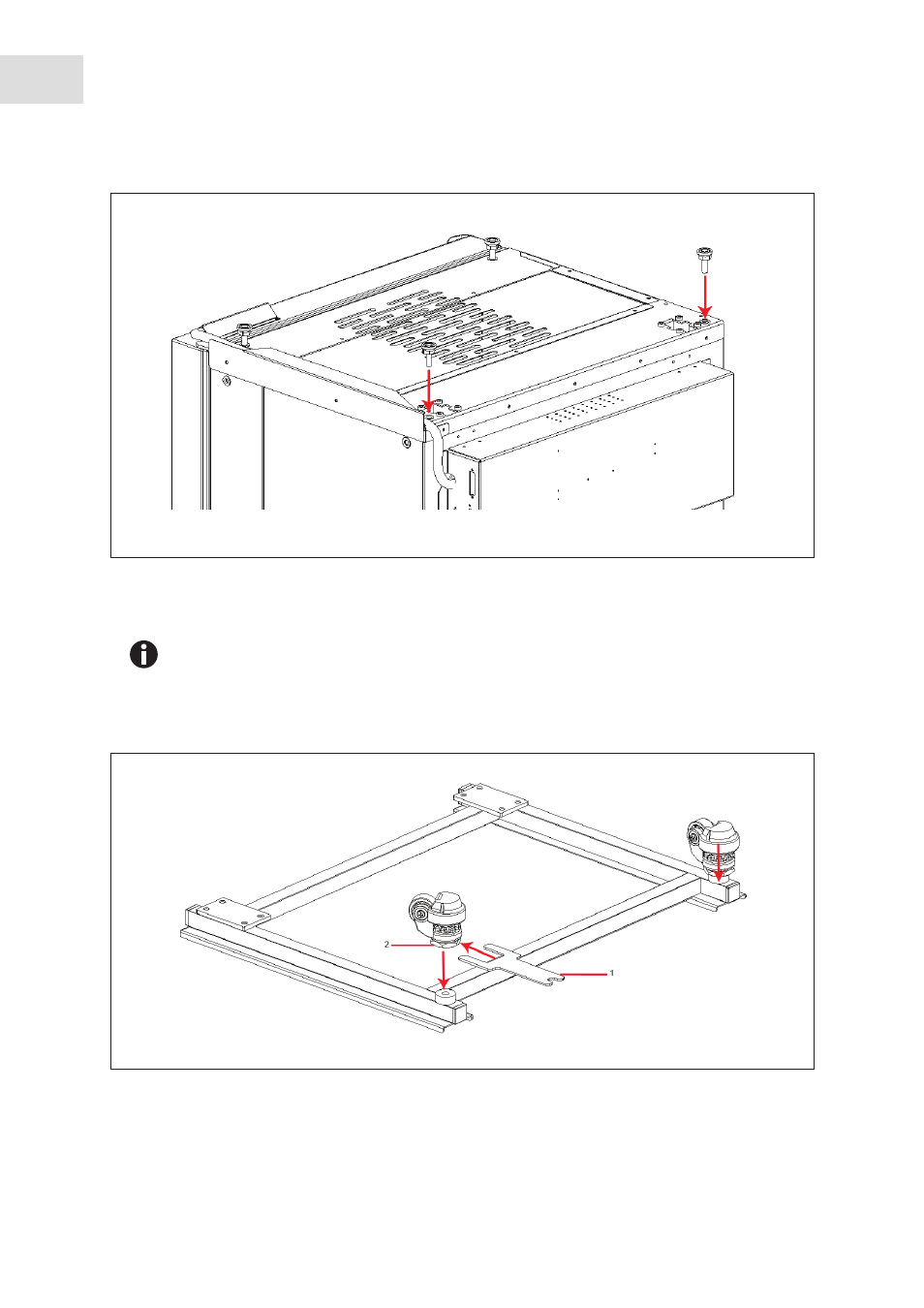

Abb. 13-2: Feet Installation
Fig. 13-2: Feet Installation
4. Adjust the height of the feet to ensure that the incubator is level.
5. Repeat steps 1-4 for the second incubator.
6. Using the wrench provided, fit the adjustable castors to the front underside of the lower stacking frame
(see Figure below).
Abb. 13-3: Lower Stacking Frame Castor Installation
Fig. 13-3: Lower Stacking Frame Castor Installation
The feet on the bottom incubator should ideally be set at a height of 32mm, and the feet on the
top incubator at 32mm.
1 Wrench 2 Castor
