Eppendorf Galaxy CO2 Sensor User Manual
Page 24
Installation
Galaxy
®
170 R/170 S CO
2
Incubators
English (EN)
24

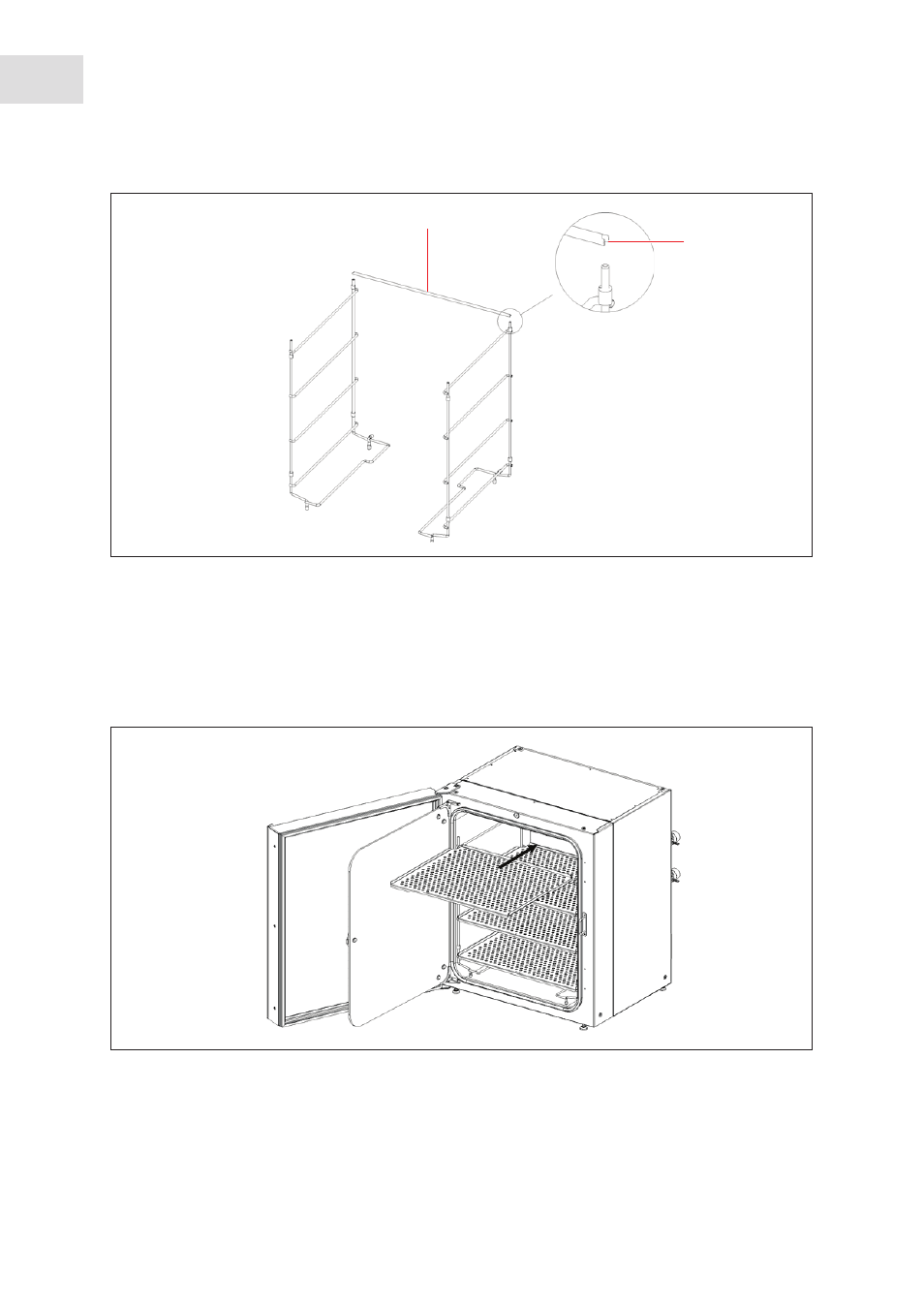

Abb. 4-3: Installing tie bar to shelf racks
Fig. 4-3:
Installing tie bar to shelf racks
5. Install the shelves, top to bottom. Ensure that each shelf’s anti-tip groove is properly inserted (faced
upward and to the rear of the incubator) onto each of the shelf rack guides.
Abb. 4-4: Inserting shelves
Fig. 4-4:
Inserting shelves
1
Tie rod
2
Tie rod anti-tip groove
1
2
