Installation

Galaxy

®

170 R/170 S CO

2

Incubators

English (EN)

27

3. Attach supplied 6 mm bore PVC hose with large white filter to gas inlet connector.

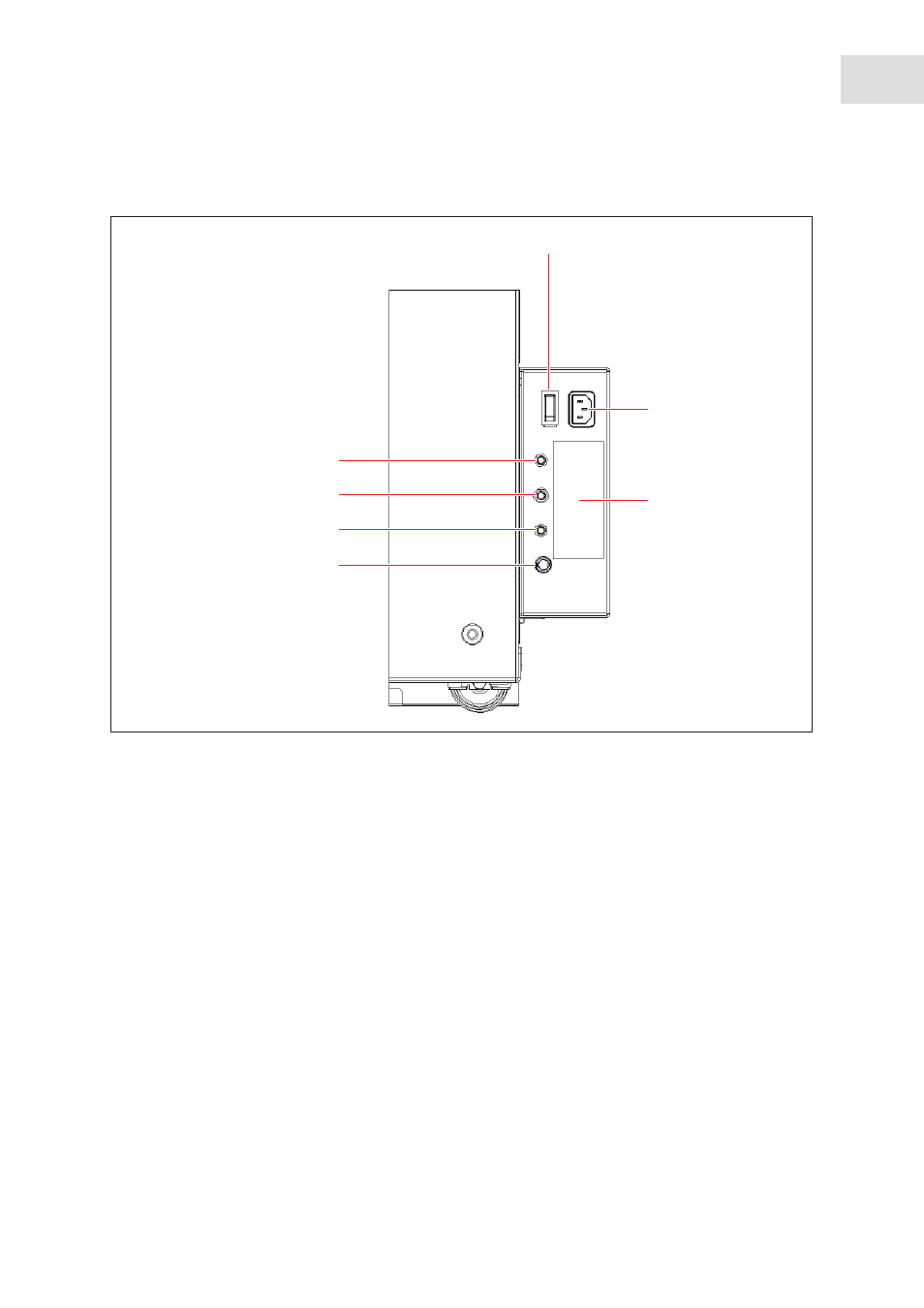

Abb. 4-7: Making connections

Fig. 4-7:

Making connections

4. Attach recommended optional in-line pressure regulator (not supplied), if applicable. For connection

location (see Fig. 2-1 on p. 9).

1

On/Off switch

2

Mains/power cord receptacle

3

Label

4

Fuse holder

5

N

2

inlet (170 R optional only, option not

available on 170 S)

6

CO

2

inlet

7

O

2

inlet (170 R optional only, option not

available on 170 S)

1

2

3

4

5

6

7
