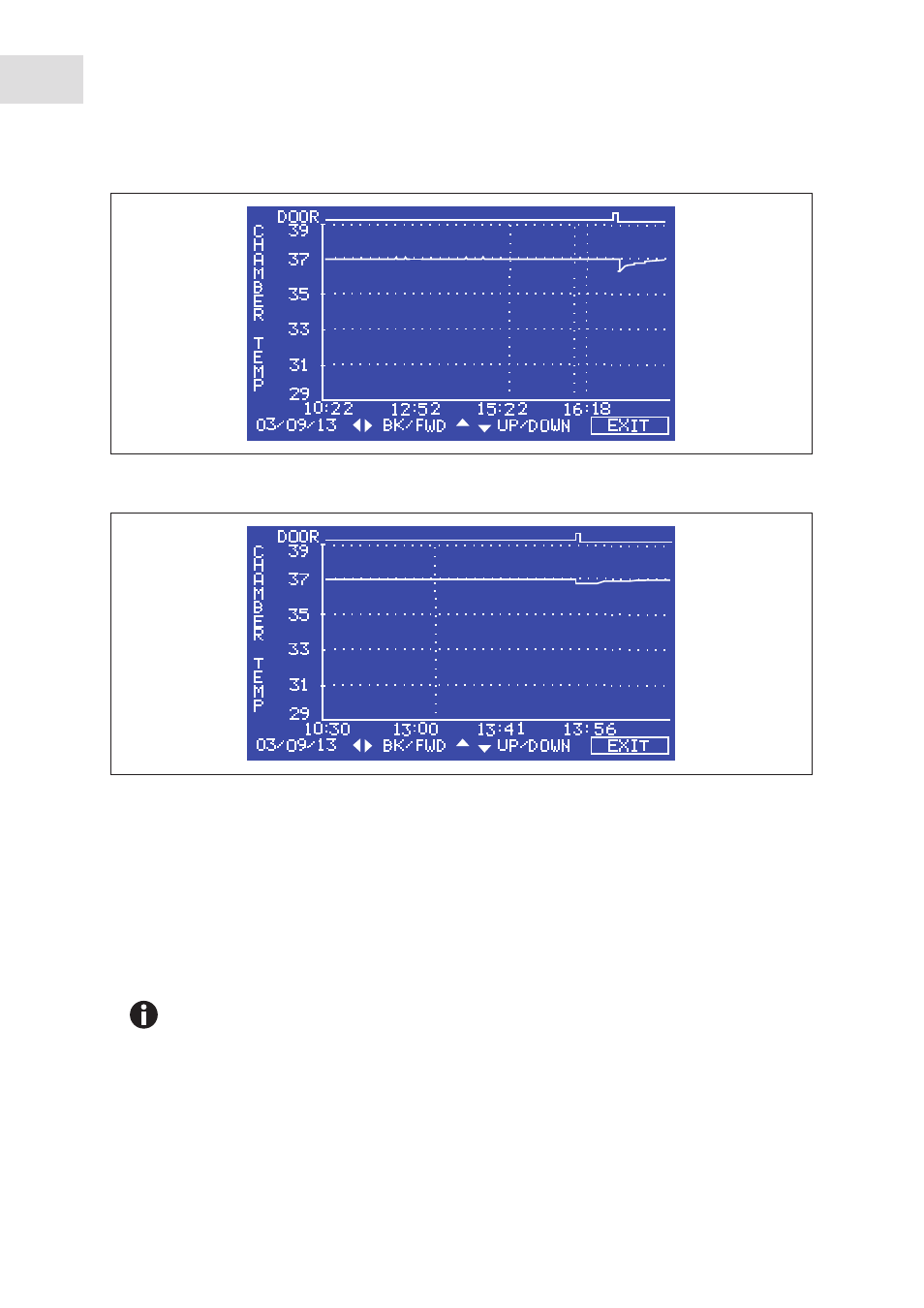

Abb. 6-6: TEMPERATURE GRAPH + DOOR OPEN BAR CHART screen
Fig. 6-6: TEMPERATURE GRAPH + DOOR OPEN BAR CHART screen
Abb. 6-7: Dotted vertical line showing compressed/decompressed data.
Fig. 6-7: Dotted vertical line showing compressed/decompressed data.
Compressing data allows memory space to be maximized. Once the memory space has been filled, the
earliest events are overwritten as they are replaced by the latest recording.
6.5.3 CO
2
GRAPH + DOOR OPEN BAR CHART
These graphs record in a way similar to the Chamber Temperature graphs. The specification for CO
2
is ±
0.1 %.
6.5.4 DIAGNOSTIC CHAMBER ELEMENT GRAPH
This graph records chamber element temperature over time to assist troubleshooting.
Both CO
2
and temperature graphs share the same time axis. If the time axis changes to
accommodate data in one graph, it will also change in the other graph.
