New Brunswick Operating manual

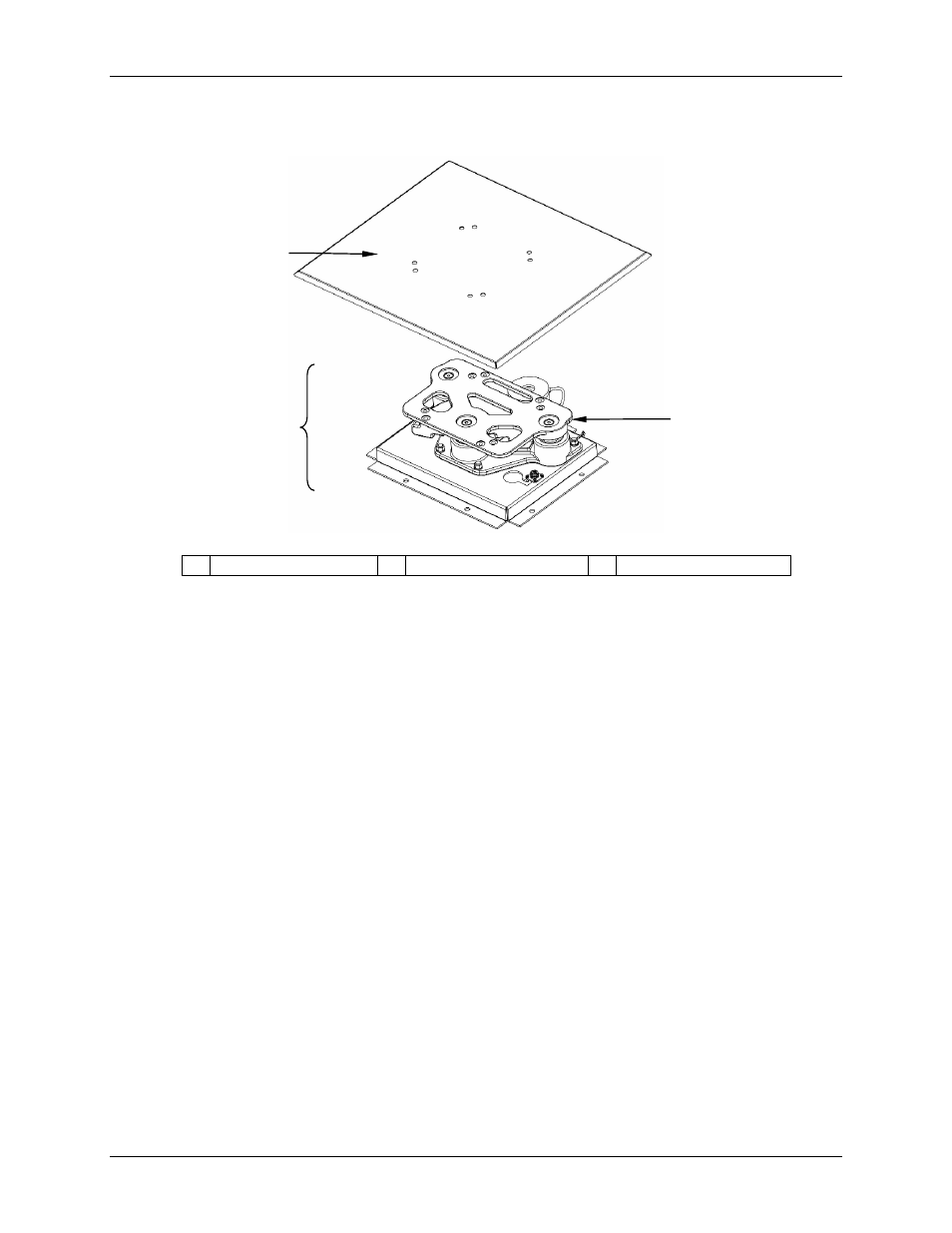

Figure 30: Drive Assembly
1 Spill deflector 2 Drive assembly 3 Bearing housing
To replace the drive belt, follow these steps with reference to Figures 30 & 31:
1. Loosen the four hex nuts that hold the motor assembly in place and remove the old belt.
2. Guide the belt onto the two pulley grooves.
3. Tighten the motor nuts.
4. Check the belt adjustment by applying finger pressure to the belt midway between the
two pulleys. The belt should deflect approximately 3/8-inch (9-10 mm).
5. If the deflection is not right, loosen the nuts, readjust the belt, then retighten the
motor nuts.
1
3 2
