6.1 Platform Assemblies
The Innova 43/43R can be used with a variety of New Brunswick platforms that will
accept a wide range of clamps for flasks, test tubes, etc. A platform, which is required
for operation, is a separate item, not included with the shaker assembly. Refer to
Section 9.11 for details on available platforms and platform accessories.
6.2 Installation of Platform
Prior to use, a spill cover and platform must be installed on the shaker. The shaker
is shipped with four Allen head platform screws installed in the bearing housing (see
Figure 5 below, which also shows the spill cover that you must install).

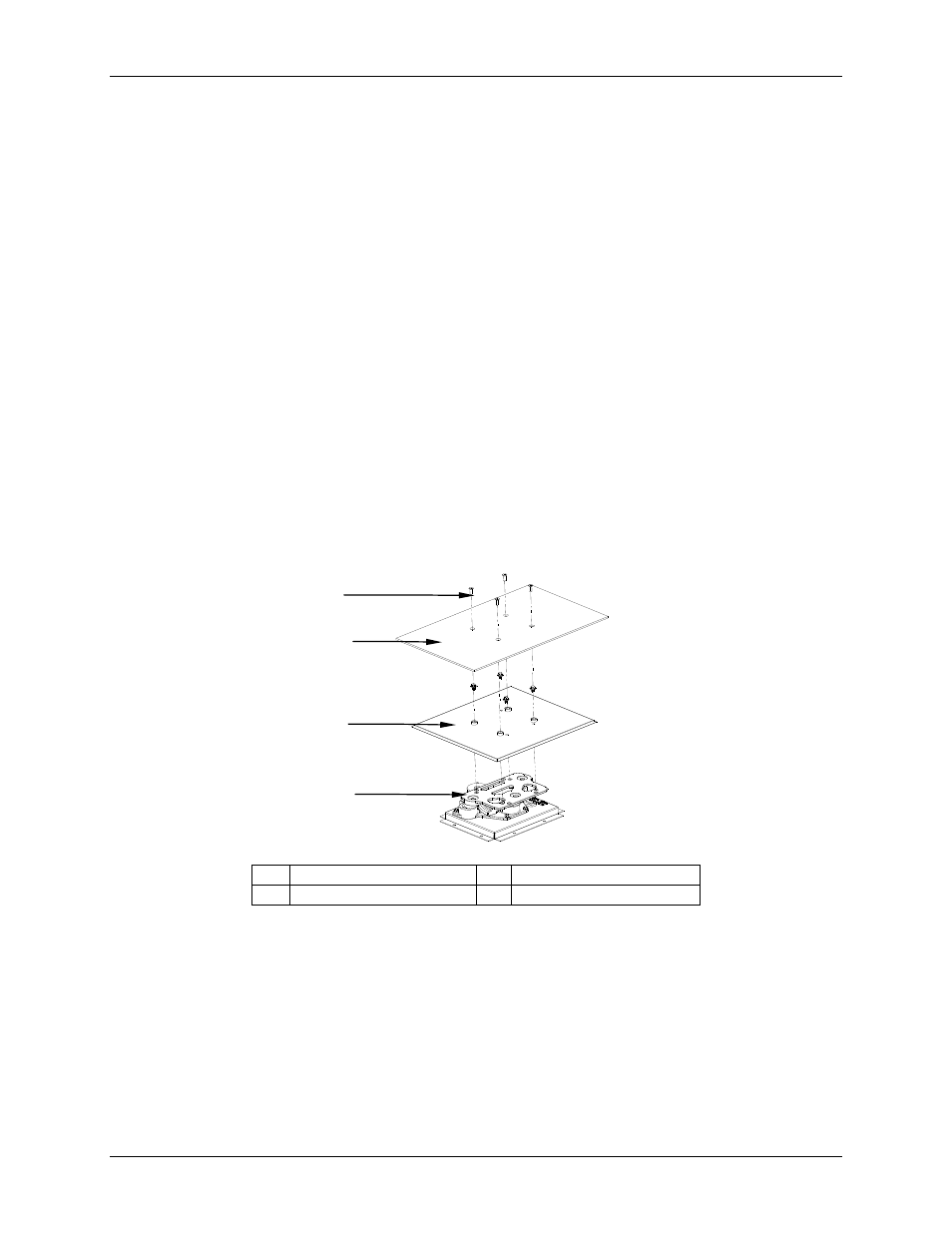

Figure 5: Installing Platform & Spill Cover
1 Platform screws 3 Spill cover
2 Platform 4 Bearing housing
6.3 Installation of Clamps
Flask clamps purchased for use with universal platforms (see Section 9.11.2) require
installation. Clamps are installed by securing the base of the clamp to the platform with
the correct type and number of screws. All clamps are shipped complete with hardware.
