16
Innova 43 & 43R Incubator Shakers  M1320-0050 Operating manual
5.2 LCD Display
When the shaker is powered up, using the Power Switch located on the right side of the
machine (see Figure 3), the initial display screen will remain for a short time while the
system boots up. Then the main screen, called
DISP for Display, appears (see Figure 4).
This screen will indicate the same parameters that were in effect when the power was
turned off.

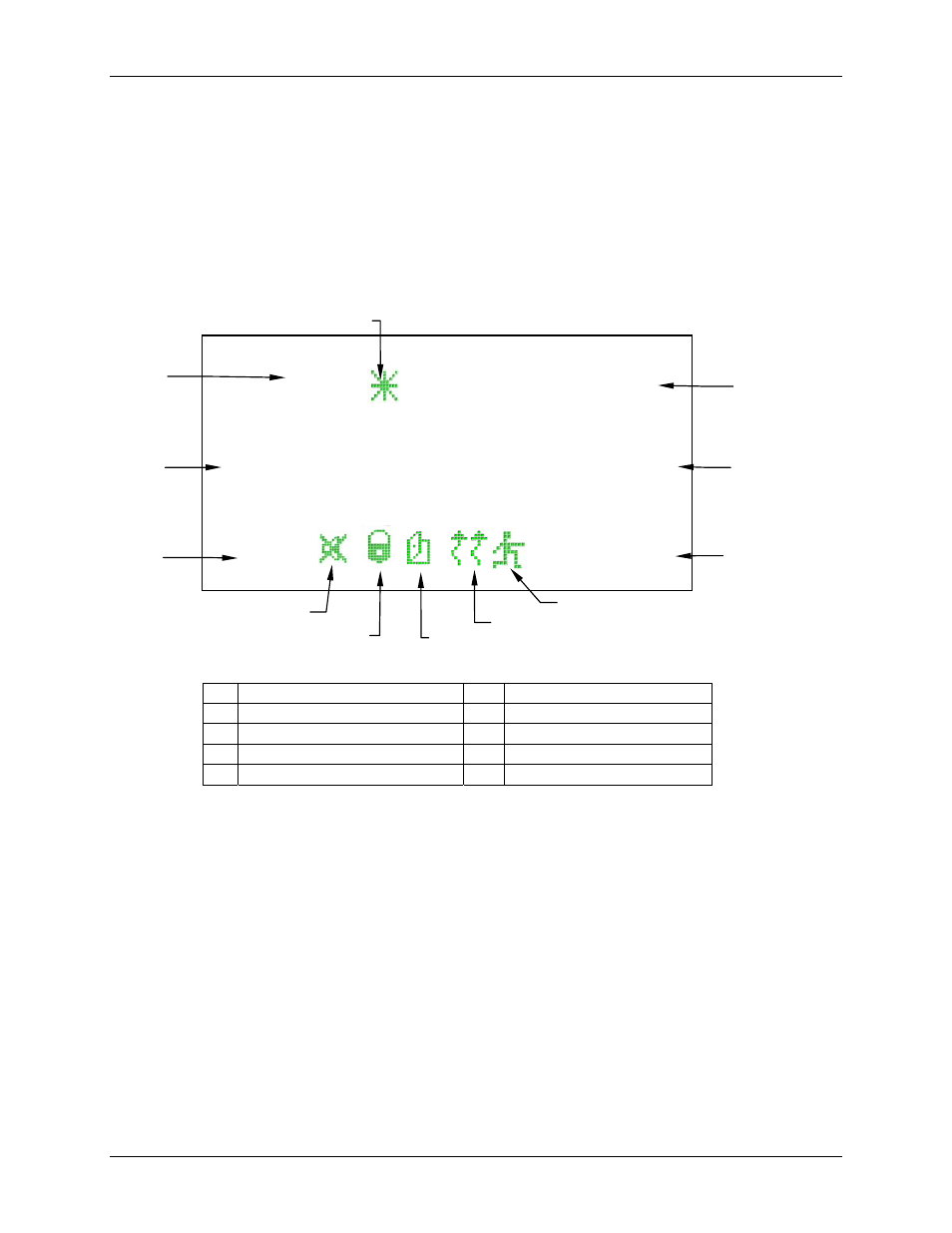

Figure 4: Display Screen
ºC 23
RPM 120
DISP We 13 : 44
1 Parameters 5 Program running
2 Temperature offset 6 Heater on
3 Actual parameter values 7 Lid open
4 Day & 24-hour time 8 Parameters locked
9 Audible alarm muted 10 Screen name
 For an explanation of the icons on the display screen, see Section 5.4.
 Turning the Control Knob will highlight functions and/or values that can be changed.
 Whenever you turn the Control Knob, the chamber light will go on (for details, see
Section 5.9).
For more information on working in the Display Screen, see Section 7.4.1.
5.3 Changing Screens
You can change screens displayed by highlighting the screen name field in the lower left
corner, pressing the Control Knob in until it clicks, rotating the Knob left or right (which
also makes clicking sounds) to the desired screen and clicking the Control Knob in again.
Table 1 describes the various screens:
