4 4 I I
N N S S T T A A L L L L A A T T I I O O N N
CRUSH WARNING!
Do not attempt to lift the Innova 43/43R by hand.
Always use a lifter or other suitable equilment when raising or handling
the shaker.
4.1 Leveling the Shaker
NOTE:
The Innova 43/43R has casters and leveling feet. When you need to move
the shaker across the floor, make sure the feet are raised enough so that the
casters can roll freely without scraping the floor with the feet. At all other
times, make sure the feet are down, to avoid any unintended rolling.
Make sure that the shaker is placed on a level surface, in its intended location.
Lower all four adjustable feet as described below until they are solidly on the surface. If
the shaker is not level, adjust the feet as needed to achieve leveling:
1. Immobilize the top lock nut against the shaker with one wrench whenever you
adjust the foot, to keep the threaded stud from falling out (see Figure 2).

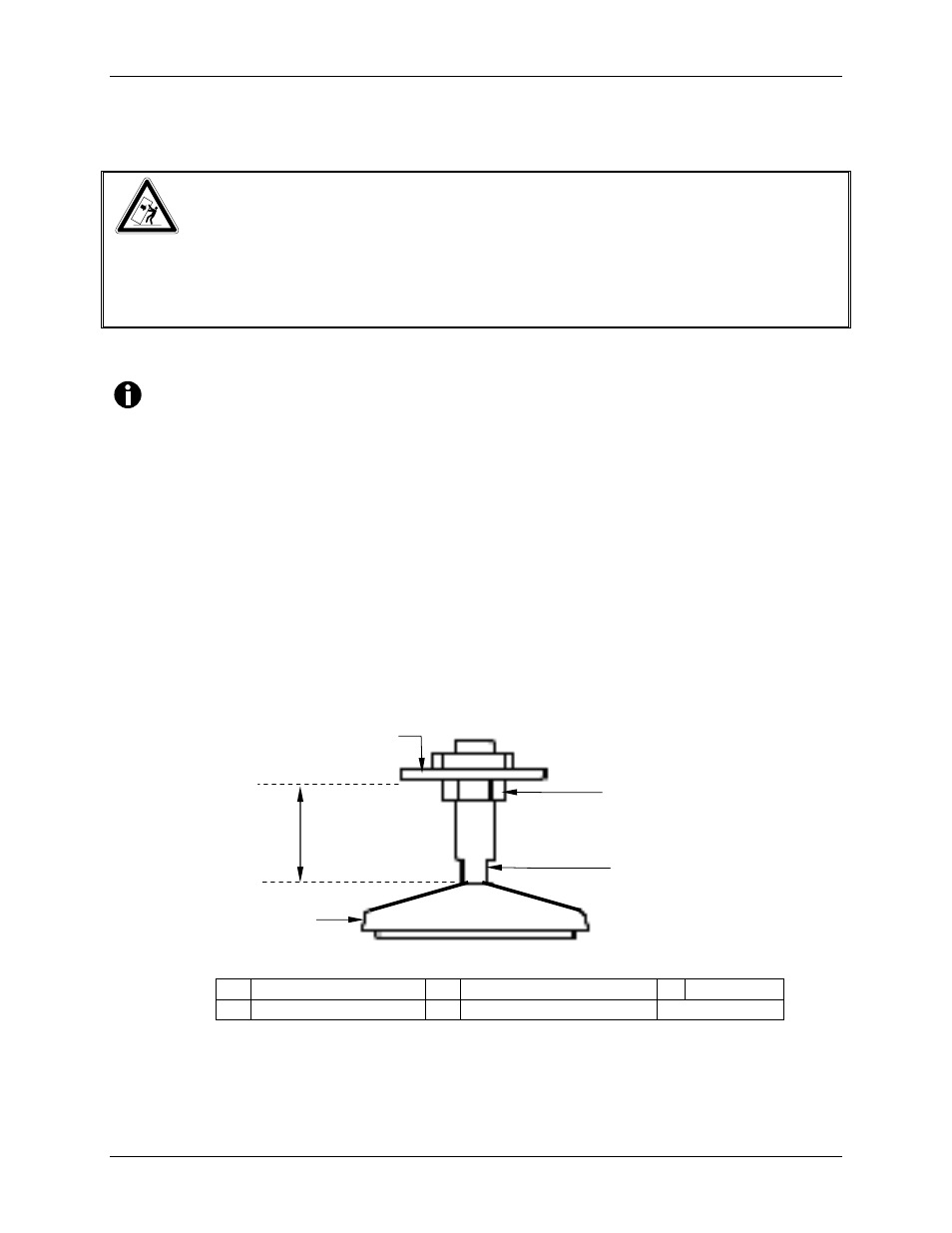

Figure 2: Adjustable Foot (as shipped)
1 Bottom of shaker 3 1.75 inch (4.45 cm) 5 Foot
2 Lock nut 4 Flats for wrench
2. With a second wrench against the flats of the threaded stud, just above the foot.
Rotate clockwise to lower the foot or counter-clockwise to raise the foot.
1
2
4
5
3
