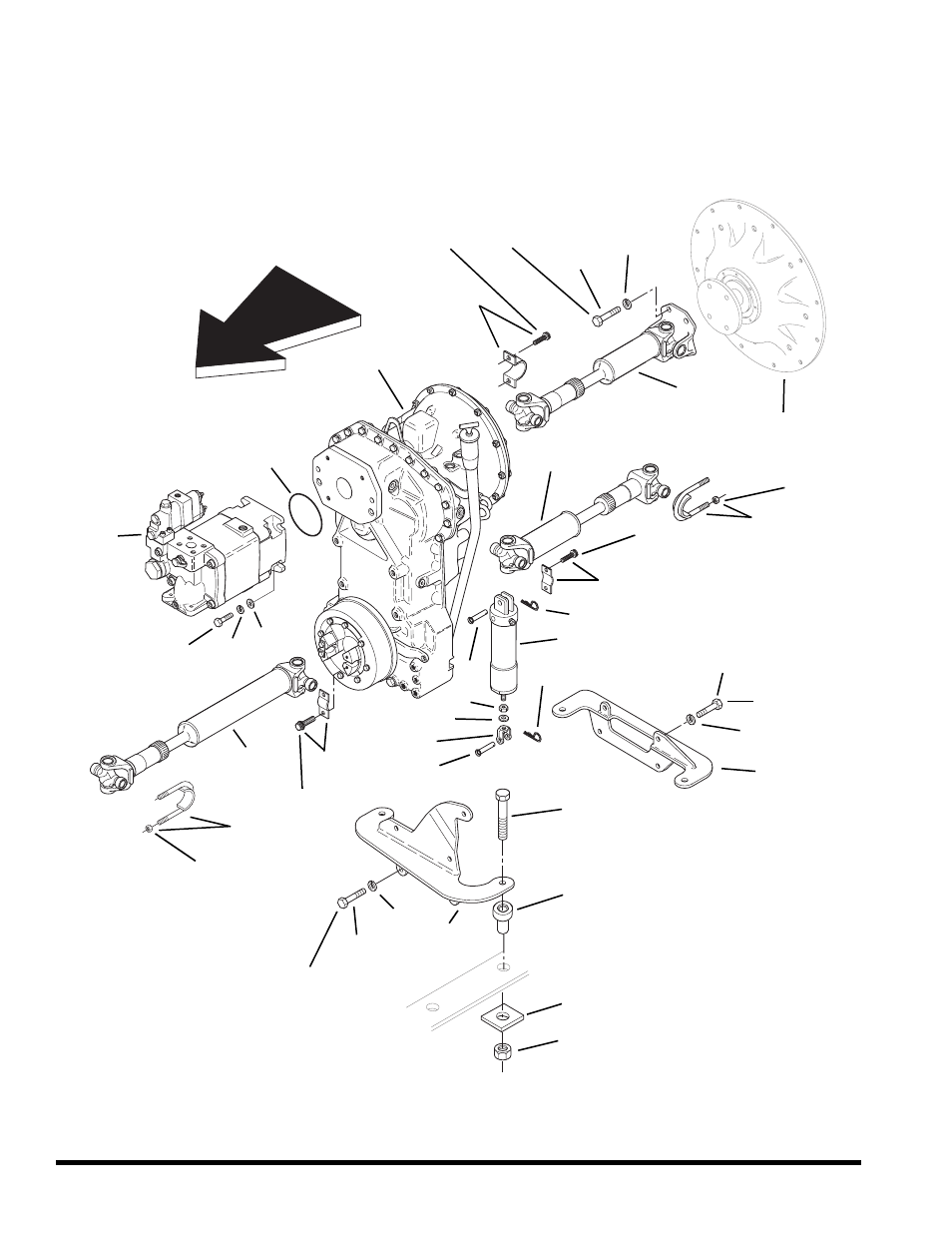

SECTION 3
TRANSMISSION MOUNTING
(S/N 9909 & After)
PH1240
17
16
18
1
3
14
20
21
22
13
2
15
27
28
19
26
19
11
12
6
9
8
7
10
5
12
11
4
25
24
23
Torque to
32 - 37 lb/ft
(43 - 50 Nm)
Torque to
302 lb/ft
(409 Nm)
Torque to
302 lb/ft
(409 Nm)
Torque to
34 lb/ft
(46 Nm)
Torque to
35 lb/ft
(47 Nm)
Torque to
48 lb/ft
(65 Nm)
Torsion Coupler
29
Front
15
Torque to
34 lb/ft
(46 Nm)
13
Torque to
32 - 37 lb/ft
(43 - 50 Nm)
8042/10042/10054 Origin 2/00
