Page 174
170
SECTION 6

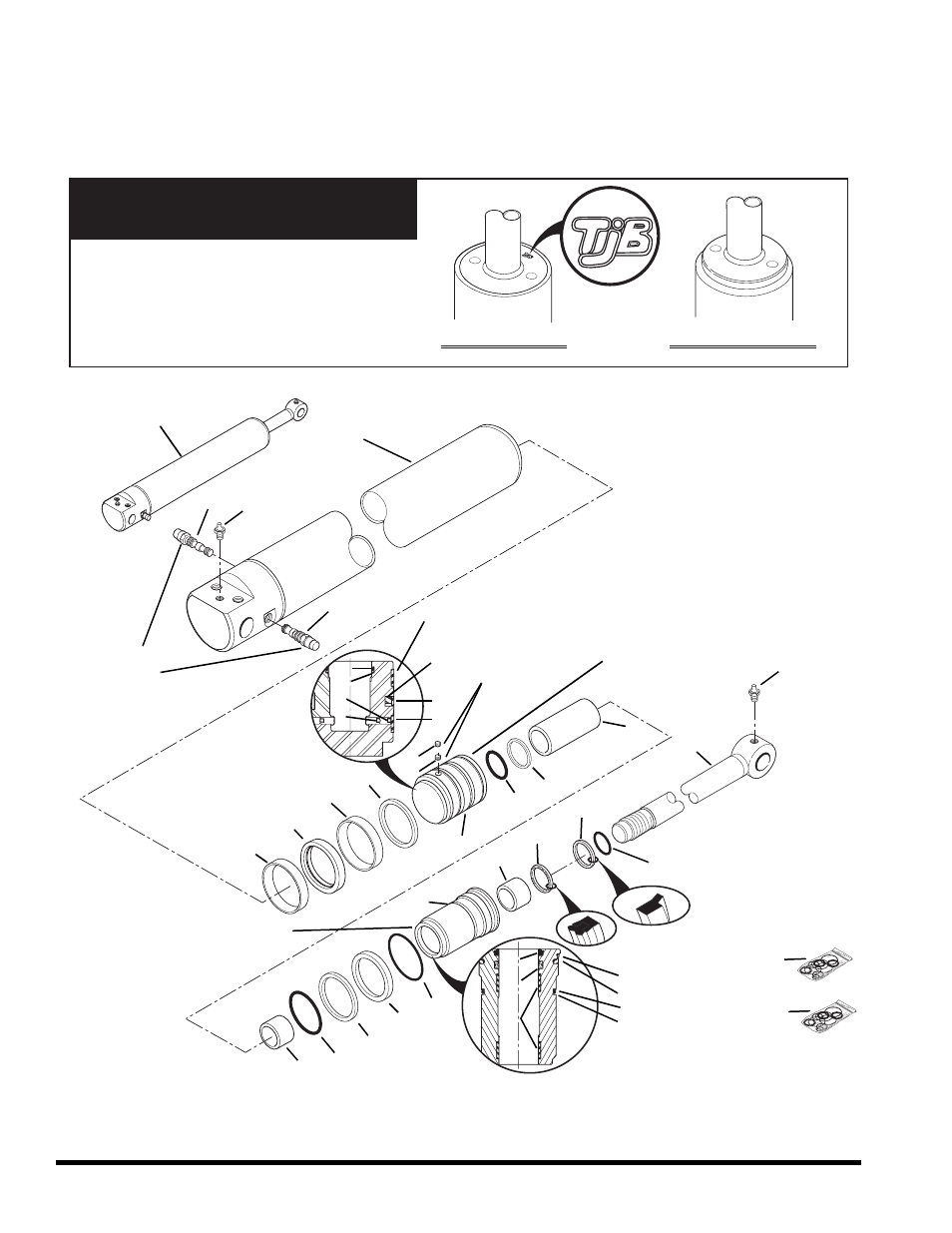

BOOM EXTEND CYLINDER
(Current Production)
CURRENT PRODUCTION
VENDOR
STAMPING
EARLY PRODUCTION
IMPORTANT:
There are two similar but distinctly different Boom Extend
Cylinders. Make sure you know which version you have
before ordering replacement parts. On Early Production
cylinders, the gland is installed flush with the cylinder
tube and has TJB stamped on the gland. On the
Current Production cylinders, the gland has a lip that
bottoms out against the cylinder tube.
PH2031
PF0760
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
20
14
11
7
8
20
17
20
19
19
18
16
12
21
15
13
9
Torque to
155 - 165 lb/in
(18 - 19 Nm)
Torque to
300 - 400 lb/ft
(407 - 542 Nm)
Loctite and Torque to
1800 - 2000 lb/ft
(2441 - 2712 Nm)
Torque to
150 - 160 lb/ft
(203 - 217 Nm)
22
22
23
23
25
8042/10042/10054 Rev. 2/00
