373
SECTION 10

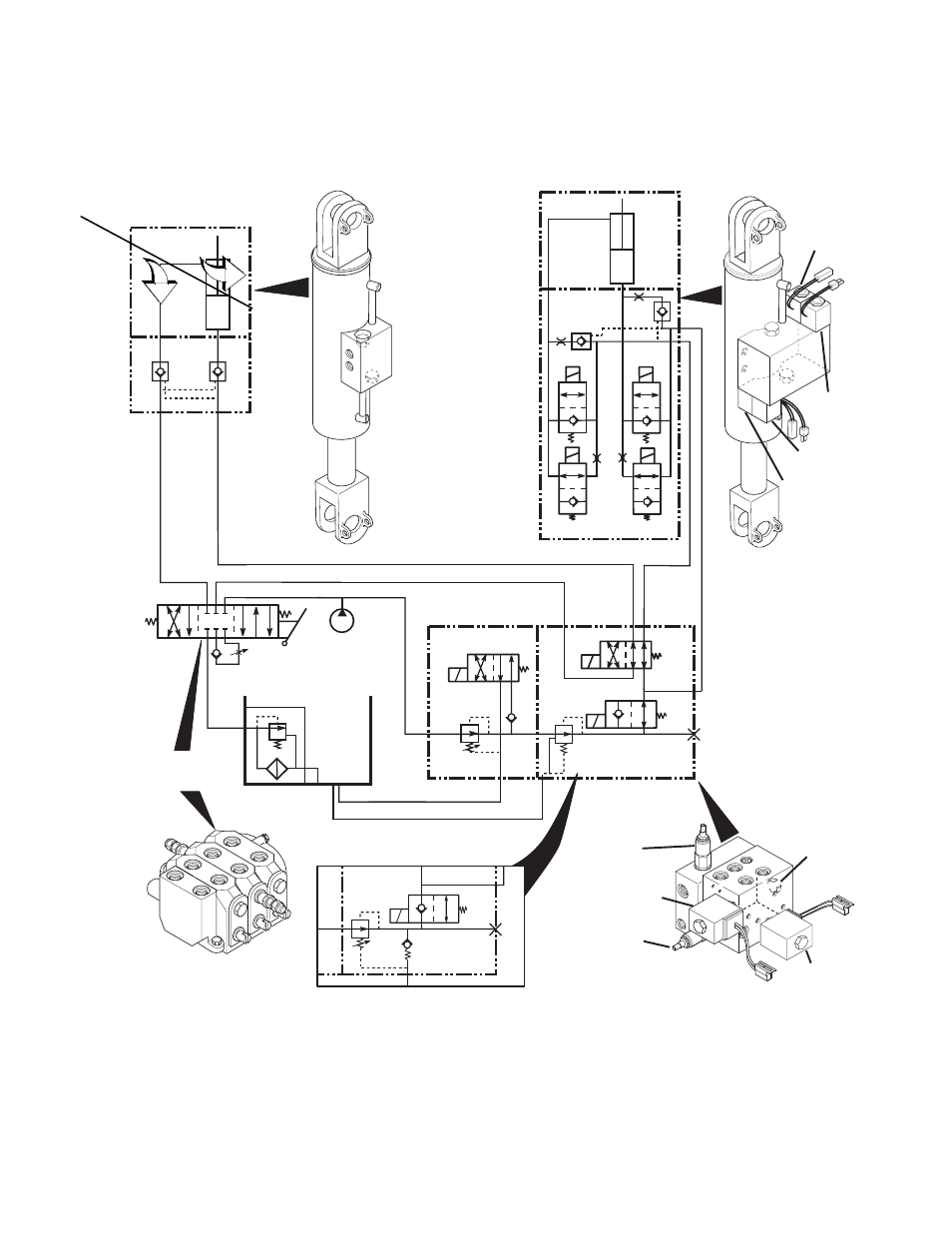

8042/10042 Stabil-TRAK Hydraulic Circuit
Final Positioning Mode
(S/N 9908 & Before)
CONDITIONS:
Boom raised above 40°, vehicle in forward or reverse; proximity switch relay energizes solenoids 5 and 6; solenoids 1, 2, 3, and 4 are de-
energized.
Rear axle stabilizer cylinder oil flow is dampened to the hydraulic reservoir through the .060 orifices. The rear axle will react to terrain changes,
however the reaction will be dampened by the orifices.
The operator controls speed of frame tilt of the front axle in response to the orifices rear axle.
.029
.060
500 - 525
PSI
VARIABLE
DISPLACEMENT
PUMP
46 GPM
PRESSURE REDUCING
VALVE BLOCK
STABILIZER
VALVE
BLOCK
HYDRAULIC
TANK
SOL. 3
SOL. 1 SOL. 2
SOL. 4
SOL. 5 SOL. 6
TP
FRAME TILT
CYLINDER
STABILIZER CYLINDER
.029
PRESSURE
REDUCING
VALVE
500 - 525 PSI
SOLENOID
3
SOLENOID
4
PRESSURE REDUCING VALVE BLOCK
AND STABILIZER VALVE BLOCK
(located on valve plate under cab)
SOLENOID
1
SOLENOID
5
SOLENOID
6
SOLENOID
2
CONTROL VALVE
(located on valve plate under cab)
FRAME TILT
VALVE
SECTION
P
T
BRK
P
SR
TC
TP
V
SB
T
E
R
E
R
PRESSURE REDUCING
VALVE
S/N 2195 & After 200 +/- 25 PSI
(S/N 2194 & Before *60 PSI)
CHECK VALVE
*100 PSI
(S/N 2194 &
Before Only)
S/N 2194 & BEFORE
TP
*60 PSI
*100 PSI
SOL. 3
200 +/- 25 PSI
SH0550
Origin 2/00
