SECTION 9

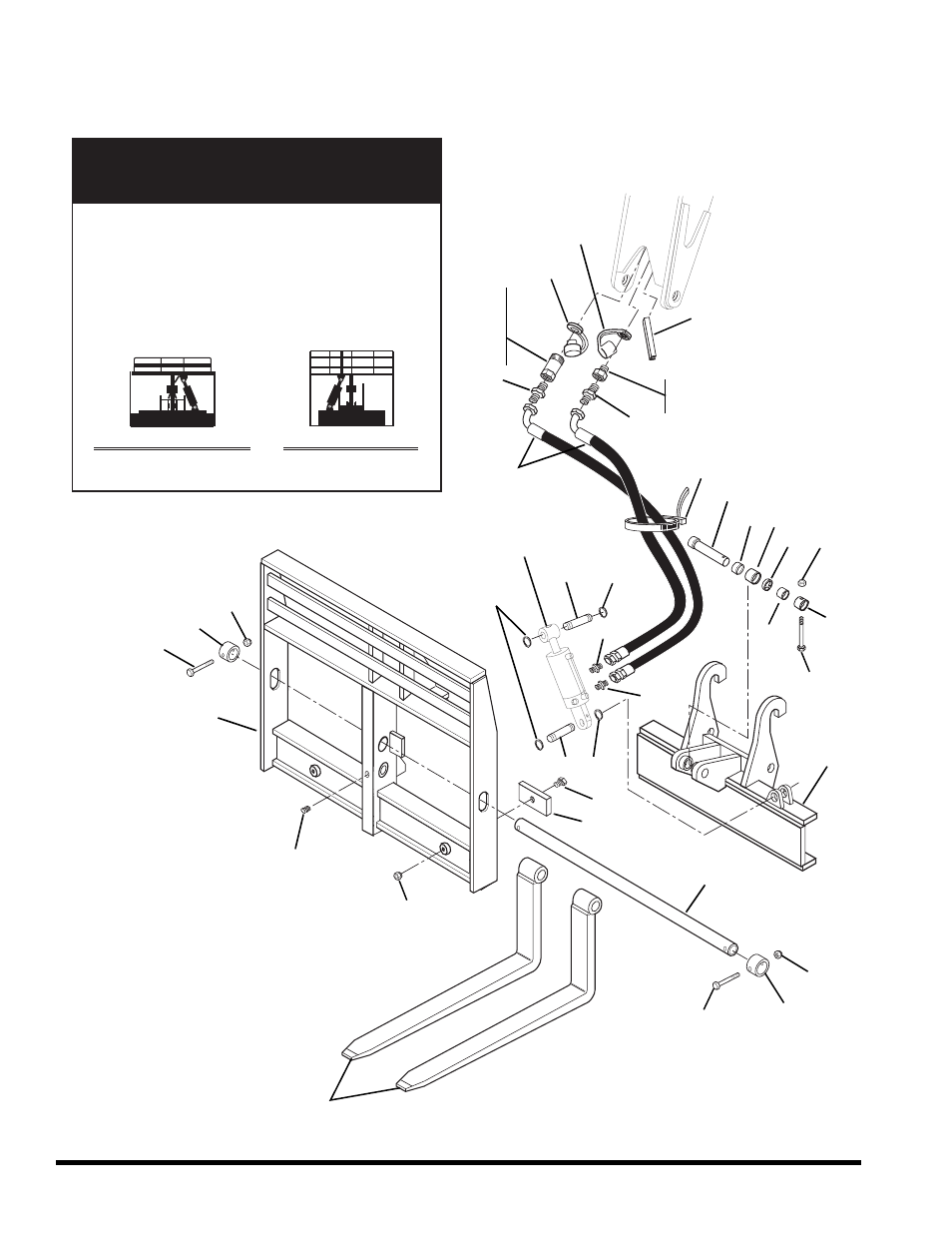

SIDE TILT CARRIAGE - EARLY PRODUCTION
(Optional)
IMPORTANT:
There are two similar but distinctly different Side Tilt
Carriages. Make sure you know which version you
have before ordering replacement parts. All reference
to the right or left side are given from the operator's
seat looking forward. An "Early Production" Carriage
has its hydraulic cylinder attached on the operator's
left side. The "Current Production" Carriage has its
hydraulic cylinder attached on the right side, out of the
operator's line of sight.
CURRENT PRODUCTION EARLY PRODUCTION
(VIEWED FROM OPERATOR'S SEAT LOOKING FORWARD)
1
2
3
4
5
6
7
8 9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
30
31
32
33
34
11
12
12
31
32
33
8
11
29
27
28
Side Tilt
Cylinder
15
PA1153
8042/10042/10054 Rev. 2/00
