Page 184
180

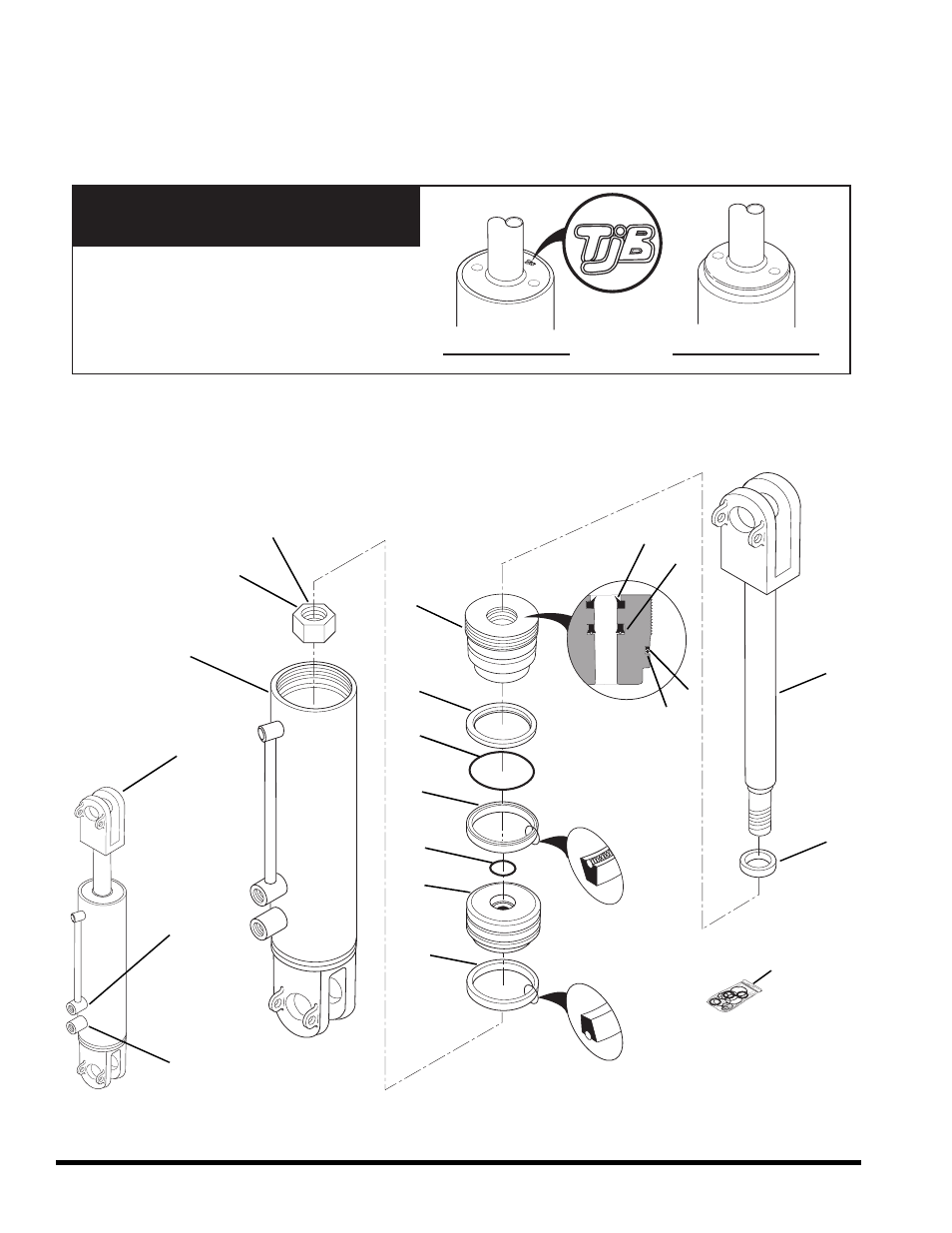

SECTION 6
SLAVE CYLINDER
(Early Production)
CURRENT PRODUCTION
VENDOR
STAMPING
EARLY PRODUCTION
IMPORTANT:
There are two similar but distinctly different Slave
Cylinders. Make sure you know which version you have
before ordering replacement parts. On “Early Production”
cylinders, the gland is installed flush with the cylinder
tube and has “TJB” stamped on the gland. On the
“Current Production” cylinders, the gland has a lip that
bottoms out against the cylinder tube.
PH0372
2
3
4
5
6
7
8
9
10
11
12
13
14
1
5
7
8
Retract
Port
Extend
Port
Apply Loctite #271 to threads.
Torque to 500 lb/ft (678 Nm)
and stake 4 places.
PF0760
8042/10042/10054 Rev. 7/99
