383
SECTION 10

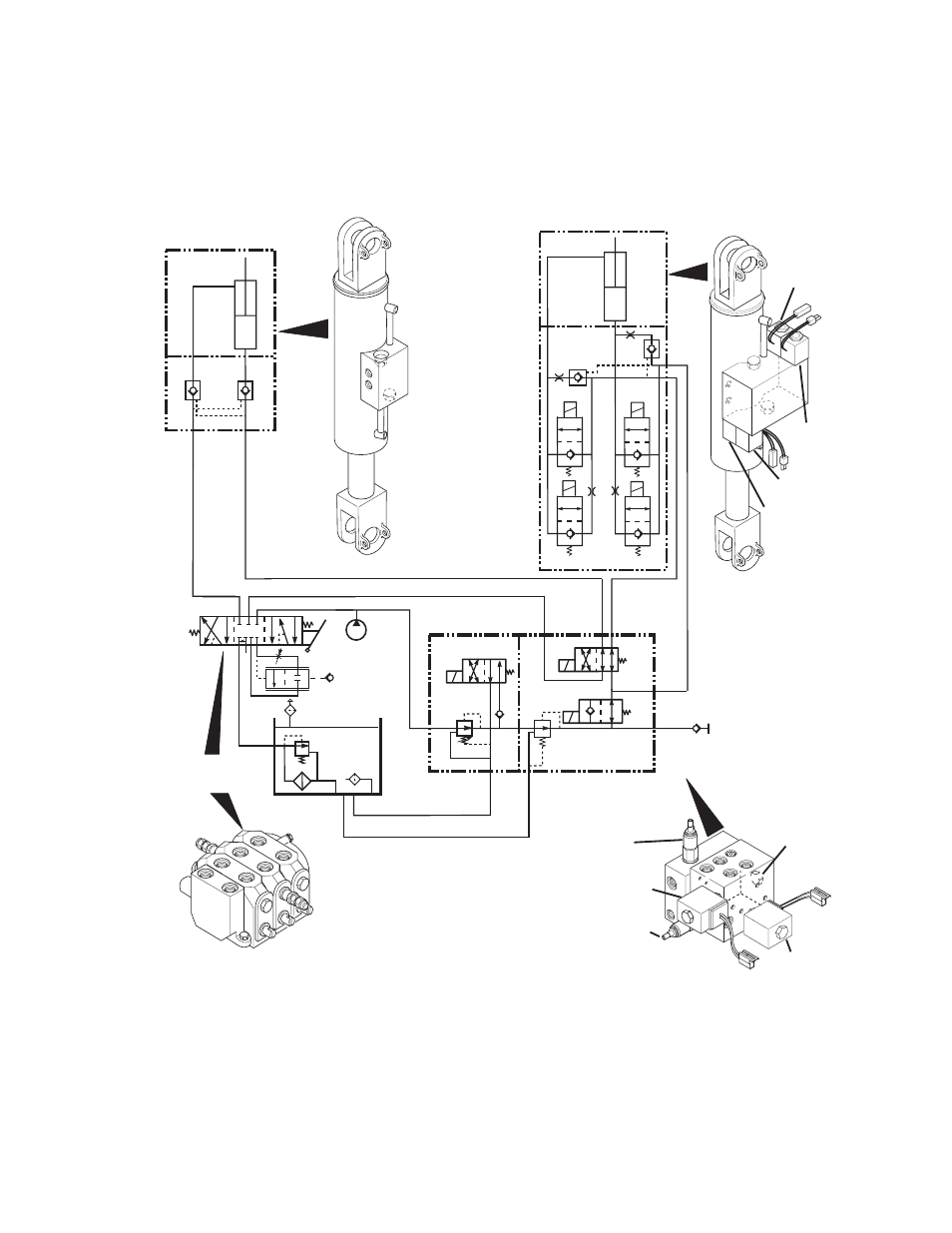

8042/10042 Stabil-TRAK Hydraulic Circuit
Locked Mode
(S/N 9909 & After)
CONDITIONS:
Boom raised above 40° and vehicle stopped with service brake on, or park brake switch engaged, or transmission in neutral.
Solenoids 1, 2, 5, and 6 de-energized and solenoids 3 and 4 energized.
Rear axle is locked. If the frame is tilted, the cylinders are slaved and tilt speed is slowed by .029 orifices.
STABILIZER
VALVE
BLOCK
PRESSURE
REDUCING
VALVE
500 - 525 PSI
PRESSURE REDUCING
VALVE
SOLENOID
3
SOLENOID
4
CHECK VALVE
*100 PSI
(S/N 2194 &
Before Only)
.029
.060
.029
SOL. 1 SOL. 2
SOL. 5 SOL. 6
FRAME TILT
CYLINDER
STABILIZER CYLINDER
CONTROL VALVE
(located on valve plate under cab)
PRESSURE REDUCING VALVE BLOCK
AND STABILIZER VALVE BLOCK
(located on valve plate under cab)
FRAME TILT
VALVE
SECTION
SOLENOID
1
SOLENOID
5
SOLENOID
6
SOLENOID
2
BRK
P SR
TC
TP
V
SB
T
E
R
P
T
E
R
500 - 525
PSI
VARIABLE
DISPLACEMENT
PUMP
45 GPM
PRESSURE REDUCING
VALVE BLOCK
HYDRAULIC
RESERVOIR
SOL. 3
SOL. 4
200 +/- 25 PSI
LS
LS
SH1190
Origin 2/00
