SkyTrak 10054 - Manual (Page 176)

172
SECTION 6

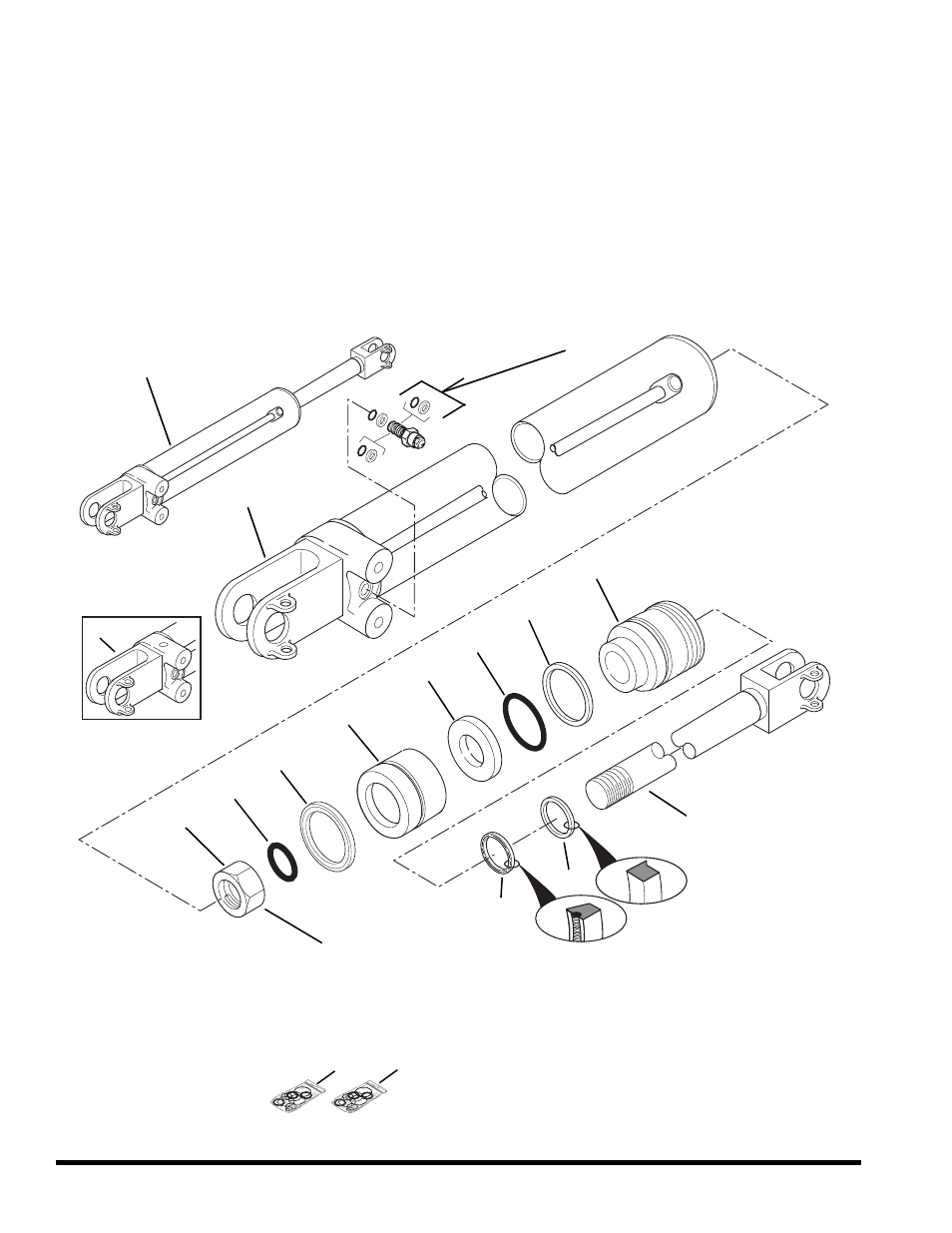

BOOM HOIST CYLINDER
(S/N 5818 & Before)
PH0231
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
2
1
PF0760
Torque to
45 - 50 lb/ft
(61 - 68 Nm)
Torque to 600 lb/ft
(814 Nm)
and Stake 4 Places
8042/10042/10054 Rev. 7/99
