SECTION 3

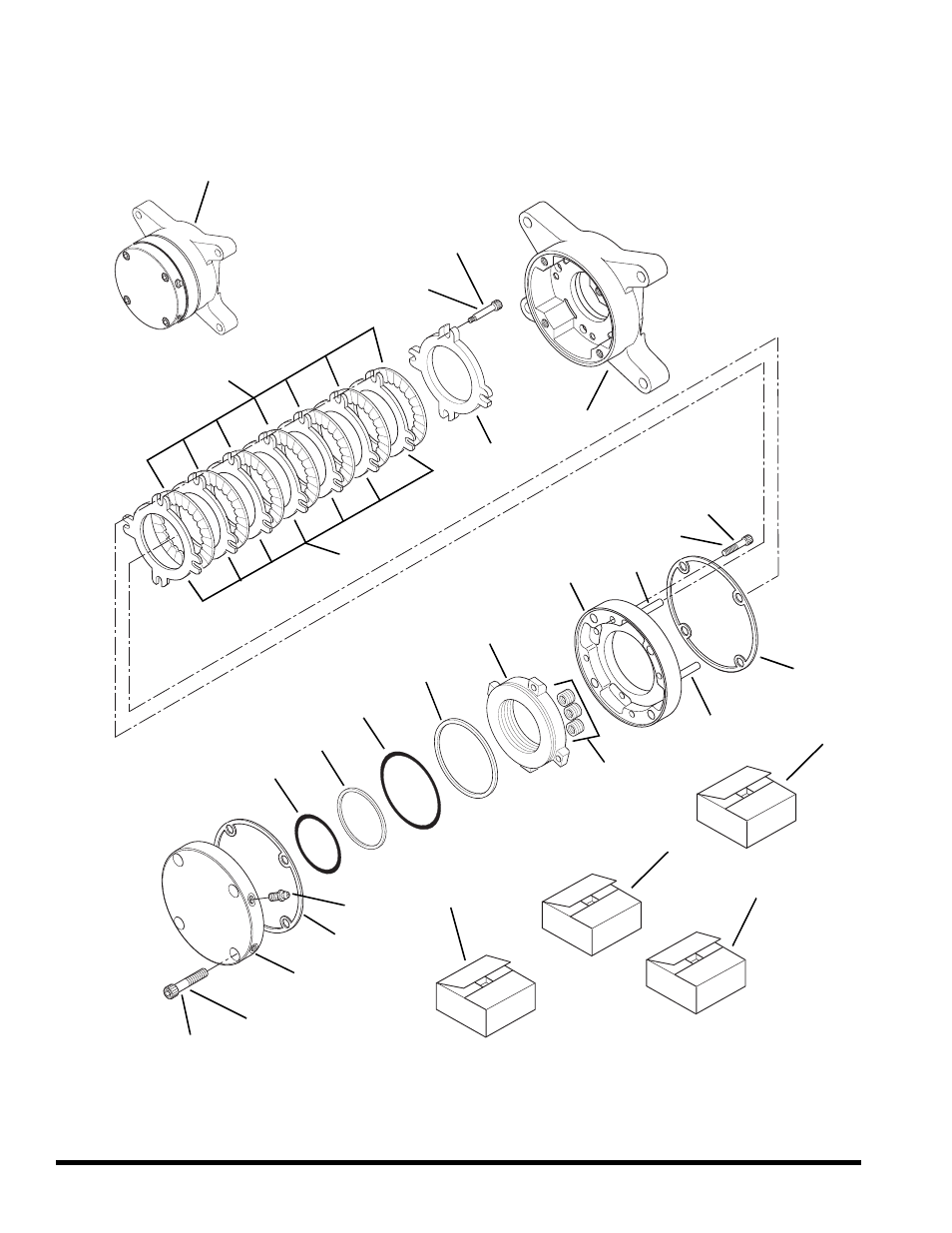

EMERGENCY BRAKE
(S/N 9908 & Before)
Kit
1
2
3
4
7
8
*9
10
11
12
13
14
15
16
17
18
19
5
6
*9
8
Apply Loctite #242
to Threads and
Torque 35 - 40 lb/ft
(47 - 54 Nm)
Apply Loctite #242
to Threads and Torque
15 - 20 lb/ft
(20 - 27 Nm)
* Earlier models did not include dowel pins (Item 9).
For earlier models, all tabs on stator discs (Item 6)
must line up over shoulder bolts (Item 3).
Apply Loctite #242
to Threads and Torque
85 - 90 lb/ft
(115 - 122 Nm)
Kit
Kit
21
20
23
PF0791
PH0131
Kit
22
