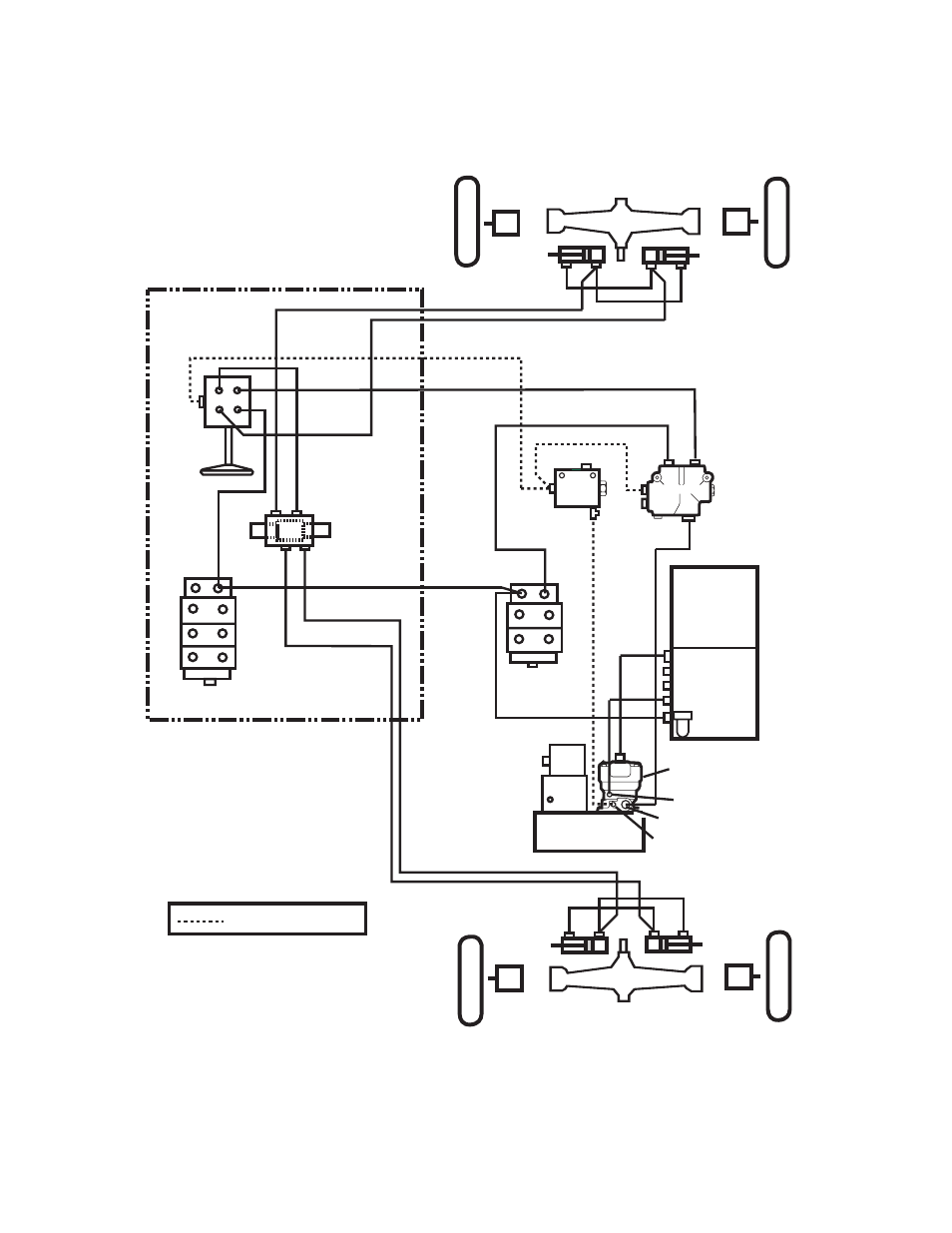

8042/10042/10054 Steering Circuit
(S/N 9908 & Before)
LOAD SENSE (LS)
Park
Brake
OPERATOR'S CAB
POWER
STEERING
UNIT
L
T
P
R
A
B
P
T
Attach
Tilt
Frame
Tilt
Aux.
Hyd.
P
T
STEER
SELECT
VALVE
CONTROL VALVE
HYDRAULIC
RESERVOIR
Boom
Ext.
Boom
Hoist
FUEL
TANK
P
T
LS
EF
CF
T
P
MAIN
FILTER
PRIORITY
VALVE
SHUTTLE
VALVE
CONTROL
VALVE
TRANSMISSION
MAIN
PUMP
LS
OUT
CONTROL
DRAIN
IN
1
2
3
LEFT
REAR
BRAKE
RIGHT
REAR
BRAKE
STEER
CYL.
STEER
CYL.
RIGHT
FRONT
BRAKE
LEFT
FRONT
BRAKE
STEER
CYL.
STEER
CYL.
Trans.
De-
Clutch
MH0132
